Specifications
Inputs/outputs
Video input:
VIDEO IN connector (BNC type) (1)
Video outputs:
Loop-through output connector (BNC
type) (1)
VIDEO OUT connectors (BNC type) (8)
1 Vp-p, 75 Ω
Video characteristics
Frequency response:
5 MHz (-0.3 dB)
30 MHz (+0/-3 dB)
Input return loss:
40 dB or more (8 MHz or less)
K factor:
1% or less
DG:
1% or less
DP:
1% or less
Signal-to-noise ratio:
70 dB or more (using FLAT FIELD)
Cable length:
300 m max. (When using a Belden
8281, Fujikura 5C2V or equivalent
coaxial cable)
General
Power requirements:
+5 V DC: 250 mA (supplied from the
PFV-L Series Interface Unit)
Operating temperature:
5 to 40 °C (41 to 104 °F)
Operating humidity:
10 to 90% (no condensation)
Dimensions
Board (H x D):
267 x 77 mm
(10 5/8 x 3 1/8 inches)
Connector panel (W x H):
33 x 85 mm
(1 5/16 x 3 3/8 inches)
Mass
Board:
Approx. 110 g (4 oz)
Connector panel:
Approx. 110 g (4 oz)
Service parts: Extension board (Part
No.A-8322-598-A), Maintenance manual

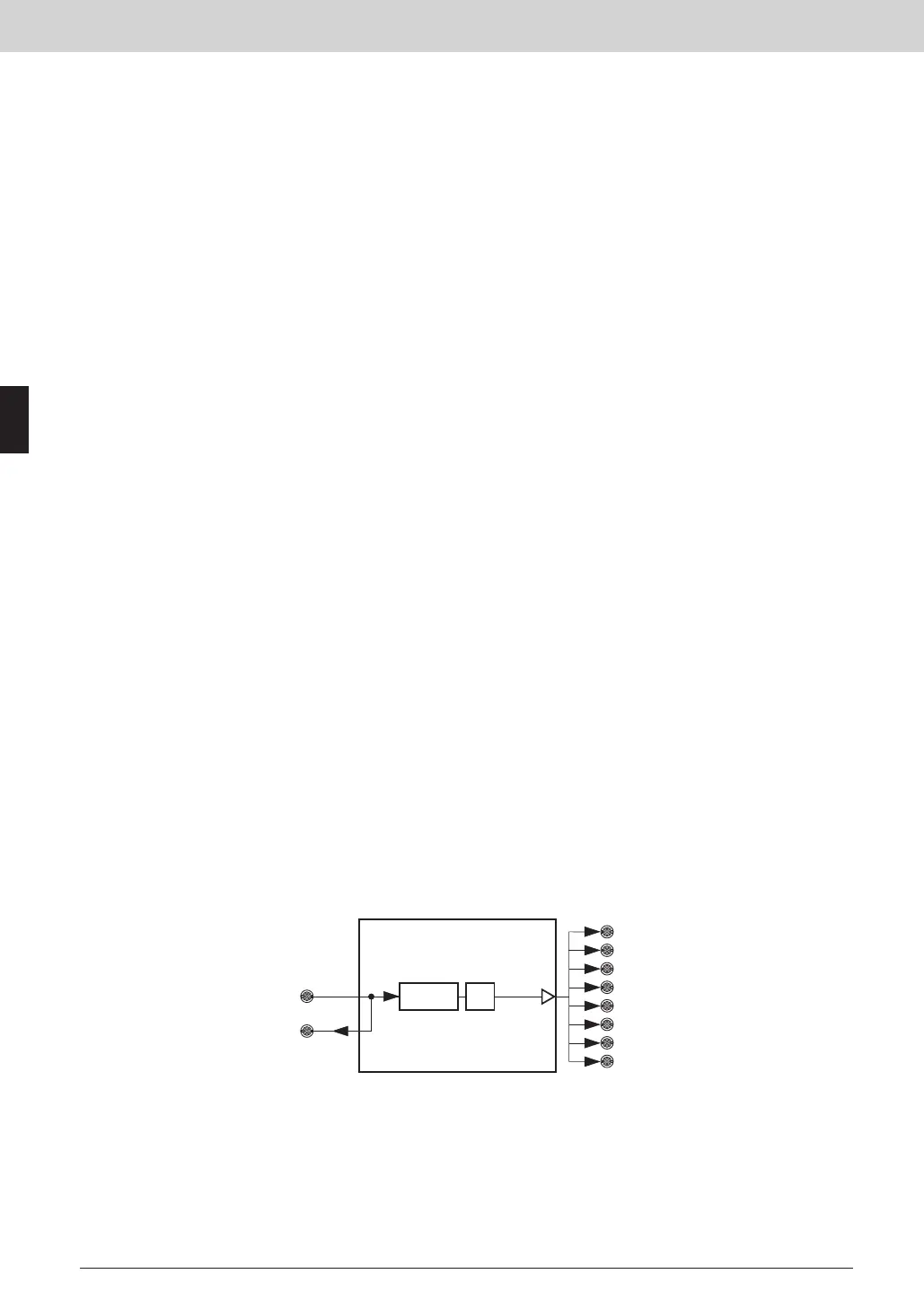

VIDEO IN
PASSIVE
LOOP-THROUGH
VIDEO OUT 1
VIDEO OUT 2
VIDEO OUT 3
VIDEO OUT 4
VIDEO OUT 5
VIDEO OUT 6
VIDEO OUT 7
VIDEO OUT 8
EQ
Differential
Input
90
Interface Processor L Series
Interface Processor L Series
