Specifications
Inputs/outputs
SDI IN connector:
BNC type (1)
Data transfer rate:
143 Mb/s to 1.485 Gb/s
Input signal:
Scrambled NRZI, 0.8 V p-p
Input return loss:
15 dB or more (5 MHz to 1.485 GHz)
Input cable length:
100 m (when a 5C-FB cable (Fujikura)
or Belden 1694 coaxial cable or the
equivalent is used)
Active loop-through out:
BNC Type (1)
Data transfer rate:
143 Mb/s to 1.485 Gb/s
Re-clock bit rate:
143 Mb/s, 177 Mb/s, 270 Mb/s, 360
Mb/s, 540 Mb/s, 1.485/1.001 Gb/s,
1.485 Gb/s
Output amplitude:
0.8 Vp-p 610%
Rise/fall time:
270 ps or less
Output return loss:
15 dB or more (5 MHz to 1.485 GHz)
OPTICAL OUT connector:
SC/PC Type (1)
Adaptive plug:
SC/PC Type Plug
Adaptive cable:
1310 nm single mode optical fiber
Optical device:
laser diode
Laser wave length:
1310 nm
Optical output level:
-11 dBm to -7.5 dBm
General
Power Requirements:
+12 V DC: 0.37 A
(supplied from PFV-SP Series Signal
Processing Unit)
Operating temperature:
5 to 40 °C (41 to 104 °F)
Storage temperature:
-20 to 60 °C (-4 to 140 °F)
Dimensions
Board (H x W):
112.2 x 388.3 mm
(4 1/2 x 15 3/8 inches)
Connector Panel (H x D x W):
130 x 152.5 x 19 mm
(5 1/8 x 6 1/8 x 3/4 inches)
Mass
Board:
Approx. 200 g (7 oz)
Connector Panel:
Approx. 130 g (5 oz)
Service parts: Maintenance manual
66

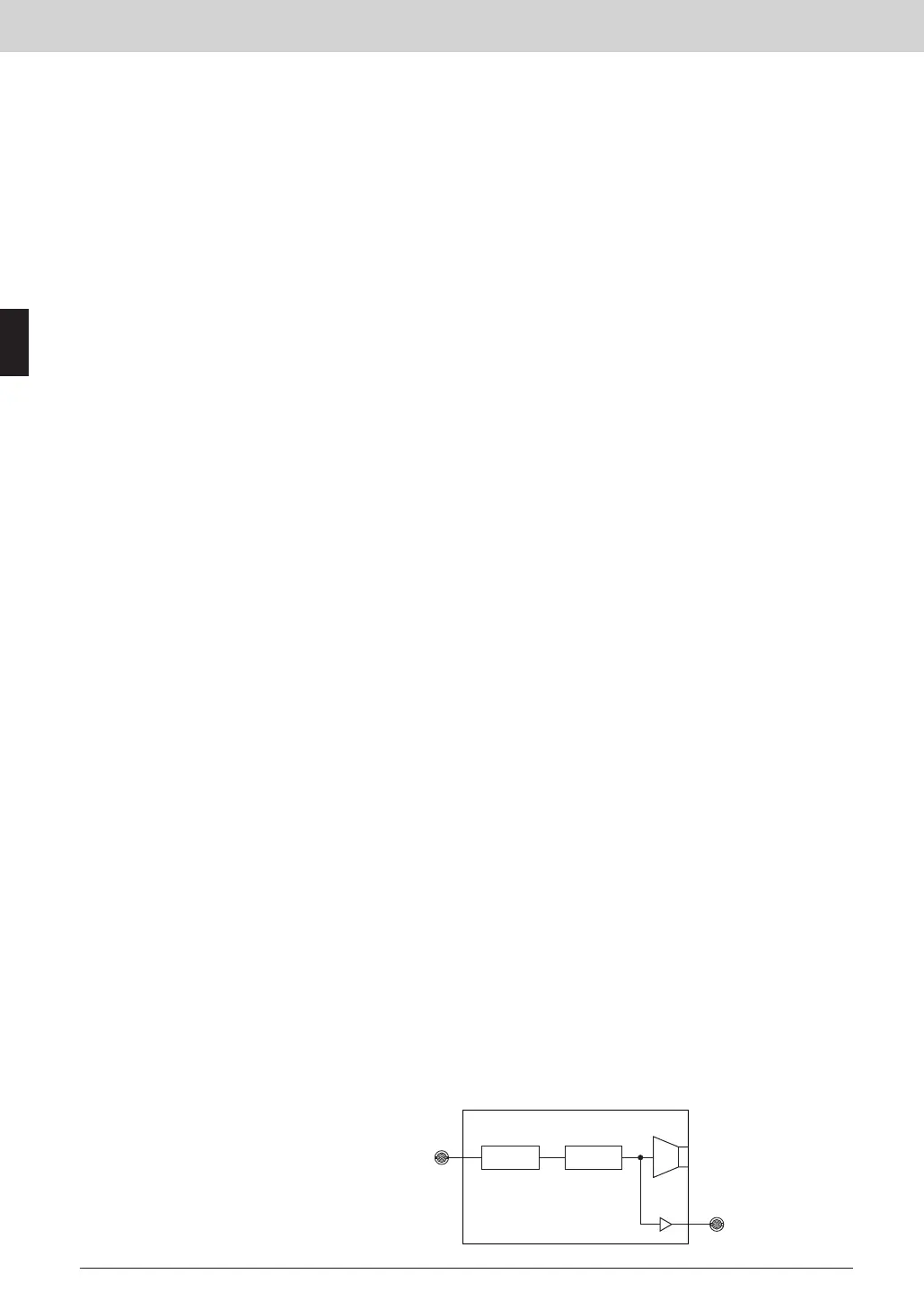

Interface Processor SP Series
Interface Processor SP Series
Equalizer
Reclocker
HD/SD SDI IN
ACTIVE LOOP-THROUGH
E/O OPTICAL OUT
