Specifications
Inputs/outputs
Serial digital input:
SDI IN connector (BNC type) (1)
Serial digital outputs:
SDI OUT connectors (BNC type) (8)
0.8 Vp-p, 75 Ω
Data transmission
Channel coding:
Scrambled NRZI
Transmission speed:
143 Mb/s (NTSC composite serial
digital)
177 Mb/s (PAL composite serial digital)
270 Mb/s (525/625 component serial
digital)
Amplitude:
0.8 Vp-p-10%
Cable length:
200 m max. (when using a Belden
8281, Fujikura 5C2V or equivalent
coaxial cable)
Digital input/output return loss:
-15 dB or more (5 MHz to 270 MHz)
Signal format:
NTSC/PAL composite or 525/625
component serial digital signal
conforming to SMPTE259M-A/ B/C
(ITU-R BT.601/BT.656); 143, 177, 270
Mb/s
General
Power requirements:
+5 V DC: 0.3 A
(Supplied from the PFV-L Series
Interface Unit)
Operating temperature:
5 to 40 °C (41 to 104 °F)
Operating humidity:
10 to 90% (no condensation)
Dimensions
Board (H x D):
77 x 267 mm
(10 5/8 x 3 1/8 inches)
Connector panel (W x H):
33 x 85 mm
(1 5/16 x 3 3/8 inches)
Mass
Board
Approx. 110 g (4 oz)
Connector panel
Approx. 100 g (4 oz)
Service parts: Extension board (Part
No.A-8322-598-A), Maintenance manual

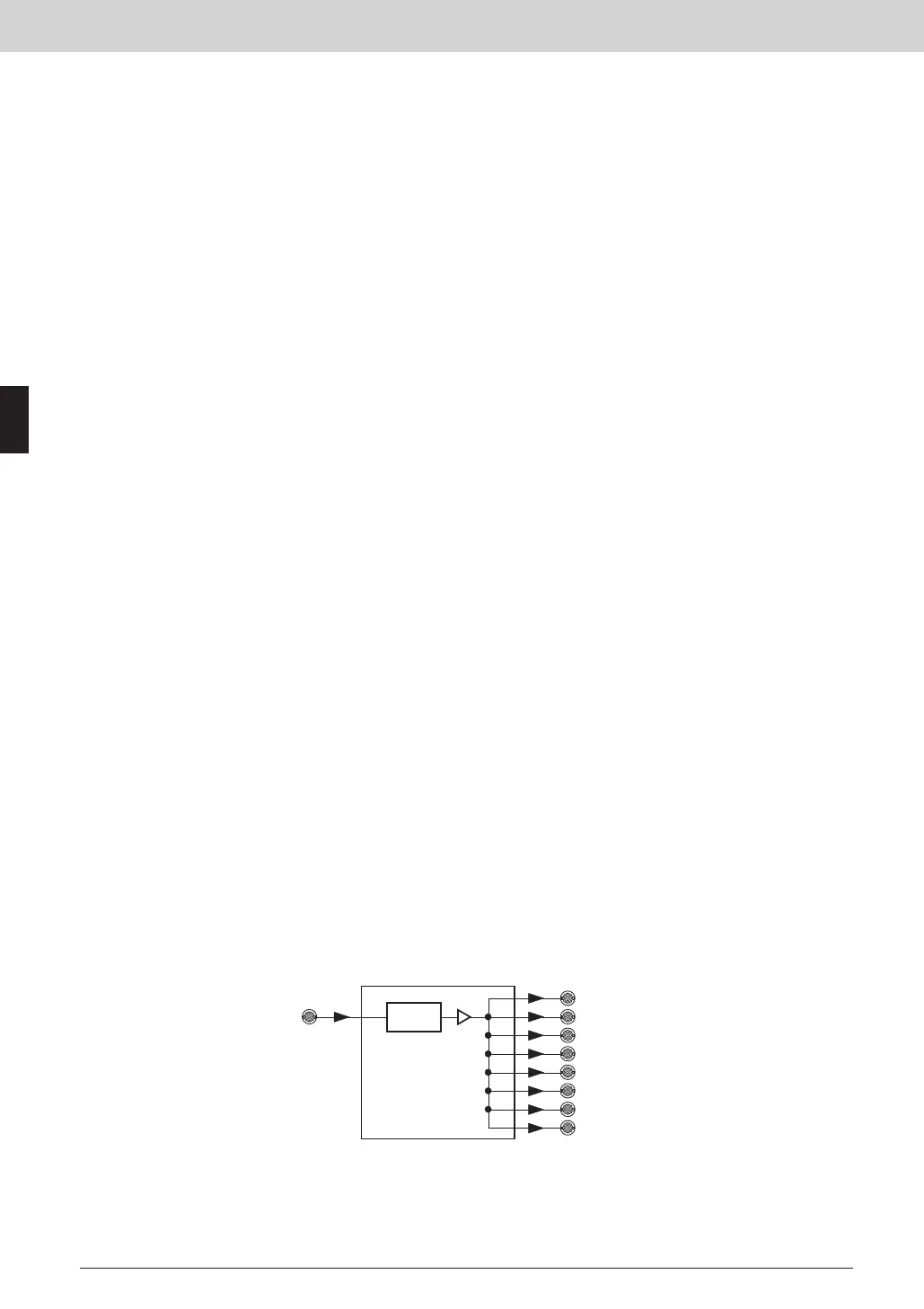

RE-
CLOCKING
SDI IN
NTSC/PAL COMPOSITE DIGITAL or
525/625 COMPONENT DIGITAL
SDI OUT x 8
NTSC/PAL COMPOSITE DIGITAL or
525/625 COMPONENT DIGITAL
