MZC-88 Installation Instructions Page 99
COMMAND PROPERTIES (IR)
This Properties Menu allows observation and adjustments to the parameters of learned or imported IR codes as follows:
• Command Protocol Name & Data Displays
• Burst Width Adjustments
• Min. Output Time (Sec.)
• Frequency (25k-470kHz, IR Carrier) Display & Adjustment
• Graphical IR Code Displays - Original & Preview
• Capturing and Testing of IR Codes
• Repeating Data Frames
• Entry of Custom Data Codes, in Hex or Decimal
Note: All of the above functions apply to learned or imported IR code (code that has the blue letters CPY just to the left of
the code name in the command list. Refer to Figure 108). Code in the existing EZ-Tools Command Library (sans CPY letters)
can be adjusted and tested for Min. Output Time (Sec.) only!
To access the Command Properties Menu, right click the desired command in the CMD Library under Brands in the
command list. Refer to Figure 108. Then left click Command Properties in the pop-up.

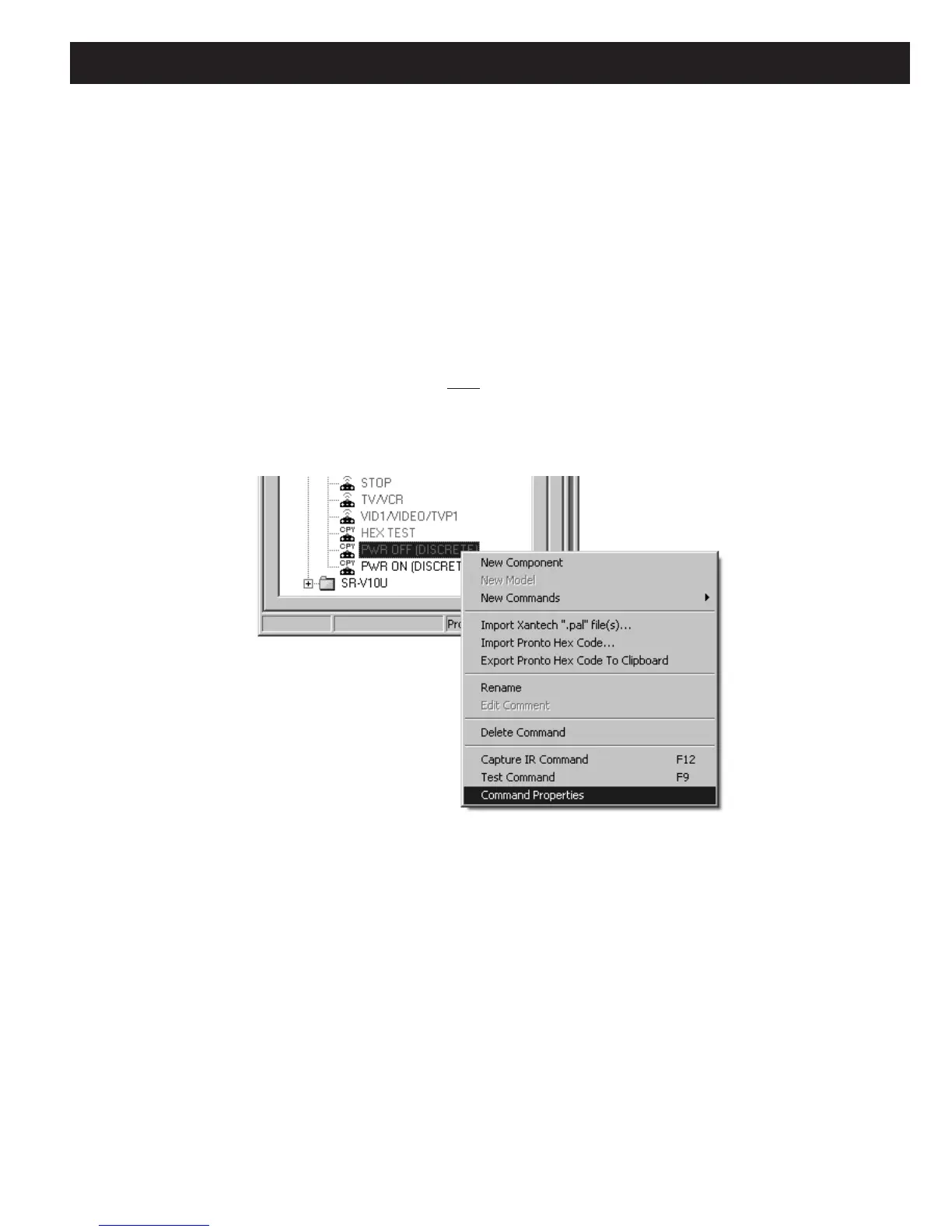

Figure 108
Selecting Command Properties
A discussion of each of these command functions follows:
COMMAND PROTOCOL & DATA
When
Command Properties is opened, it will immediately compare the code data of the selected learned or imported IR
command against several known IR command protocols within EZ-Tools. The result will be displayed in the Protocol and
Data fields. If the code does not conform to any of the known protocols, “Unknown/Not Recognized” will be displayed.
Refer to Figure 109.
In the case of unrecognized code, the only modifications that can be made are adjustments to the Min. Output Time,
Carrier Frequency, and in some cases, Burst Widths.
To Next Page
