Page 52 MZC-88 Installation Instructions
PUNCHED COMMANDS
1. The Punch command allows common commands such as Tone, Volume Up/Down, etc., to be instantly Punched
Through to all Source (bank) selections. This will saves a great deal of programming time and helps reduce program-
ming errors. Keep in mind however, that commands such as Stop and Play will be different for each Source (bank) and
should not be punched. Also, if using the MZC88DEF1.etp default project that comes installed on the MZC-88 (and in
EZ-Tools), the needed punch throughs have already been done for the Tone, Volume Up/Down, etc. commands.
2. If a Punch Through is necessary, say for volume, begin by left clicking any one of the Source buttons. Place Volume Up
and Down commands on the Vol Up and Vol Down keys. For the MZC-88, these would be the internal Zone 1 Volume
Up and Zone 1 Volume Down commands from the MZC-88 CMDs Tab. Left click the Vol UP key so that it is highlighted
blue.
3. Left click the MZC-88 CMDs tab and then open the “Audio Level Commands” List.
4. Double left click the Zone 1 Volume Up command from the list (if programming Zone 1). The command will appear
in the Command List in the Button Properties Window. (Refer to Figure 37)
5. To Punch, right click the Vol Up button and left click “Punch Key’s Commands” and then “Yes” in the pop-up. (Refer to
Figure 37) Repeat for Vol Down. The commands under these keys will now appear regardless of the Source selected (all
banks).
6. Repeat these steps for any other commands that require Punch Through.

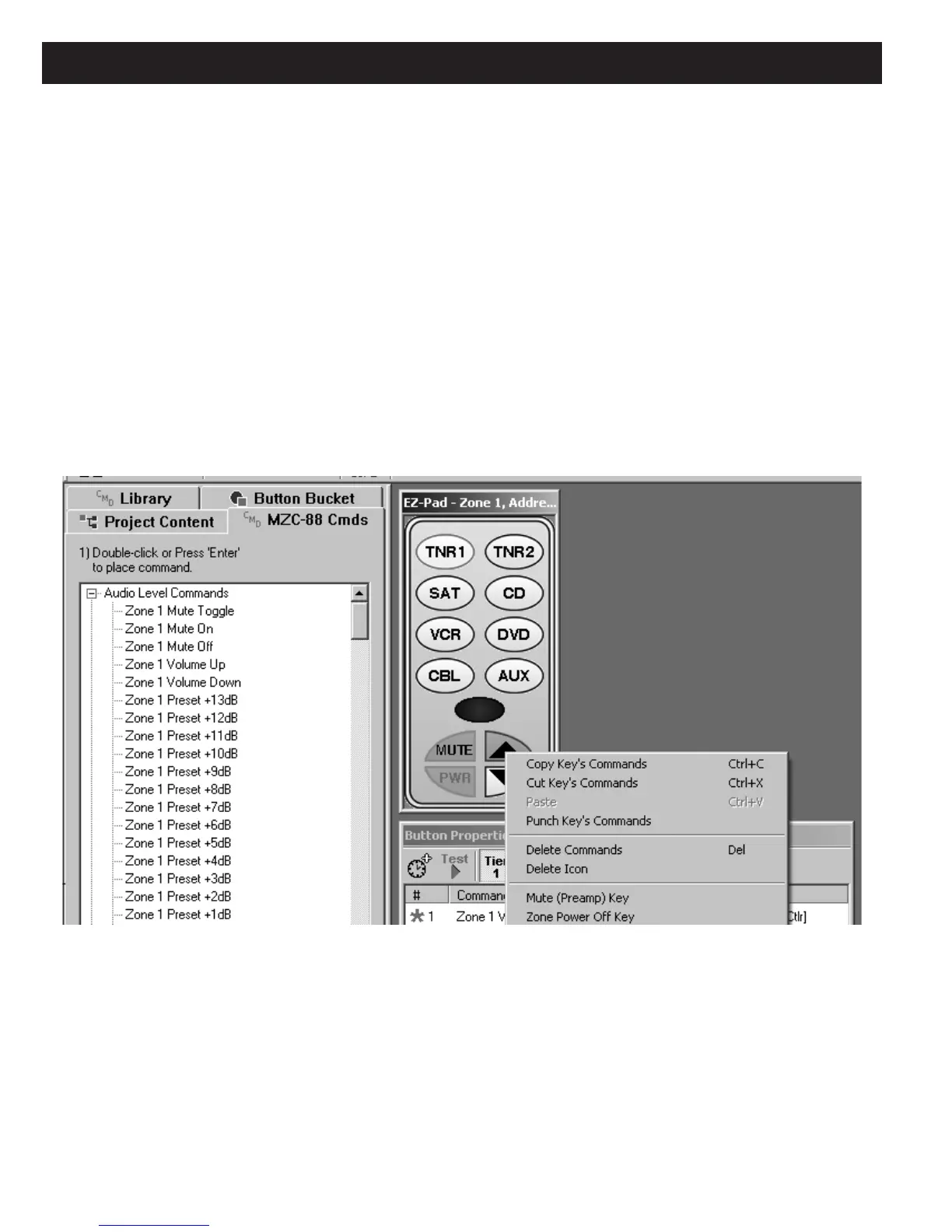

Figure 37
Punch Programming
