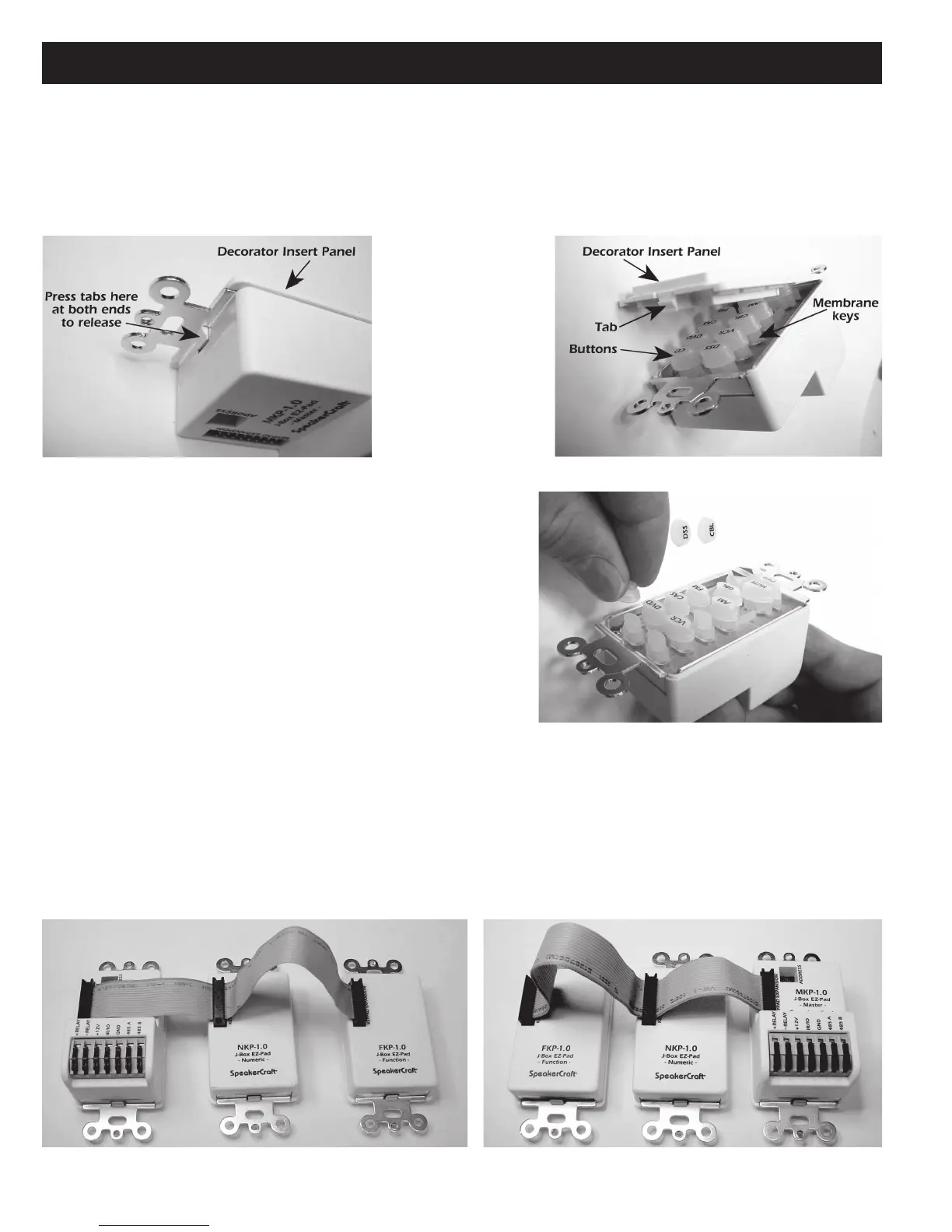

Page 28 MZC-88 Installation Instructions
EZ-PAD CONFIGURATION
1. As received from the factory, the version MKP-8.1 EZ-Pads have a preinstalled set of buttons that match the default
system that is pre-programmed into the MZC-88 (“MZC88DEF1.etp” in EZ-Tools). The default configuration may not
match the system being installed. To change the source and function button arrangement, release the tabs,
Figure
11, and remove the decorator insert panel, exposing the key buttons, Figure 12.
Figure 12
Remove Decorator Insert Panel
Figure 11
Release Tab
2. Starting with the Zone 1 MKP-8.1 (Master Keypad), and using
the extra buttons supplied, if needed, move and place the
source and function buttons in an arrangement matching the
system being installed. (Refer to Figure 13) When finished,
replace the decorator insert panel over the buttons, being care
-
ful to see that the buttons align correctly with the panel open
-
ings. Press the panel down until the tabs “snap” into place.
3. Repeat these steps for each of the other zone Master Keypads.
Note that each zone can have its own unique configuration,
however, it is best to keep them as similar as possible to simplify
system programming and operation.
4. Repeat steps 1-3 to configure the buttons on the Numeric and
Function keypads (not included) as needed.
NOTE: The Numeric and Function keypads will not work on their own. They must be connected to a Master Keypad
using the 3-Connector Ribbon Cable included with each NKP-1.0 and FKP-1.0. The cable is symmetrical so it can be
connected with the red striped side up or down, to best fit the configuration. Figure 14 shows it connected so that
the MKP Master Keypad will be to the right of the NPK Numeric and FKP Function keypads when mounted, whereas
Figure 15 places the MKP to the left.
Figure 13
Moving and Placing Buttons
Figure 14
Ribbon Cable – MKP Right
Figure 15
Ribbon Cable – MKP Left
