Page 84 MZC-88 Installation Instructions
ZONE EXPANSION
Multiple MZC-88’s can be linked together to provide up to 32 zones (4 MZC-88’s) for large installations. Refer to Section:
Expanded Systems for information regarding installation considerations, connections and configuration.
PROGRAMMING FOR ZONE EXPANSION
The programming for the MZC-88 Master and Slave units is done in EZ-Tools as follows:
1. Before programming, be sure to have the latest version of EZTools, which can be found at www.speakercraft.com
2. Launch EZ-Tools and create a Filename for a project in the normal manner (i.e., JonesHomeExpansion.etp). This could be
a project file previously programmed for just 8 Zones and the Jones’ have decided to add more zones in an expanded
system.

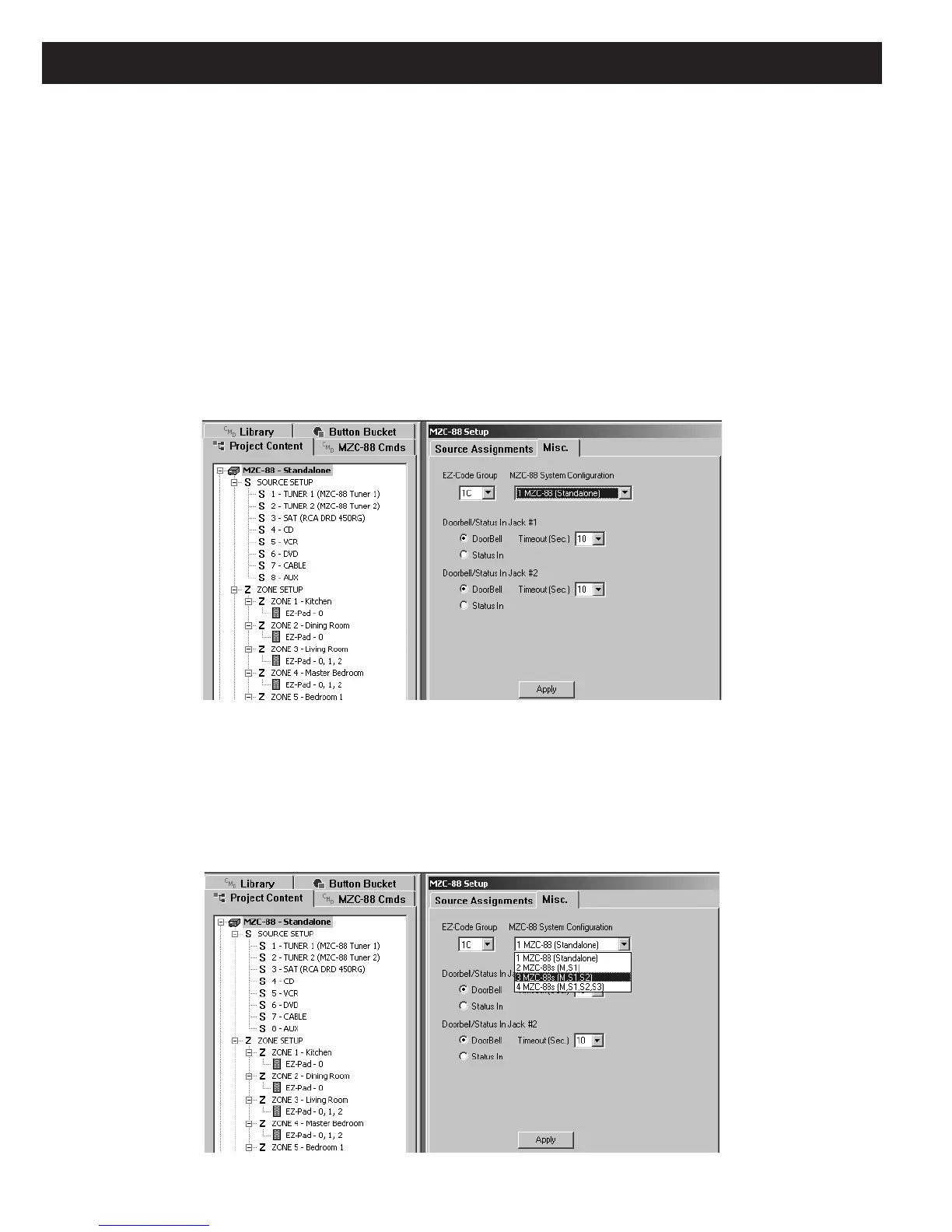

3. Under Project Content, click MZC-88, then Misc. in the MZC-88 Setup pop up. Refer to Figure 79.
Figure 79
Select MZC-88 Standalone
4. Under MZC-88 System Configuration, select 1 MZC-88 (Standalone). Click Apply.
5. At this point, program all 8 Zones of this “Standalone” MZC-88 in the normal manner. It will become the “Master” MZC-88
later.
6. When satisfied with all programming, under Project Content, click MZC-88 - Standalone, then Misc. in the pop up.
Refer to Figure 80.
Figure 80
Select Master/Slave Configuration
To Next Page
