Page 86 MZC-88 Installation Instructions
PRINTING PROJECTS
Projects can be printed after completion of a system installation to keep with a client’s files, or a project can be printed at any
time during development to more easily review where commands are placed. For efficient record keeping, enter the client’s
and installation company’s information so that it prints out with the project. Proceed as follows:
Installation Information
In the Menu Bar, left click the Project menu, and then select and left click “Installation Information” in the drop-down.
Type in the relevant information and click OK. Refer to Figure 82.

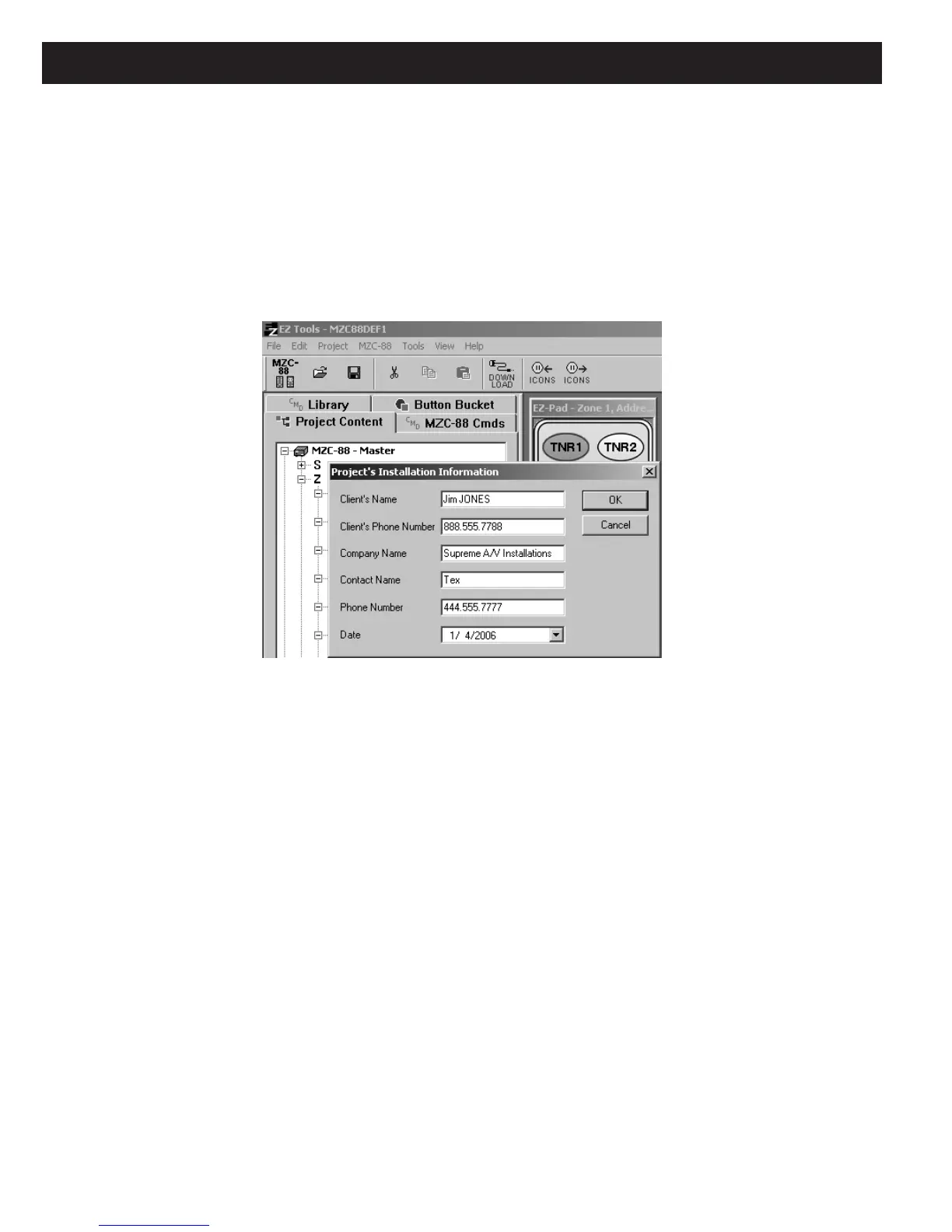

Figure 82
Entering Project Installation Information
PRINTING THE PROJECT
From the File menu in EZ-Tools, select Print. Set up printer properties in the usual manner and click OK. The project will print
out showing information in the following sequence:
1. Installation Information, including the Filename of the project.
2. MZC-88 Properties; a list of Source assignments and the EZ-Code Group number.
Next are the Zone Properties, followed by Zone Keypad Layout displays. Zone 1 is shown first with it’s Properties, followed
by illustrations of each keypad button and the command descriptions next to them. See
Figure 83 for a typical printout of
the first page.
