MZC-88 Installation Instructions Page 61
PROGRAMMING LEARNING REMOTES WITH EZ-CODE SYSTEM COMMANDS
The EZ-Pad system has a unique capability whereby commands programmed into a keypad project can be executed by a
learning remote control. Special SpeakerCraft EZ-Code key commands can be taught to such remotes, which, when executed
from the remote, will control the Audio/Video system as if the keys on the EZ-Pads themselves were being pressed.
These EZ-Code commands are actually single commands that trigger the actual IR command(s) programmed under the related
EZ-Pad key. This is a decided advantage in that long macros under EZ-Pad keys do not have to be stored and executed by the
handheld remote.
When programmed, the EZ-Code commands from the remote, in IR form, are picked up by the IR Receiver in the MKP-8.1
Keypad, or a separate IR Receiver (i.e., IRC-4.0) in the room connected to the same IR bus as the keypad (+12V, IR IN, GND).
Sources selected by the remote with EZ-Code commands will be tracked and indicated automatically on the keypad’s lighted
Source buttons. (i.e. select CD with the remote, and the CD Source key on the EZ-Pad will illuminate Red.)
PROGRAMMING PROCEDURE
First, complete all MZC-88 system programming. Once that is done, plug the 3.5mm Plug Transfer Cable into the
CONTROL PORT of the LTM-1.0 Learn/Test Module as shown in Figure 49. Then proceed as follows:

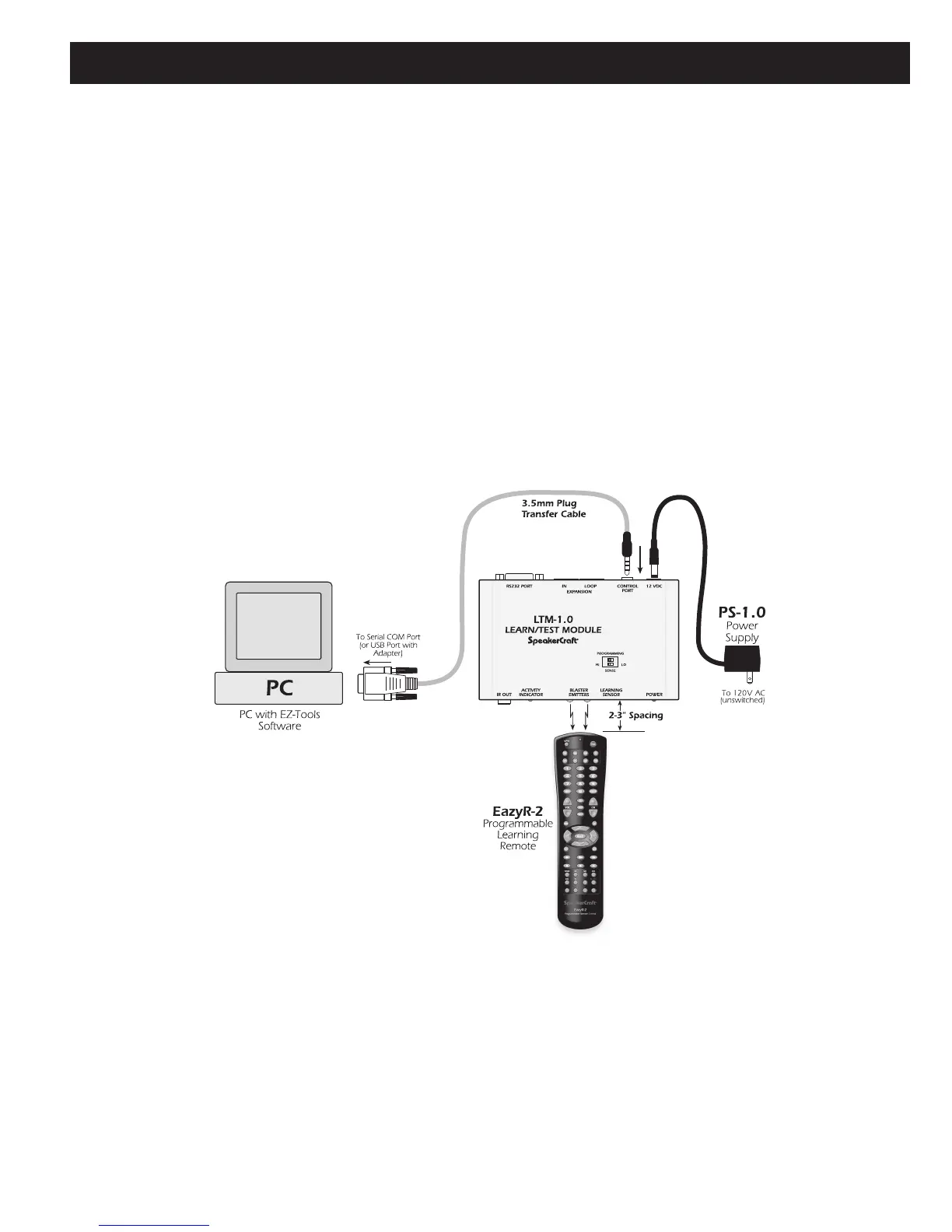

Figure 49
Programming Learning Remotes
1. Launch the MZC-88 project in EZ-Tools. Left click a Zone, such as Zone 2 under Project Content and left click a Source
key (i.e. SAT).
2. Point the learning remote directly at the BLASTER EMITTERS on the LTM-1.0 (spaced 2” to 3") and activate the learn
mode. A SpeakerCraft EazyR-2 Learning Remote will be used for example in this exercise.
3. To place the EazyR-2 in
learn mode, first press the desired Source key on the EazyR-2 (i.e. SAT).
4. Press and hold the SETUP key until the red LED flashes twice, then release.
