MZC-88 Installation Instructions Page 83
5. Double left click a POWER OFF IR command from the CMD Library for the same IR controlled amplifier, placing it on
the Command List under Zone 1 Turning OFF.
Now, when Zone 1 is turned ON (by pressing any Source key), the external amplifier will turn ON and play at the –6dB level
specified. When Zone 1 is turned OFF, the external amplifier will turn OFF.
Repeat these steps for other zones as necessary.
DOORBELL TRIGGERS #1 AND #2
Refer to Doorbell/Page Programming section for details.
PARTY MODE START-UP
Internal MZC-88 commands (IR Commands not permitted) placed here will be executed only when a Source button is pressed
and held for longer than 2 seconds for Whole House Party Mode. This is useful, for instance, to have all of the Zones in
Party Mode to come up to the same volume level or to different levels, if desired. Other MZC-88 internal commands could be
placed here too, such as a CONTACT CLOSURE for a lift, projection screen, drapes, lights, etc. To program preset levels, proceed
as follows:
1. To access, click EVENTS SETUP under the Project Content tab.
2. Click Party Mode Start-Up in the Events Setup pop-up.
3. From the Audio Level Commands under the MZC-88 CMDs tab, double click Zone 1 Preset +2dB (or any other Preset
value) to place it on the Command list. Refer to Figure 78.

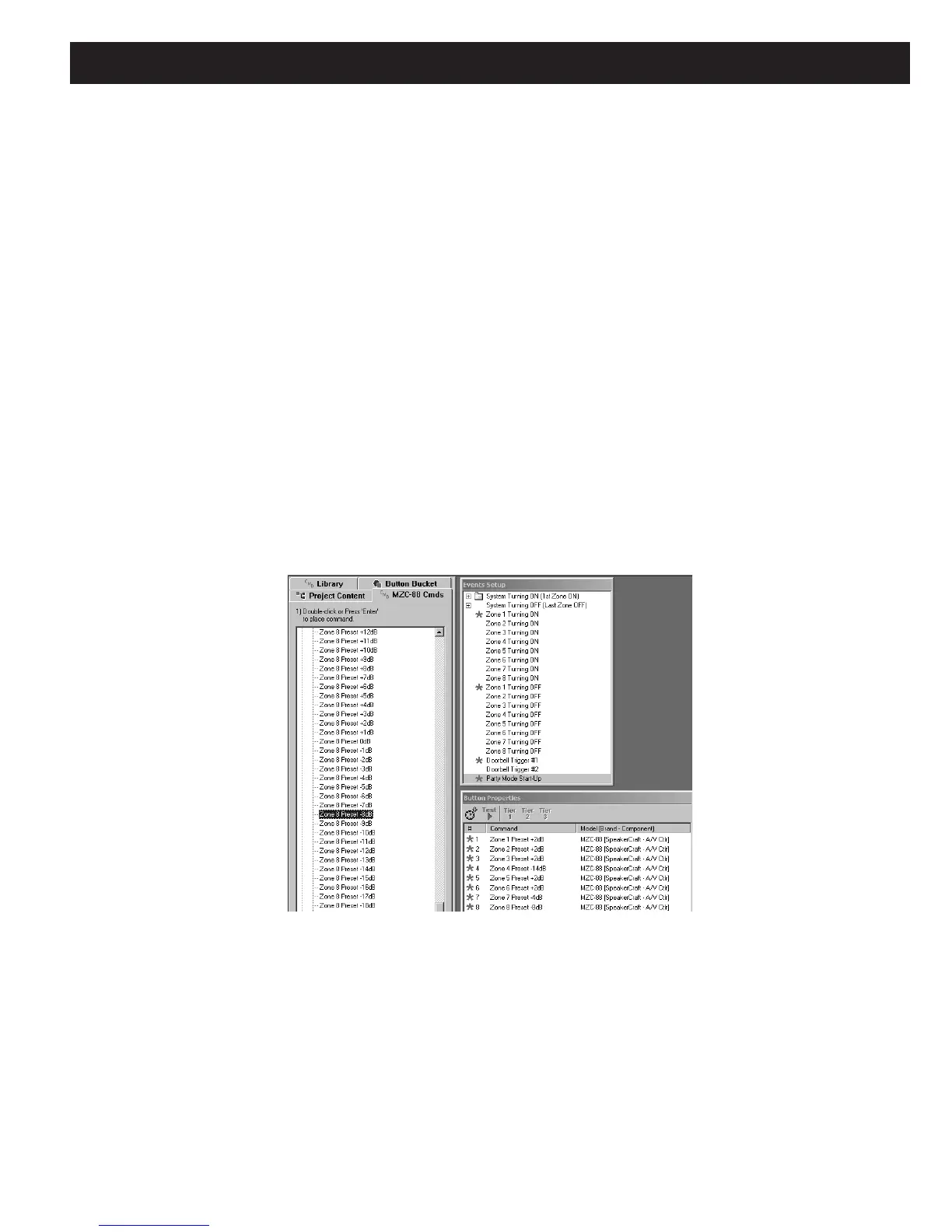

Figure 78
Placing Zone Preset Level Commands for Party Mode Start-Up
1. Repeat step 3 for each of the other Zone Presets as desired.
Now, when pressing a Source Button for longer than 2 seconds to initiate Party Mode, all zones will come on at the audio
volume levels just programmed.
NOTE: It may be necessary to download, test and repeat the above steps several times to set the “just right” volume levels in
all zones.
