MZC-88 Installation Instructions Page 103

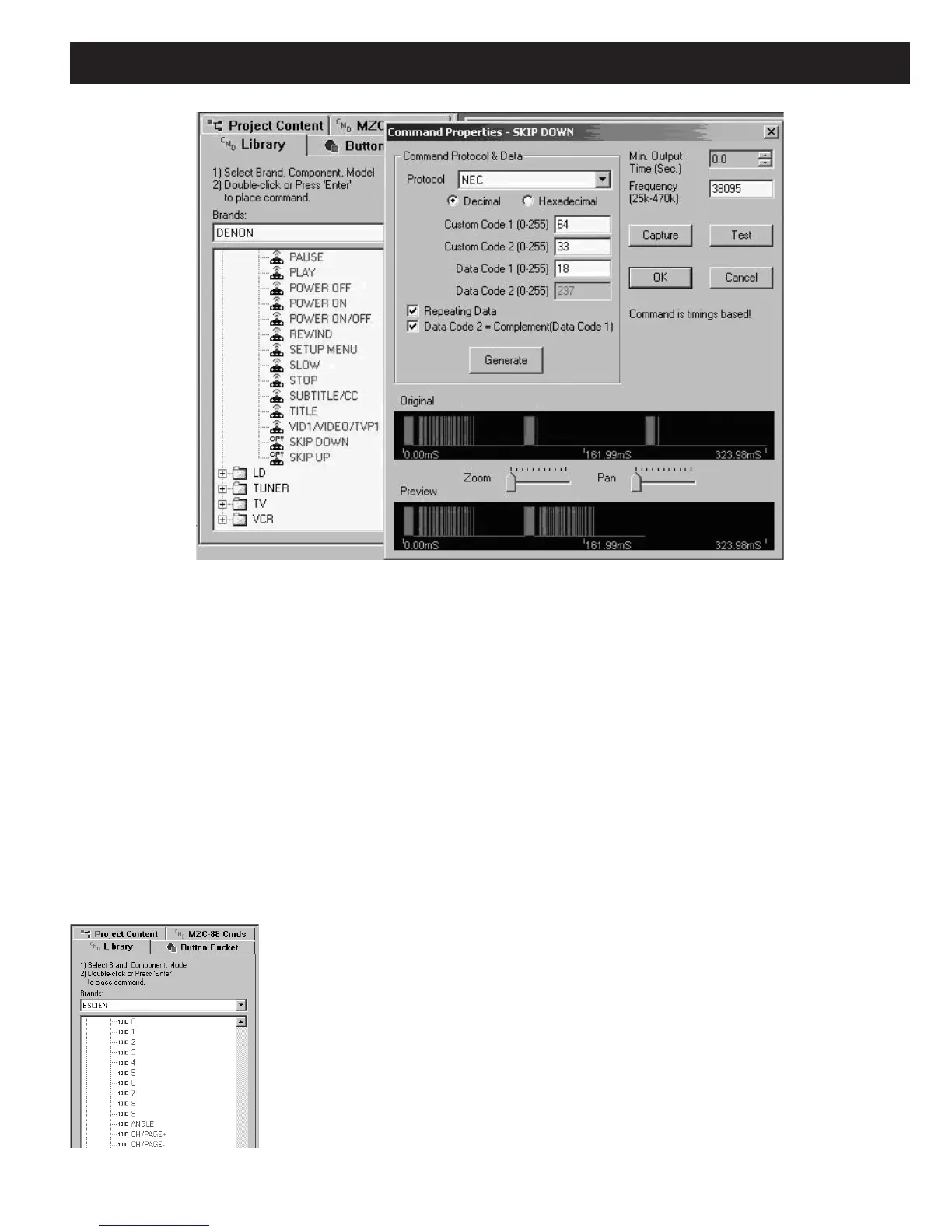

Figure 113
Repeating the Data Frame For Better Ramping
CUSTOM CODE & DATA CODE FIELDS
Data can be entered into these fields for advanced use. Refer to Figure 113. With access to a manufacturer’s Code Data, such
data can be entered in either Decimal or Hex form. With advanced programming knowledge, trial codes can be entered to
“discover” desired control actions.
These capabilities are useful to create custom codes for special functions that are not included on the set of buttons of a hand
-
held remote control, such as discrete power ON/OFF commands, direct source selection commands, etc.
RS232 COMMANDS
In addition to IR Commands and the internal MZC-88 Commands, RS232 Commands can be programmed to EZ-Pad keys
as well. RS232 commands can be output from the MZC-88 via the RS232 Data I/O Port on the MZC-88 Rear Panel. RS232
commands can be programmed as individual commands under a key or can be included as part of a macro (sequence) from
a single key press. There are some RS232 commands already programmed into the CMD Library and are designated with a
“1010” icon. Refer to Figure 114.
Figure 114
Command Library RS232 Icon
PROGRAMMING RS232 COMMANDS TO EZ-PADS
RS232 Commands can be programmed to EZ-Pad Keys using a similar process to adding IR
Commands or MZC-88 Internal Commands. To program a key with a RS232 Command:
1. With EZ-Tools running and the current project open, left click the
Project Content Tab.
2. Left click the EZ-Pad icon for the zone keypad to be programmed. (i.e. Zone 1)
3. Left click the CMD Library Tab.
4. Select the Brand from the pull-down. (i.e. Escient)
5. Double left click on the Component Folder (i.e. Music Server) to expand the Model
List.
To Next Page
