Page 10 MZC-88 Installation Instructions
FEATURE DESCRIPTIONS
MZC-88 FRONT PANEL
The MZC-88 is an 8-Zone, 8-Source A/V Amplifier Controller. It serves as the “brains” of the entire keypad system and provides
audio/video switching and control for six external sources and two on-board AM/FM Tuners. Sixteen 50W/channel digital
audio power amplifiers provide clean, powerful audio for up to eight zones.
The Front Panel features two large displays, one for each of the on-board AM/FM Tuners. All tuner programming is done with
the front panel tuner function buttons. Zone ON/OFF Status is also displayed on the front panel to show system activity.
The Rear Panel is neatly laid out to provide clear access for all system control, audio, video, paging and trigger connections.
System Programming can be done from connections on either the Front or Rear Panels. An IR Capture Eye is provided on the
Front Panel for on-site learning of IR codes not included in the IR Code Library.
1. ZONE STATUS LED INDICATORS AND LABELS – Eight, green LEDs, illuminate to show active zones and turn off
when zones are off. Indented spaces accept adhesive backed labels for zone/room identification. A sheet of descriptive
labels, typical of room or area names used in homes, is included.
2. RDS BUTTON — Enables/disables Tuner 1 Radio Data System information. RDS displays station frequency, call letters,
broadcast genre and time.
3. MN/ST BUTTON — Toggles Tuner 1 FM stereo/mono modes. Mono can be useful for cleaning up background noise
on hard to tune channels.
4.
AM/FM BUTTON — Toggles Tuner 1 AM and FM bands.
5. ZONE BUTTON — Selects Tuner 1 Zone for programming and selecting Presets.
6. TUN +/- — Changes Tuner 1 frequency UP/DOWN when pressed.

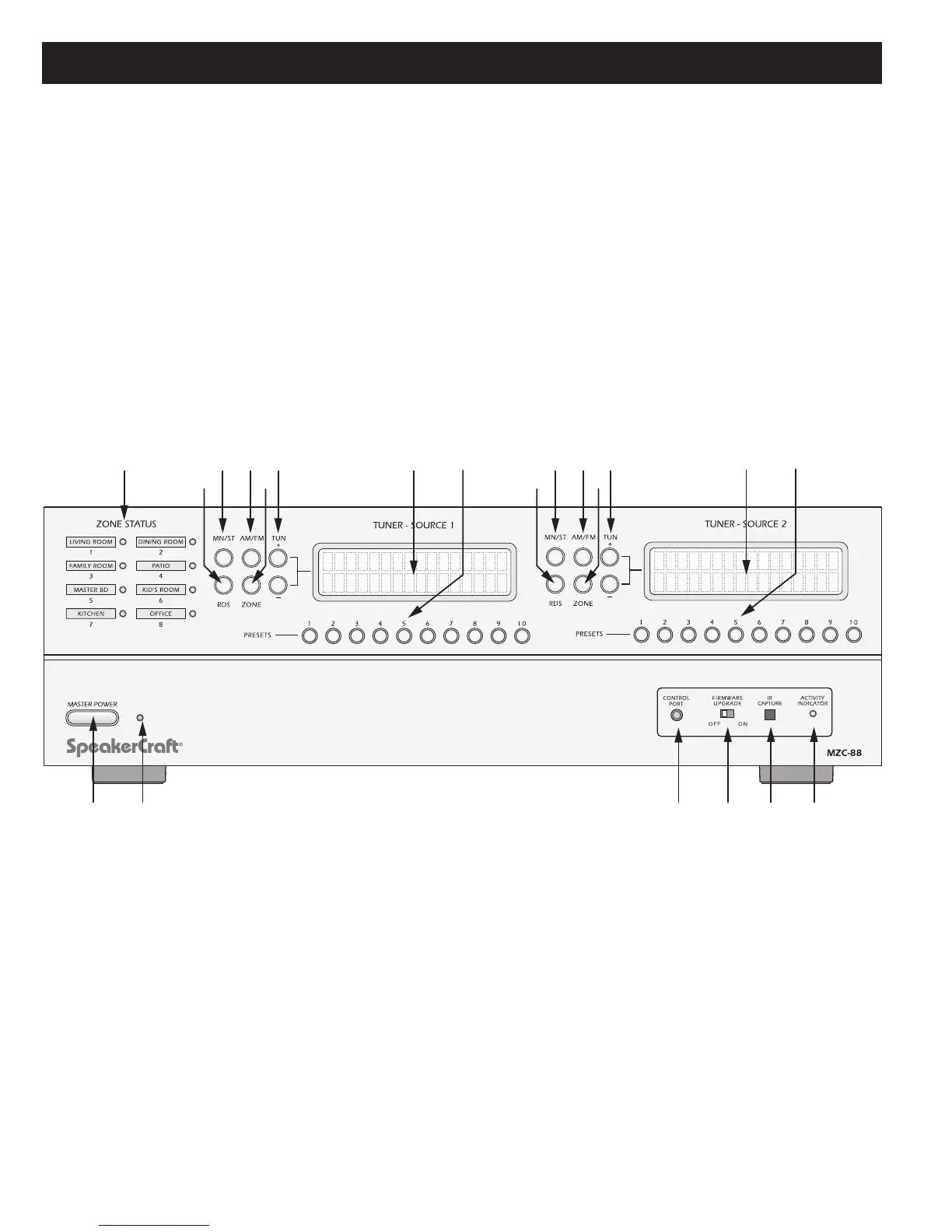

Figure 3
MZC-88 Front Panel Features
1 3 4 6 7 8 10
11
12
14
15
16 17 18 19 20 21
2 5 9
13
