Shanghai STEP Electric Corporation
Chapter 5 Operator
96

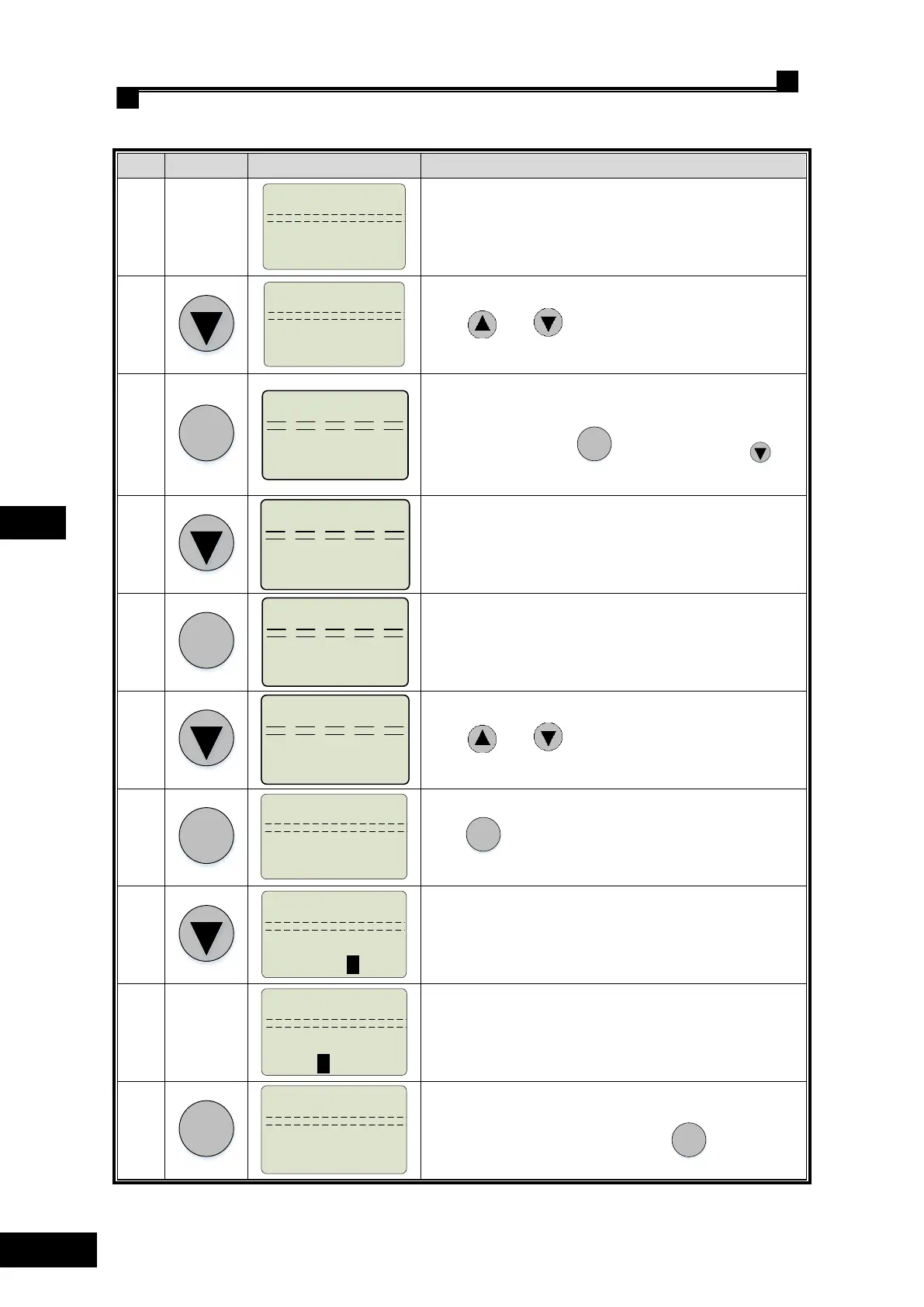

Table 5.16 Upload parameters to mainboard in intelligentize mode
Step
Key
Display on operator
Remarks
-
——
Para. Copy
Para. List
Upload tp MB
1
Para. Copy
Upload to MB
Dnload to OP
Press and to select upper or lower item
2
Eenter
Upload to MB
Folder
List1
Check folder
Folder name is the folder just operated
If need to modify press
Eenter
to selector else press enter
next step
3
Para. List
Document
600_1000.txt
If the folder is not changedname is the folders name just
operated
4
Eenter
Para. List
document
600_1000.txt
Select document
5
Para. List
document
1200_750.txt
Press and to select upper or lower document
6
Eenter
Para. List
document
1200_750.txt
Press
Eenter
to affirm
7
Upload to MB
0
Pls. Input: 5678
Please input check code 5678
8
5
678
Upload to MB
Pls. Input: 5678
input check code 5678 correctly
9
Eenter
Upload to MB
Uploading...
F 20
Begin automatically uploadinguntil all the parameter in the list
uploading done then display ―done‖ press
ESC
to exit
