Instruction Manual for AS380 Series Elevator Integrated Drive Controller
Chapter 6 Introduction to the supporting products
6.10.4.3 Setup of Parameters on Service Layer Setting Tab

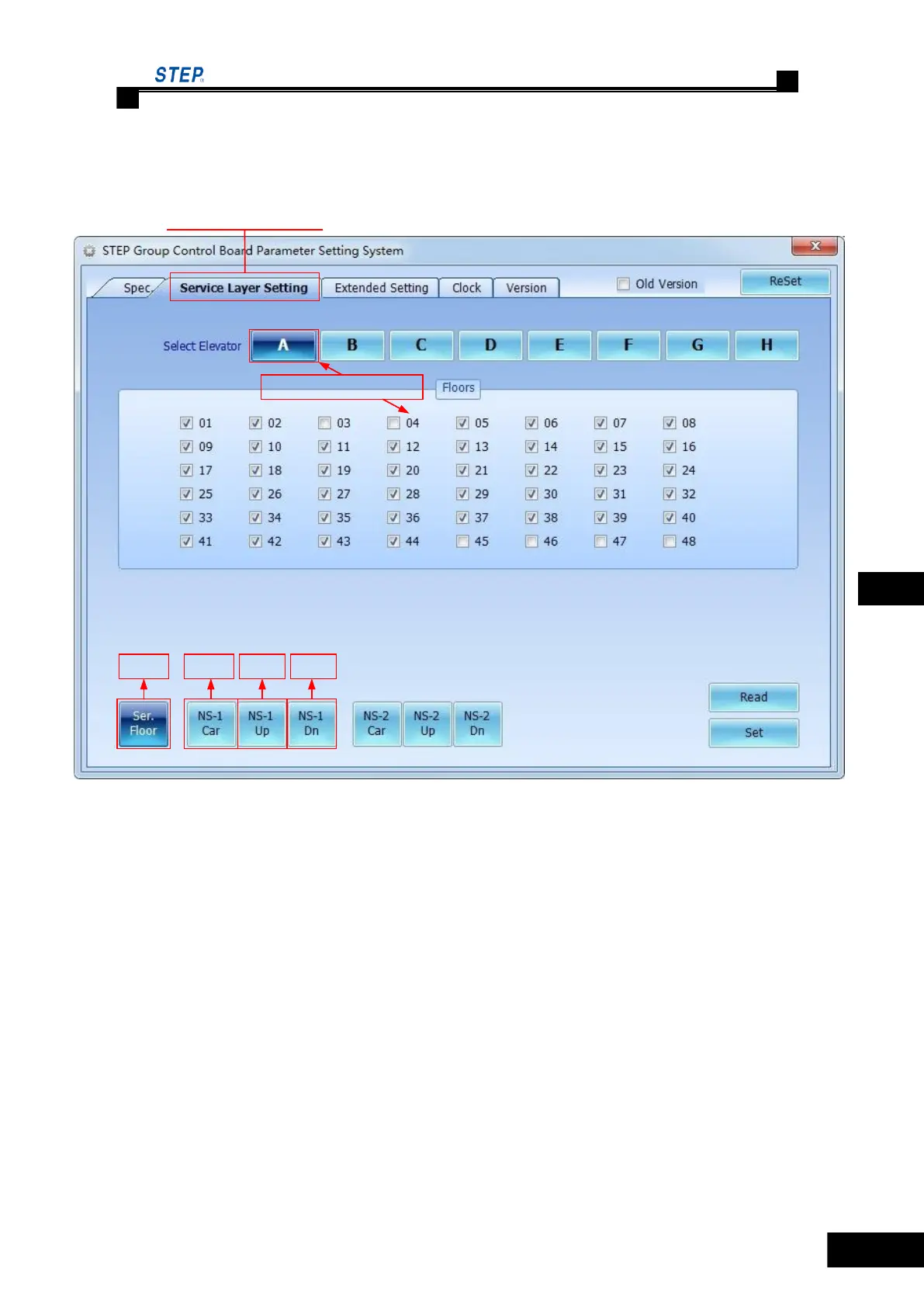

Fig. 6.47 Service layer setting tab
Click ―Service layer setting‖ tab, and enter the detailed setup screen for service floor
parameters. Specific parameters and button functions are introduced as follows:
1) Select Elevator: Choose one elevator, e.g., elevator ―A‖.
2) Floors: As for the elevator chosen in item 1, choose the floor corresponding to service or
scheme.
3) Service Floor (Ser. Floor): As for any elevator in group, set the service floor. Difference
from the following items 4~9: the setting of this item is always active independently from other
starting conditions; moreover, it acts on instruction, up call and down call simultaneously.
4) Scheme 1 (NS-1 Car): Set up the landings of each single elevator which could receive the
instruction service in scheme 1.
5) Scheme 1 Up Call (NS-1 Up): Set up the landings of each single elevator which could
receive the up call service in scheme 1.
6) Scheme 1 Down Call (NS-1 Down): Set up the landings of each single elevator which
could receive the down call service in scheme 1. A common starting condition for setups in items
4~6 abovementioned in this section content: (1) If ―Time controlled service floor scheme 1‖ in the
Click this tab, enter detailed
setup of service floor
After selecting one single
elevator, check the service floor
Service
floors
Scheme 1
instruction
Scheme 1
up call
Scheme 1
down call
To Next Page
