9) Read: Read the parameters set and saved last time in this window from the group control
board.
10) Set: Save the currently set parameters into the group control board in this window. If any
parameter is modified, it is necessary to click this button to transfer the set parameters to the group
control board for storage, and then parameter setup finishes.
Note1:If only ON is set in item 1 above, the settings in items 2~8 above may be active;
Note2: If only ―Dispersed waiting‖ in item 8 is set to ON in the window shown in 10.4.1, the
settings in items 2~6 above may be active;
Note3: If only ―Homing‖ in item 10 is set to ON in the window shown in 10.4.1, the settings
in items 7 and 8 above may be active.
6.10.4.5 Parameter Setup on Clock Tab

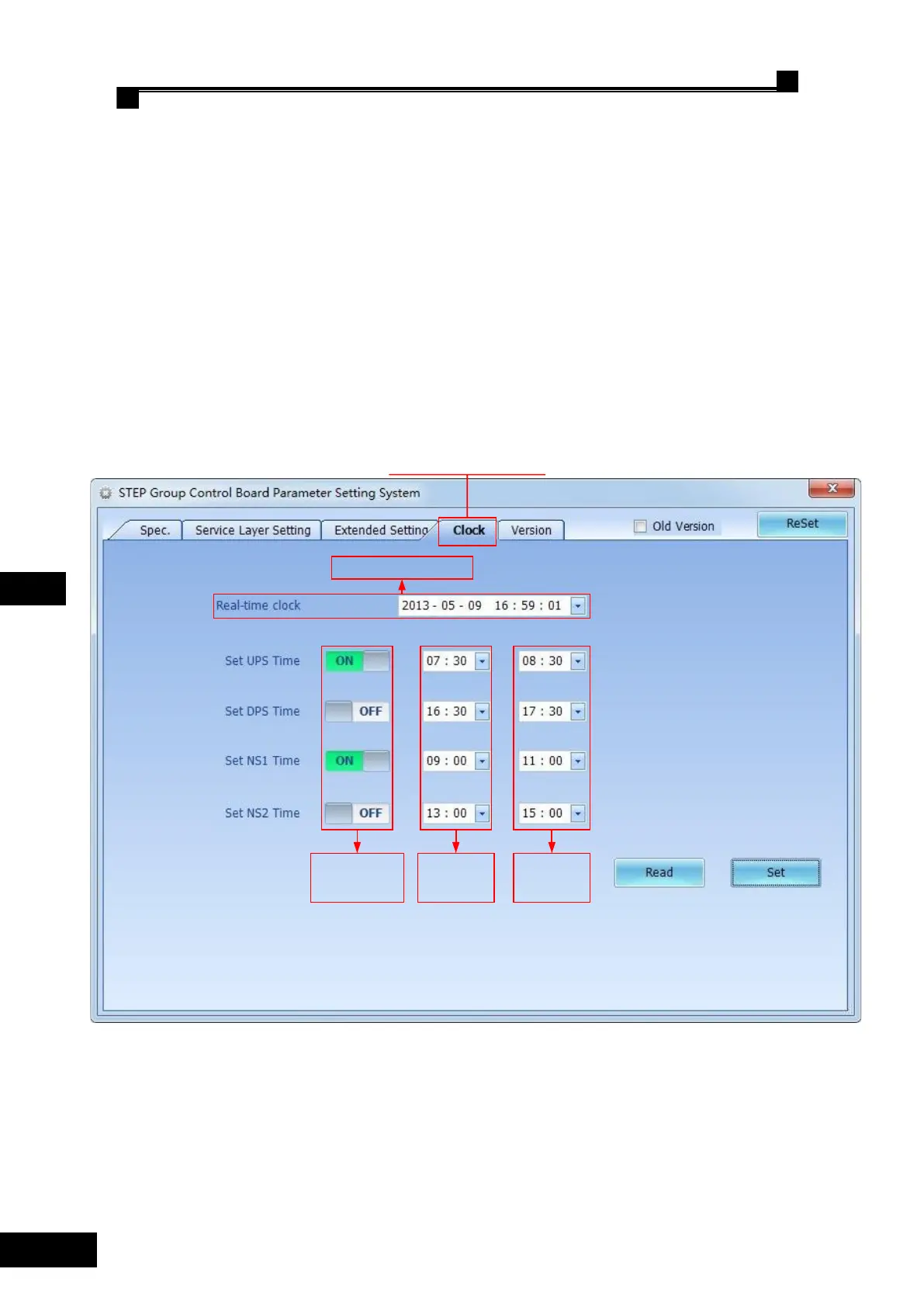

Fig. 6.49 Clock tab
Click ―Clock‖ tab, and enter the detailed setup screen for clock parameters. Specific
parameters and button functions are introduced as follows:
1) Real-time Clock: Set the date and clock data of real-time clock of the group control board.
Click the pull-down arrow, pop up a calendar screen, then click ―Today‖ below, and acquire the
current year/month/date automatically. Then, manually adjust and set the hour, minute and second
Click this tab, enter clock
function setup
Set current real-time time
Enable setup of
clock service
function or
scheme
Set staring
time of
service or
function
Set ending
time of
service or
function
To Next Page
