STEP AS380 Series User Manual

Shanghai STEP Electric Corporation
Chapter 5 Operator
66
Please note, only elevator condition and parameter can be browsed if not login. Only in login stat
can be authorized to modify the parameter.
10 process diagnosis
Stat code

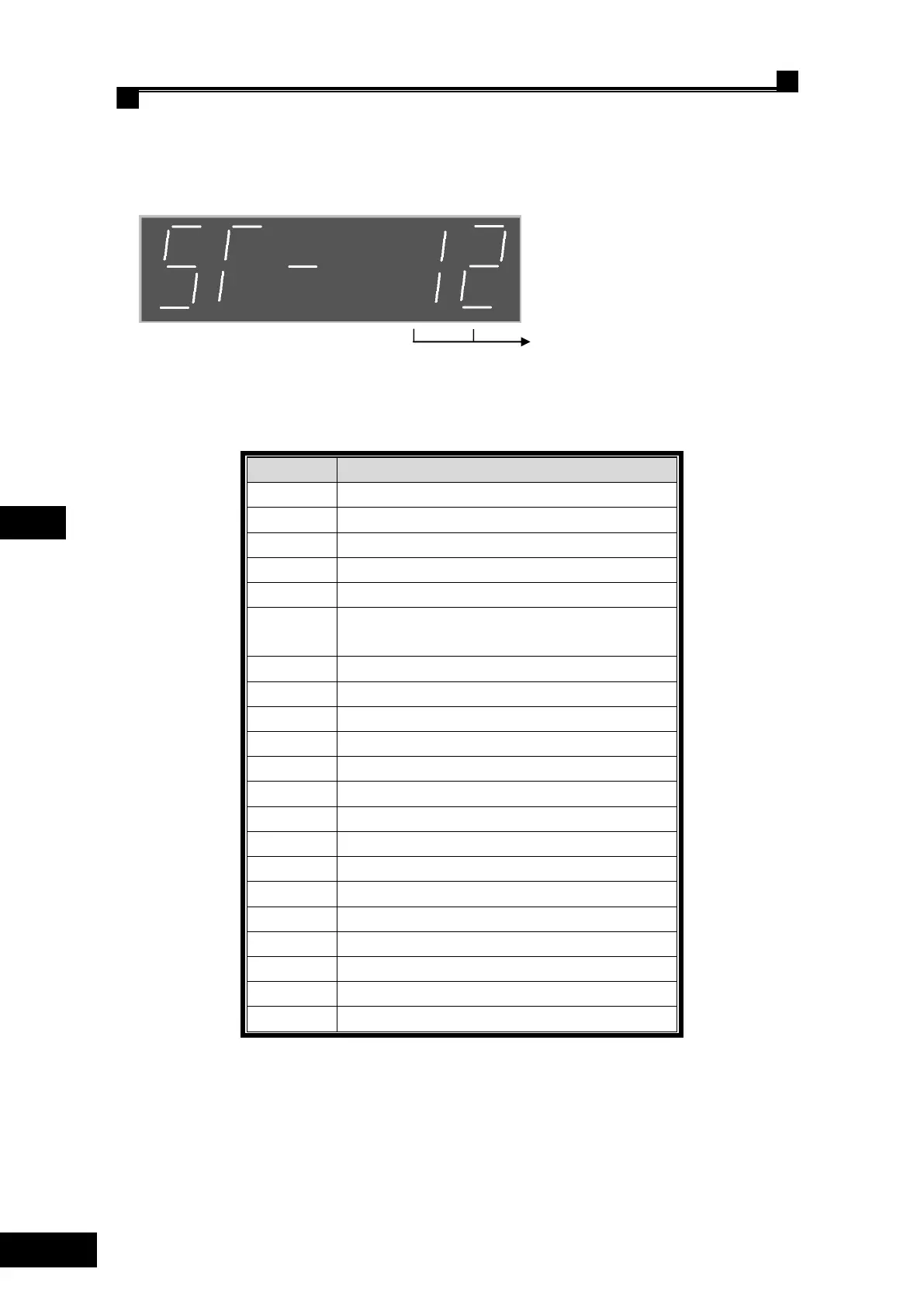

This menu shows the current status of elevator. Use one two digit status code to show, the
definition of status code is as follow:
Table 5.4 status coder definition
Serial No.
Description
0
Safety circuit disconnect
1
Elevator fault
2
Motor overheat
3
Elevator overload
4
Safety edge
5
Door open button action(door open button or
same-direction hall call button action)
6
Door lock short circuit/door open limit action
7
Elevator door opening
8
Elevator door closing
9
Door closing limit action
10
Upward limit
11
Downward limit
12
Door lock closed, meeting the running condition
13
KMY contact inspecting
14
KMB contact inspecting
15
In zero speed servo
16
Elevator by pass
17
Elevator running
18
Elevator door lock disconnect
19
Hoist way study not finished
20
Frequency converter enabling stat check
