Shanghai STEP Electric Corporation

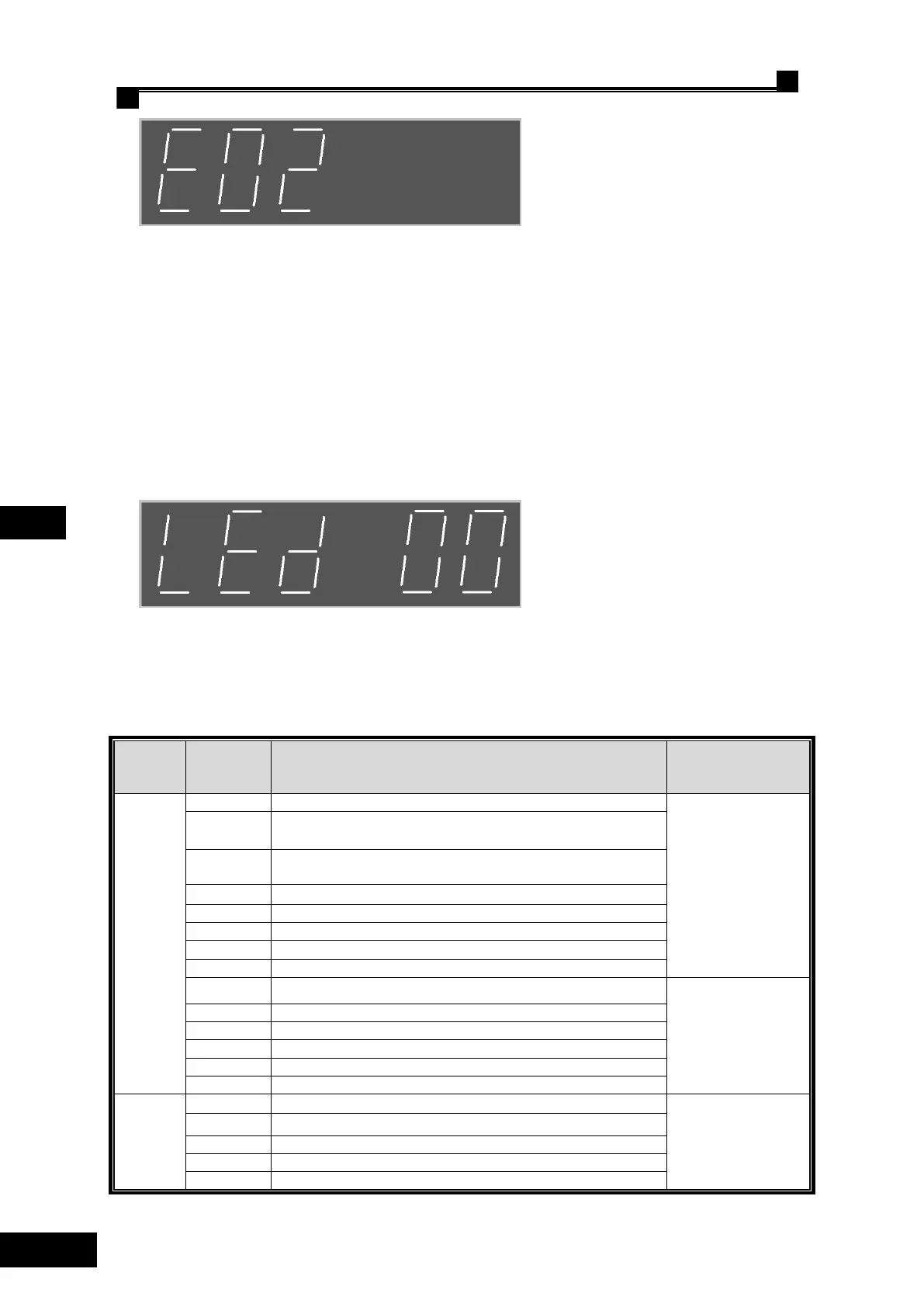

The menu shows the program version of control part of integrated unit. The screen will display
the program version E02 of the control part one second later, as per the above picture. Then the
words VER 2and E02 will alternatively display, each of which will last for 1 second.
5.1.3.3 Use Menu to switch among various menus
Under any circumstance press the menu button to switch between LED function selection
and door open/close control. Press ESC to return to the elevator status interface. The following is
the detailed description of those menus
1. LED function selection
Use up and down button to select the definition code of 18 LED indicator light L1-L8. press enter
button to confirm. The LED indicator light will change as per the code definition. The definition
code of L1-L8 is as following table 5.5
Table .5.5 L1-L8 display content selection
door lock relay output signal
Maintenance running
startup condition, all 8
light on means that
peripheral signal ok
for inspection running
main contactor contact input signal( no contact adhesion and light
on )
band brake contactor contact input signal ( contactor no adhesion ,
light on)
band brake switch ( input point normal and light on)
motor overheat( input point normal and light on)
up limit switch ( compound) status signal
down limit switch ( compound ) status signal
inspection upward/downward signal( light on as signal exist
main contactor drive signal
The internal status as
inspection running. all
six light on one by one
when inspection run
normally.
signal for moving up /down
running signal feed from drive part
band brake contactor drive signal
down limit switch status- light off, no move down
Hoist way switch and
leveling switch status.
Light on means the
connection of external
input point
down level-1 forced deceleration switch on-off
down level-2 forced deceleration switch on-off
down level-3 forced deceleration switch on-off
down level-4 forced deceleration switch on-off
