Perform the following steps in the specified order.
ü
You have tapped holes for fastening screws on the mounting plate at the installation
location in accordance with the drilling diagram and taking into consideration the different
device dimensions.
ü
The mounting plate has been cleaned (free of oil, grease and swarf).
ü
The copper rails must be straight, smooth, free of burrs and cleaned (free of oil and
grease).

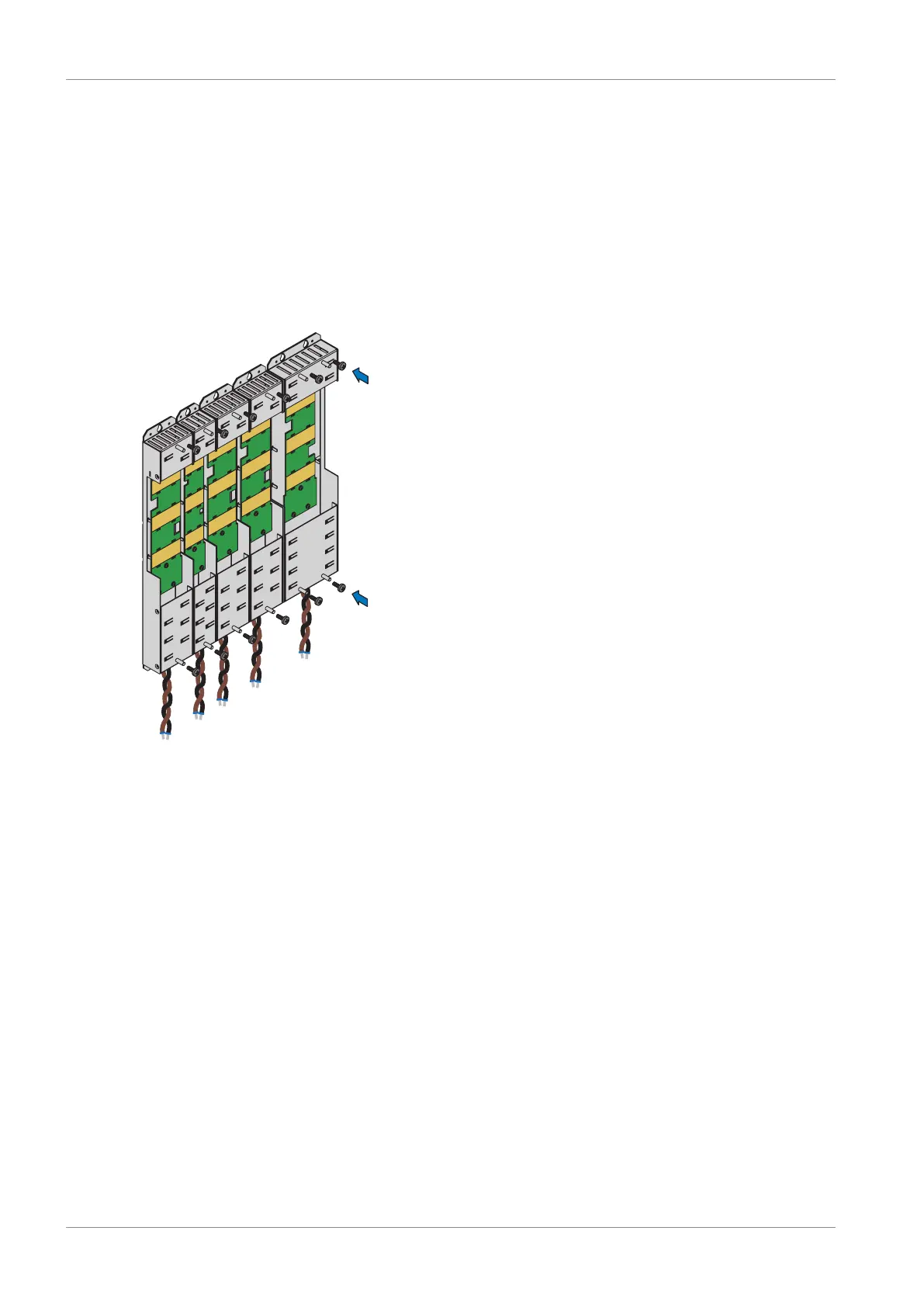

1. Fasten the Quick DC-Link modules onto the mounting plate with the fastening screws.
