STOBER 9 | Installation
02/2019 | ID 442728.05
97

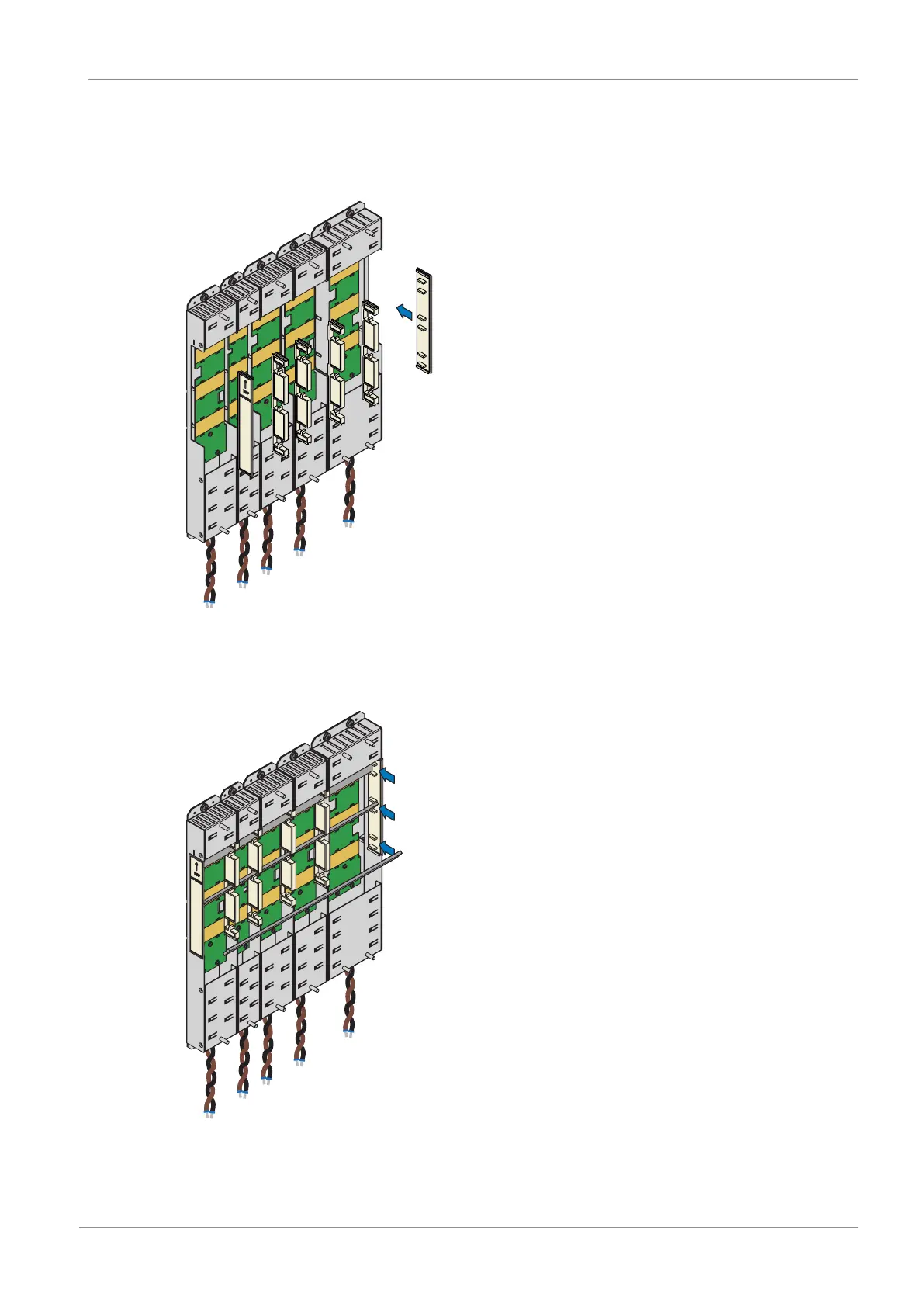

2. Insert the insulation connection pieces between the modules and insulation end section
each at the left edge of the first module and at the right edge of the last module. Ensure
correct alignment of the end section using the marking on the outside and the insertion aids
for the copper rails on the inside.
3. Shorten the copper rails to the correct length.
4. Clean the copper rails, especially at the contact points.
5. Insert the three copper rails one after the other.
