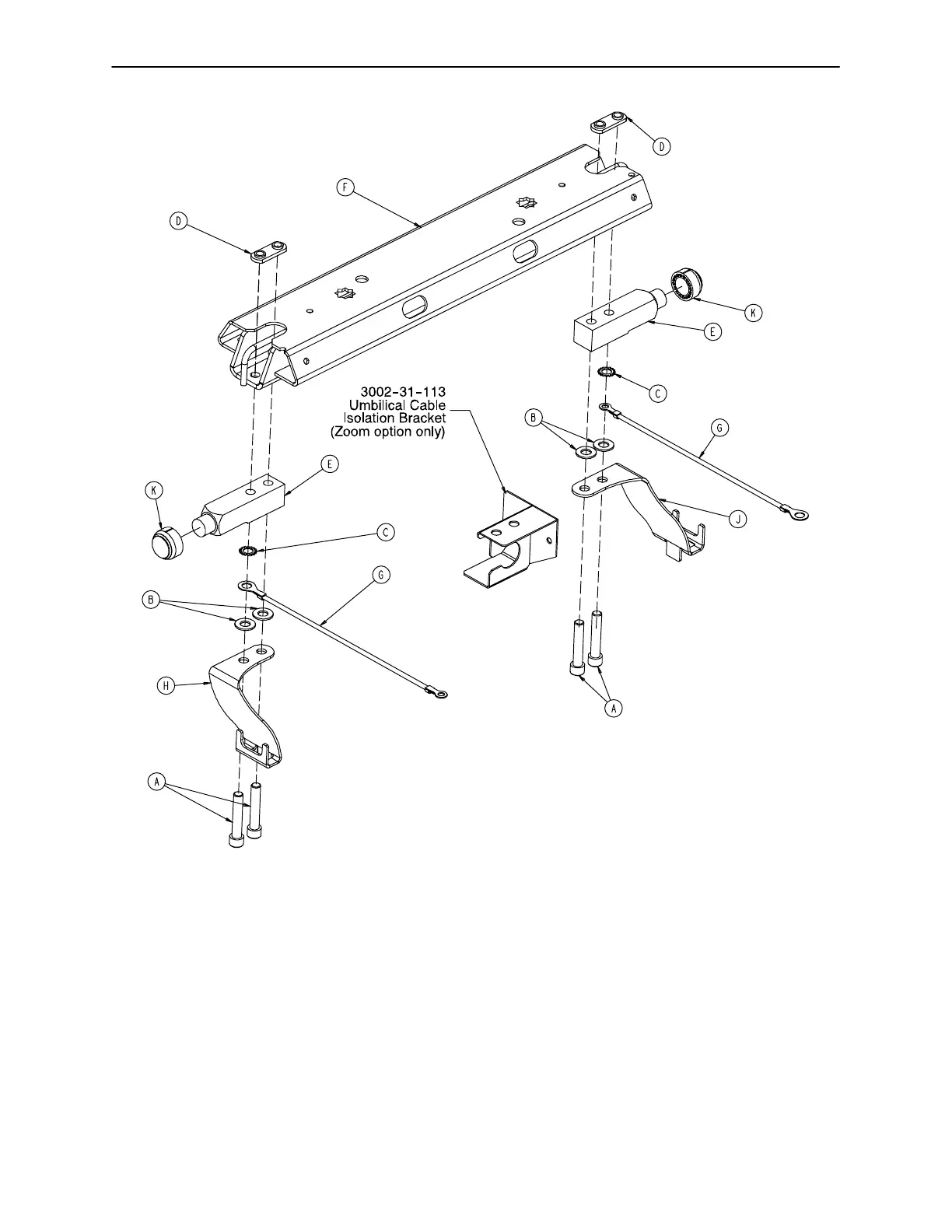

Lift Header Assembly with Load Cells
163
3002−307−501 Lift Header − Load Cells 3002−326−501 Lift Hdr. − Load Cells/Iso. Foley Hooks
Item Part No. Part Name Qty. Item Part No. Part Name Qty.
A4−288 Hex Soc. Hd. Cap Screw 4 A 4−288 Hex Soc. Hd. Cap Screw 4
B11−4 Flat Washer 4 B 11−4 Flat Washer 2
C13−32 Ext. Tooth Lock Washer 2 C 13−32 Ext. Tooth Lock Washer 2
D 3001−300−509 Weldnut 2 D 3002−300−509 Weldnut 2
E 3002−307−57 Load Cell 2 E 3002−307−57 Load Cell 2
F 3001−300−530 Lift Header 1 F 3001−300−530 Lift Header 1
G 3002−300−871 Ground Jumper 2 G 3002−300−871 Ground Jumper 2
K 3000−300−353 Roller Cap 2 J 3002−326−10 Iso. Foley Bag Ass’y, Lt. 1
K 3002−326−20 Iso. Foley Bag Ass’y, Rt. 1
H 3000−300−353 Roller Cap 2
To Next Page
