Fowler Drive Assembly
8” Shorter Bed

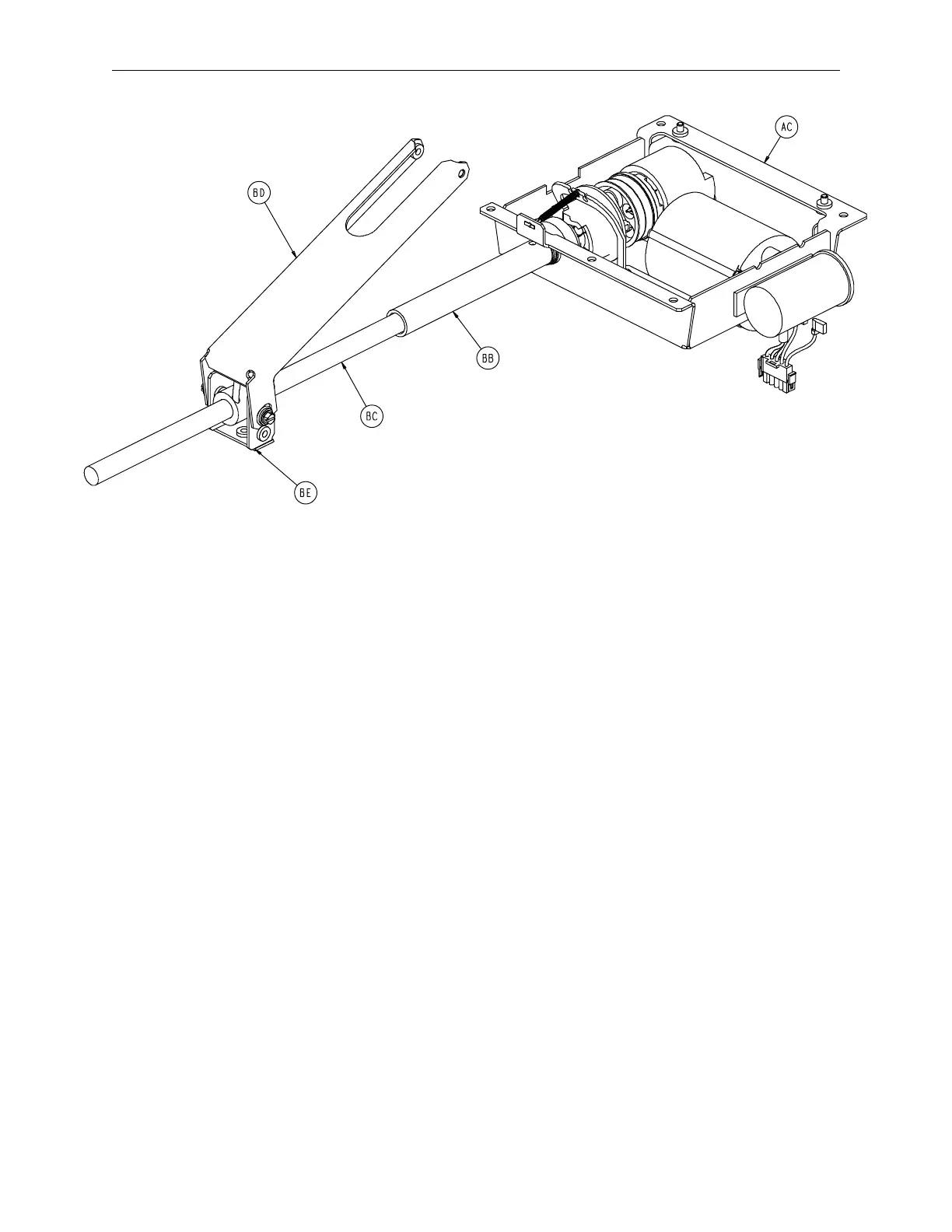

Fowler Drive shown
3002−300−550 Fowler Actuator Common Components
Item Part No. Part Name Qty. Item Part No. Part Name Qty.
A3−214 Hex Hd. Cap Screw 2 S 3000−300−456 CPR Isolator 1
B3−50 Hex Washer Hd. Screw 2 T 3000−300−461 CPR Decoupler 1
C11−3 Flat Washer 2 U 3000−300−462 CPR Wing 1
D11−2 Flat Washer 2 W 3000−300−464 CPR Engagement Spring 2
F27−17 Cotter Pin 1 X 3000−300−466 Thrust Bearing 1
G28−120 External Retaining Ring 2 Y 3000−300−471 Roller Bearing 1
H38−151 Cable Tie 2 Z 3000−300−473 Clevis Pin 1
J44−29 Double−Stick Tape 1 AA 3000−300−658 CPR Release Arm 1
K52−718 Nylon Insulator 2 AB 3001−200−228 Mounting Standoff 2
L52−719 Nylon Flat Washer 2 AC 3001−300−485 Fowler Actuator Wldmt. 1
M29−21 Dart Clip 1 AD 3001−300−487 Actuator Mounting Brkt. 1
N 3000−300−99 Litter Pivot Bushing 2 AE 3001−300−664 CPR Spring 1
P 3000−300−442 Fowler Drive Grommet 4 AF 38−478 Wave Spring 1
R 3000−300−455 CPR Isolation Bushing 2
3002−343−550 Fowler Actuator − Standard Bed 3002−342−550 Fowler Actuator − 8” Shorter Bed
Item Part No. Part Name Qty. Item Part No. Part Name Qty.
BA 14−83 Thrust Washer 1 BA 14−83 Thrust Washer 2
BC 3000−300−457 CPR Ball Screw 1 BB 3001−342−457 Fowler Nut Stop Tube 1
BD 3001−300−496 Fowler Link 1 BC 3001−342−467 CPR Ball Screw 1
BE 3002−300−493 Fowler Link Bracket 1 BD 3001−342−496 Fowler Link 1
BE 3001−342−499 Fowler Link Bracket 1
