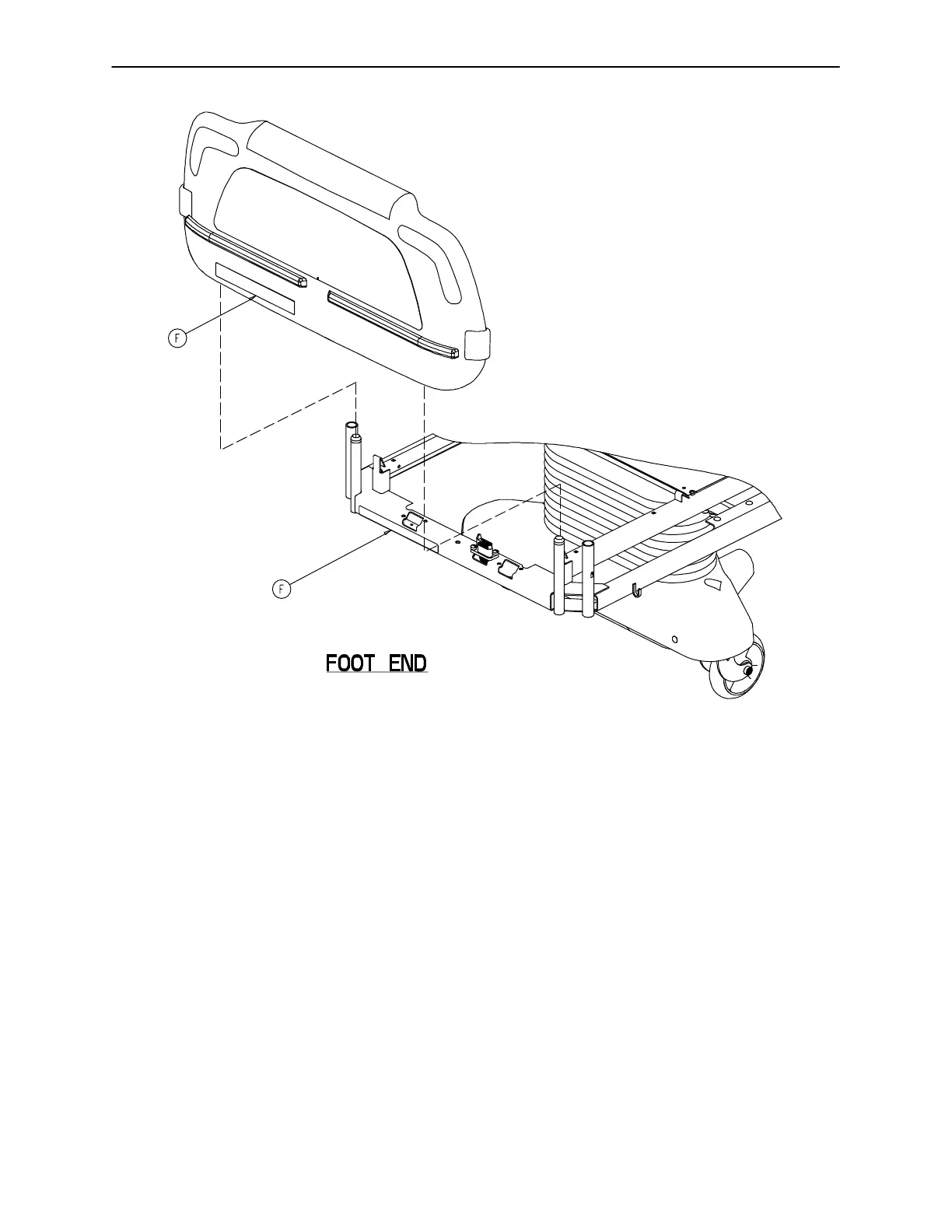

3002−320−50 Optional 110V Outlet Assembly
173
Item Part No. Part Name Qty.
A3−224 Hex Washer Hd. Screw 2
B7−53 Truss Hd. Torx 1
C30−45 Strain Relief 1
D 3000−300−113 Cable Tie 5
E(page 174) Outlet Box Assembly 1
F 3002−320−626 110V Outlet Label 2
G 3002−320−801 Power Cord 1
H 3002−320−878 110V Power Inlet Cable 1
J59−196 10A Circuit Breaker 2
K 3002−320−803 110V Power Jumper 1
L 3002−320−625 Shock Hazard Caution Label 1
To Next Page
