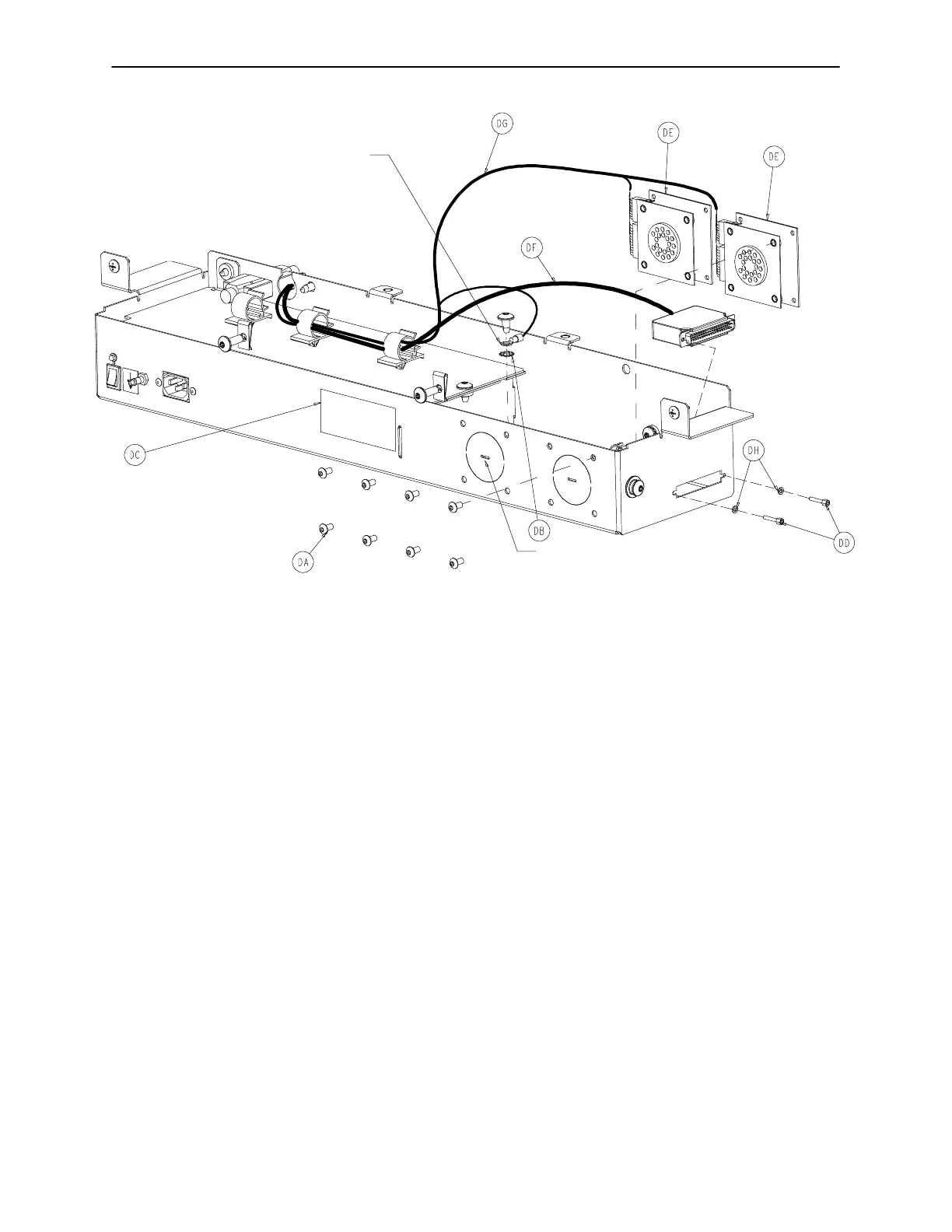

Zoom Option Litter Assembly
190
See page 187 for ground location
Use for single port option
3002−31−200 Head Wall Communication Option 3002−31−201 Head Wall Comm. w/Nurse Call
Item Part No. Part Name Qty. Item Part No. Part Name Qty.
DD 3001−300−7 M/F Screw 2 DD 3001−300−7 M/F Screw 2
DF 3002−80−8 Head Wall IF Cable 1 DF 5010−80−8 Head Wall Interface Cable 1
DH 12−46 Split Lock Washer 2
DK (page 183) Battery Enclosure Ass’y 1
3002−31−202 HW Comm. w/NC & 1 Stryker Port
Item Part No. Part Name Qty.
DA 4−307 But. Hd. Cap Screw 4
DB 13−10 Ext. Tooth Lock Washer 1
DC 2040−31−104 Cord Out Label 1
DD 3001−300−7 M/F Screw 2
DE 3001−314−920 Head Wall Pend. Port PCB 1
DF 3002−80−8 Head Wall Interface Cable 1
DG 3002−31−807 Zoom Pendant Port Cable 1
DH 12−46 Split Lock Washer 2
DK (page 183) Battery Enclosure Ass’y 1
