Siderail Operation Guide
20

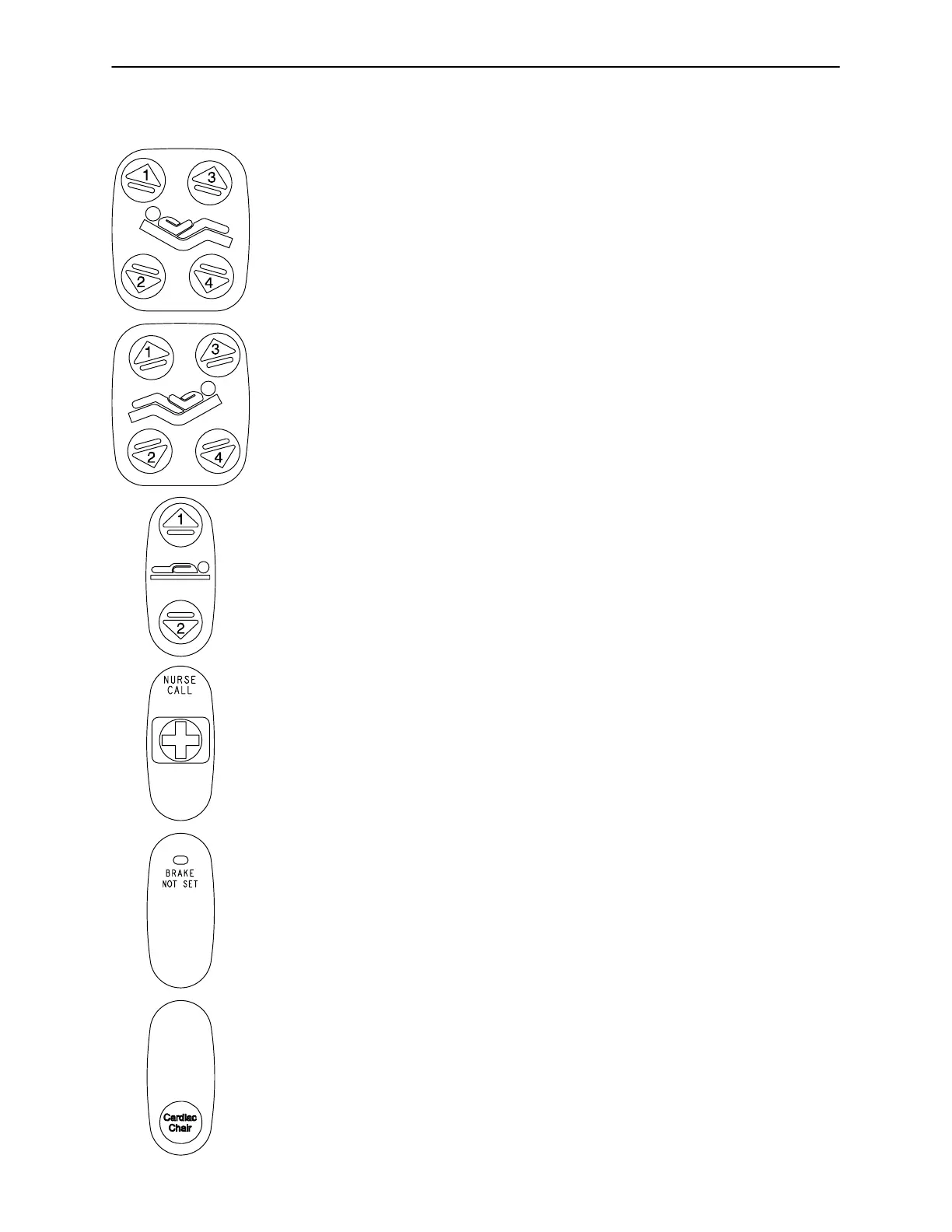

OUTSIDE SIDERAIL FUNCTION GUIDE
(Patient’s Right Rail)
1. Push to raise Fowler.
2. Push to lower Fowler.
3. Push to raise Knee Gatch.
4. Push to lower Knee Gatch.
This panel is optional equipment.
(Patient’s Left Rail)
1. Push to raise Knee Gatch.
2. Push to lower Knee Gatch.
3. Push to raise Fowler.
4. Push to lower Fowler.
This panel is optional equipment.
1. Push to raise bed height.
2. Push to lower bed height.
Push to activate Nurse Call.
This panel is optional equipment.
LED will blink when the brakes are not set.
Push to activate the Cardiac Chair function. The Knee will raise, the
Back will raise or lower to approximately 52 and the bed will tilt to
approximately −12 (−10 if it’s a Short Bed) reverse Trendelenburg
(foot end down). Release the button to stop bed movement: hold the
button until movement stops to complete the function.
This panel is optional equipment.
