ec tower technical manual
13.9Installing the louver damper for Downflow units
60
80
220
In Downflow units, the louver damper is installed on the blow-out side. This illustration shows the louver

louver damper under the Downflow unit. The adapter panel is included in the louver damper product package.
The louver damper is available for sizes 1 and 2.
View from above
Front
View from above
Front

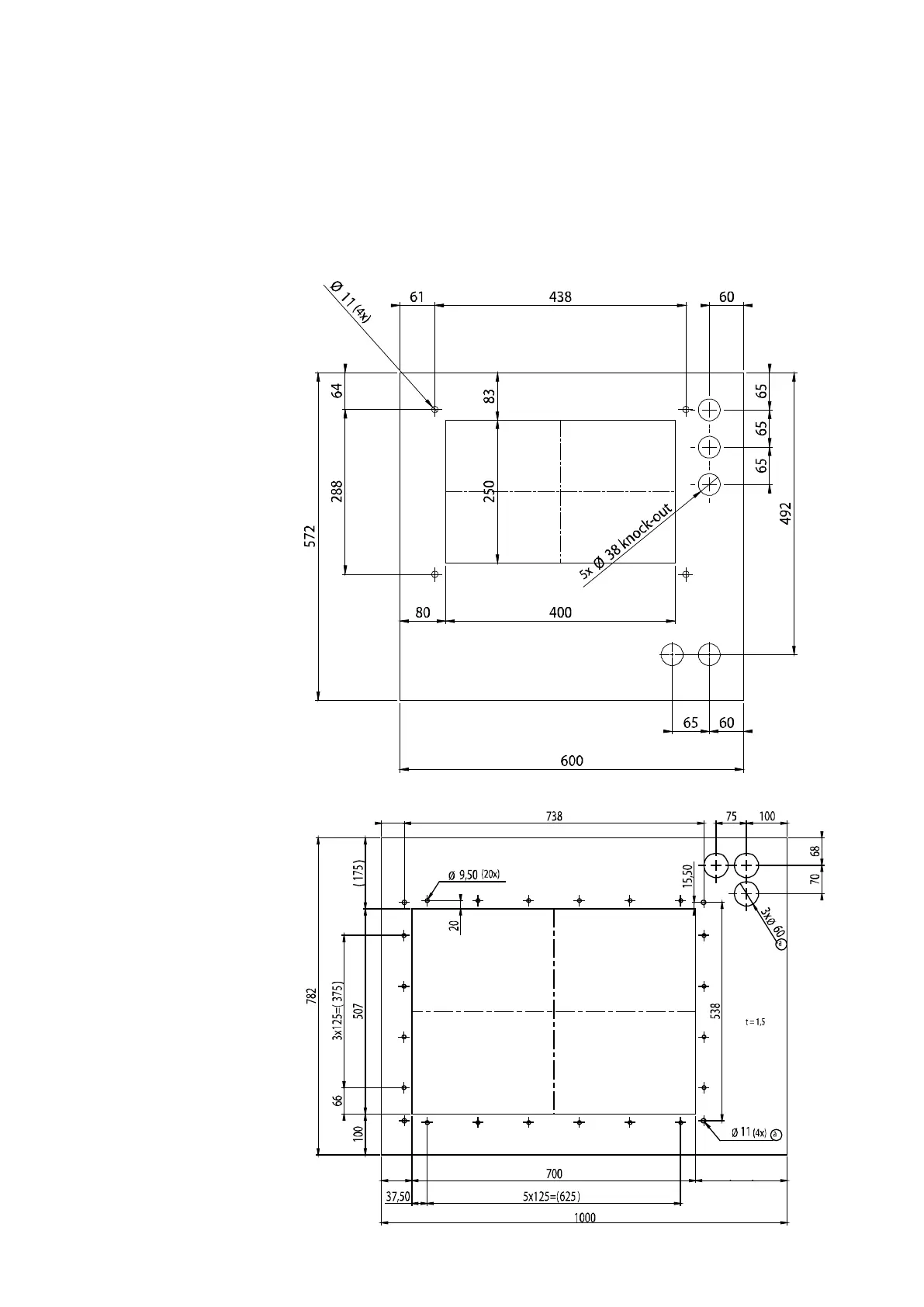

Adapter panel for size 2:
Adapter panel for size 1:

