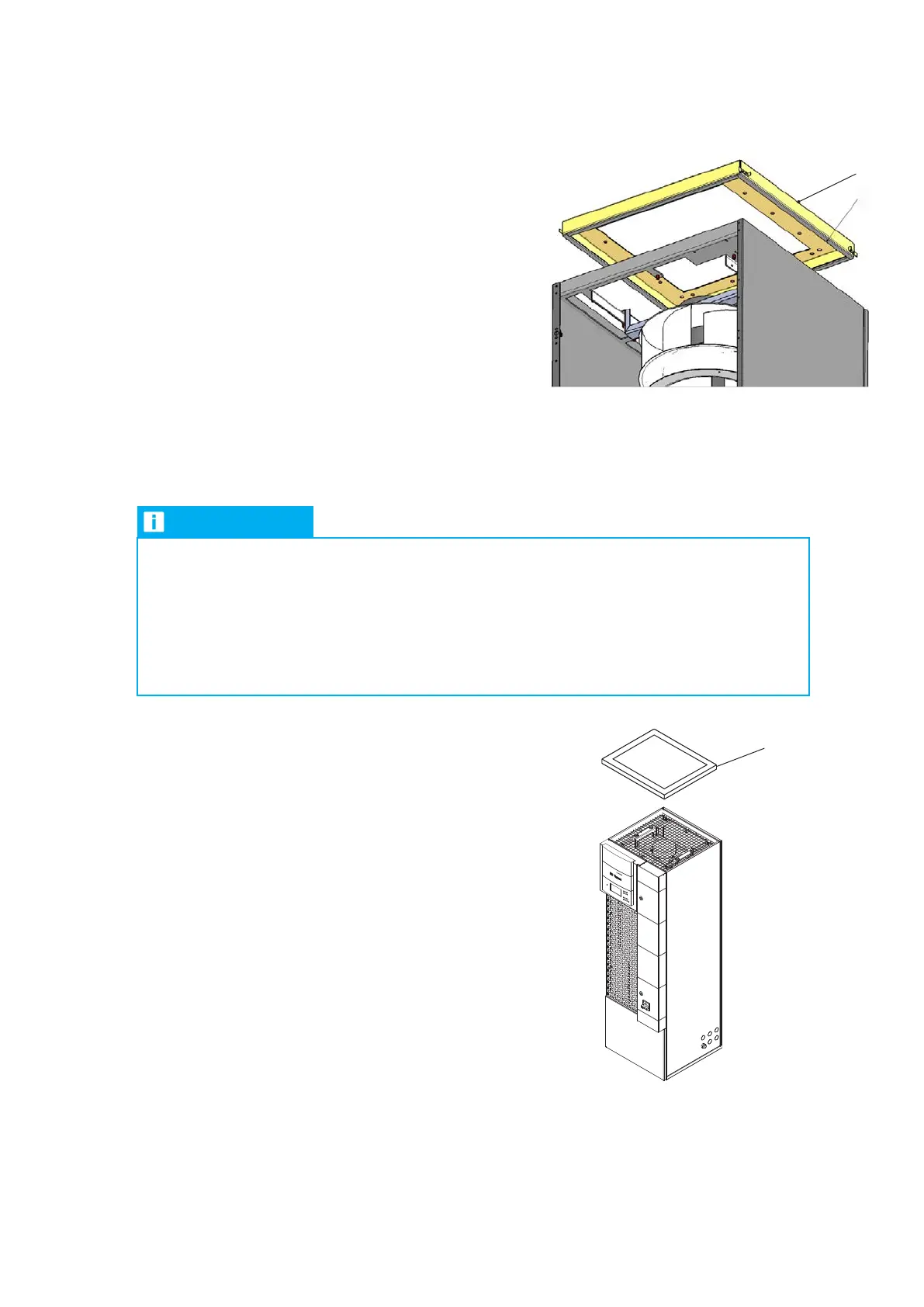

Stulz EC Tower ECD 91 - 13.6 Installing the adapter panel for Upflow units

95 © STULZ GmbH – all rights reserved EN/01.2019/G22
ec tower technical manual
Procedure
1. Fit suitable sealing tape on the upper and lower con-
tact surfaces (1, 2) of the adapter panel.
2. 
3. For size 1: Bend the integrated tabs slightly to se-
cure the adapter panel to the air conditioning unit.
Procedure
1. Install the adapter panel on the air conditioning unit
(see “13.6.1 Installing the adapter panel for flexible
canvas fittings or duct connections“ on page 95).
2. 
panel (1).
3. Connect the on-site vibration damping to the air
duct.
13.6.1 Installing the adapter panel for flexible canvas fittings or duct connections
13.6.2 Installing the duct connection
1
2
EC Tower
51-5670-16 ECTower_Vorlage.indd 1
03.08.16 16:31
1
NOTICE
Risk of damage to the EC Tower and air duct due to vibrations if the duct is connected without a
flexible canvas fitting!


damping (see page 96).

