46 EN/01.2019/G22  © STULZ GmbH – all rights reserved
EC TOWER TECHNICAL MANUAL
7.5 Installing the refrigerant circuit
Refrigerant circuit installation is described in the outdoor unit Instruction Manual. Install the refrigerant circuit

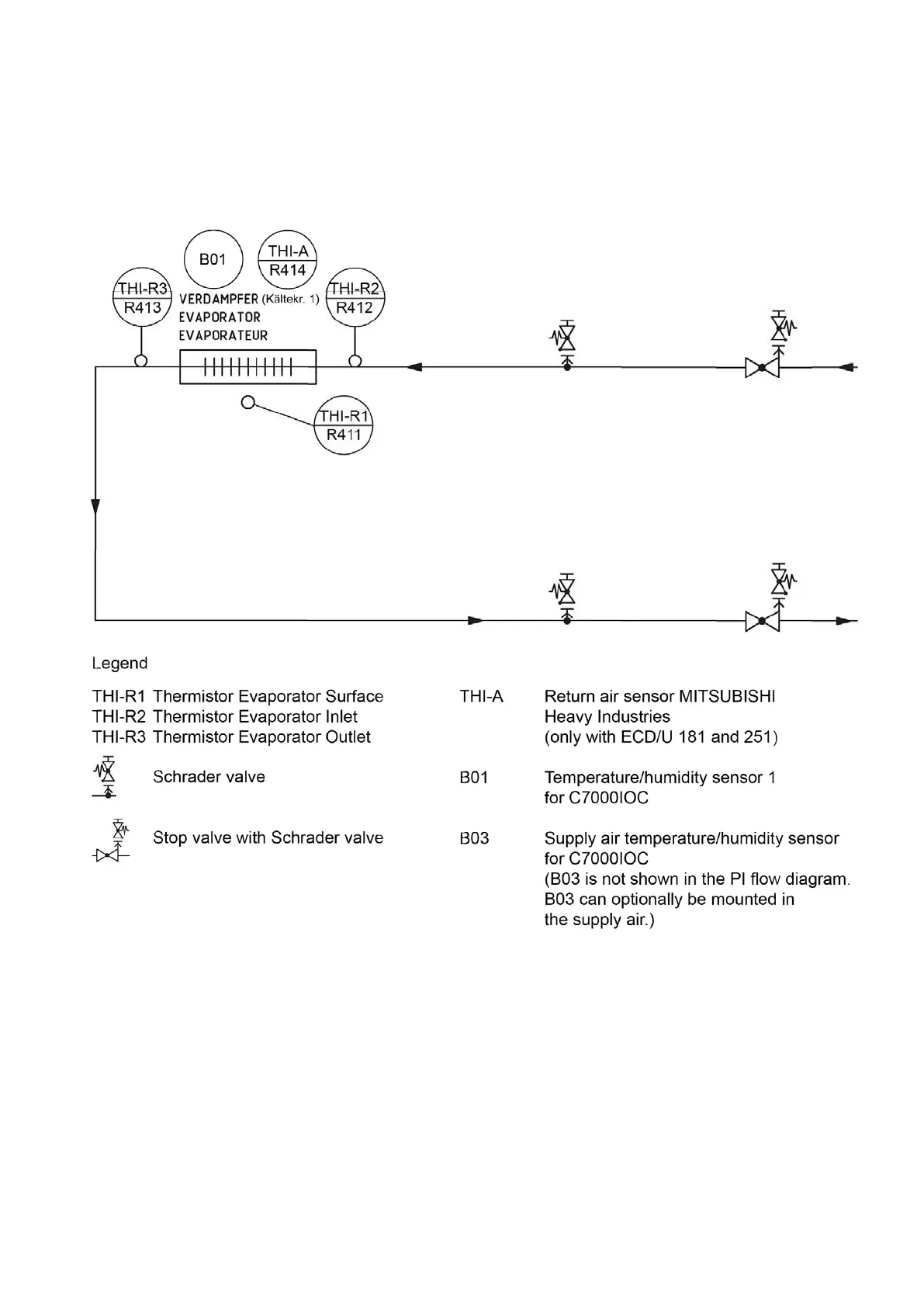

as shown in the RI flow diagram below:
