EC TOWER TECHNICAL MANUAL
Avoiding installation errors when fitting the drain

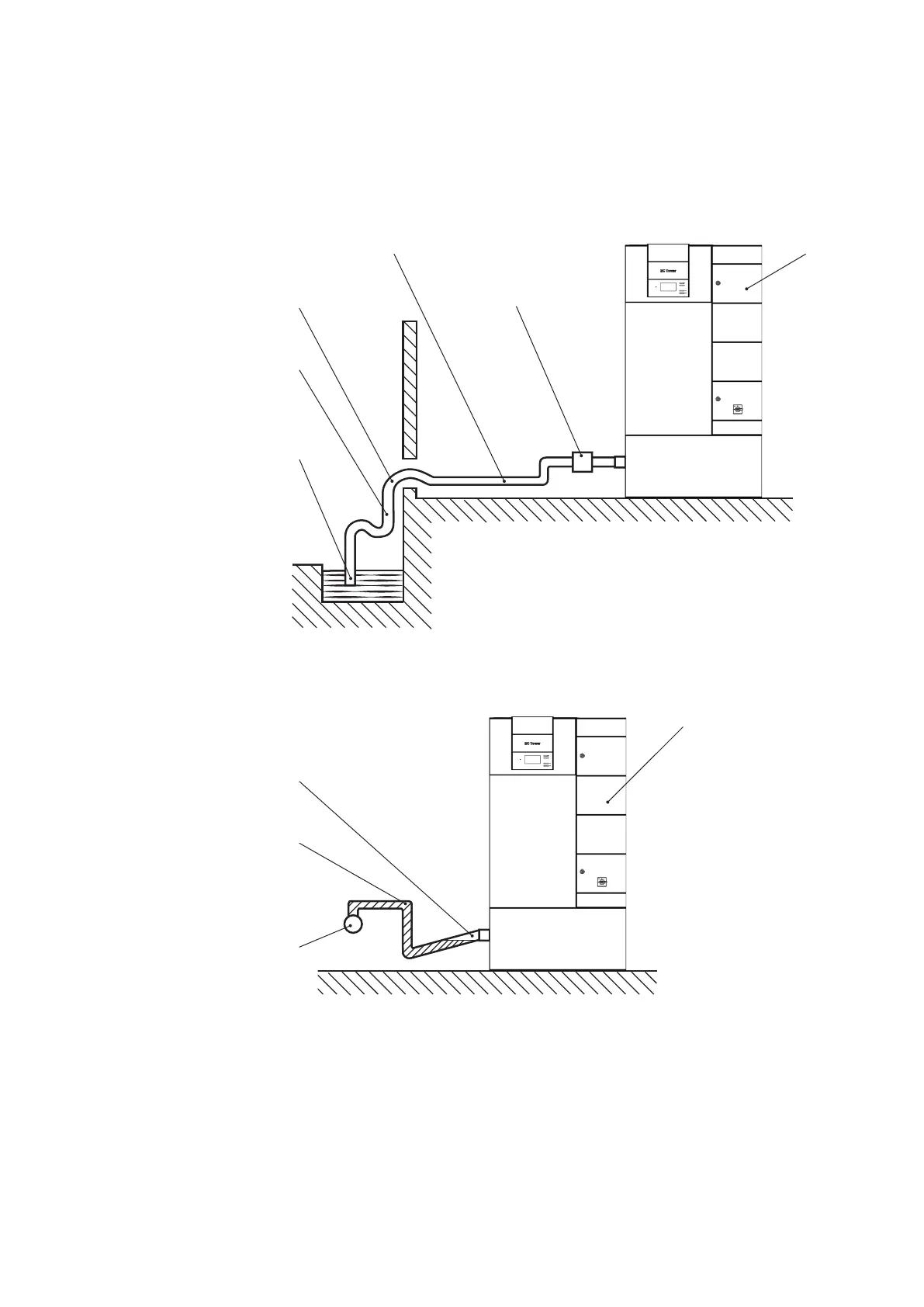

The diagrams below illustrate typical installation errors when fitting the condensate drain. Take care to avoid
installation errors.
Do not bend or kink drai-
nage pipe
Wall drain
Trapped air in drainage
pipe generates noise
Do not bend the drainage
pipe
Lay the drainage pipe
without any steps
Condensate cannot drain
freely: End of drainage
pipe in the water
Drainage pipe Bleeder valve:
Do not install any bleeder valves
in the drainage pipe
