Stulz EC Tower ECD 91 - Installing the Blow-Out Plinth for Downflow Units

88 EN/01.2019/G22 © STULZ GmbH – all rights reserved
ec tower technical manual

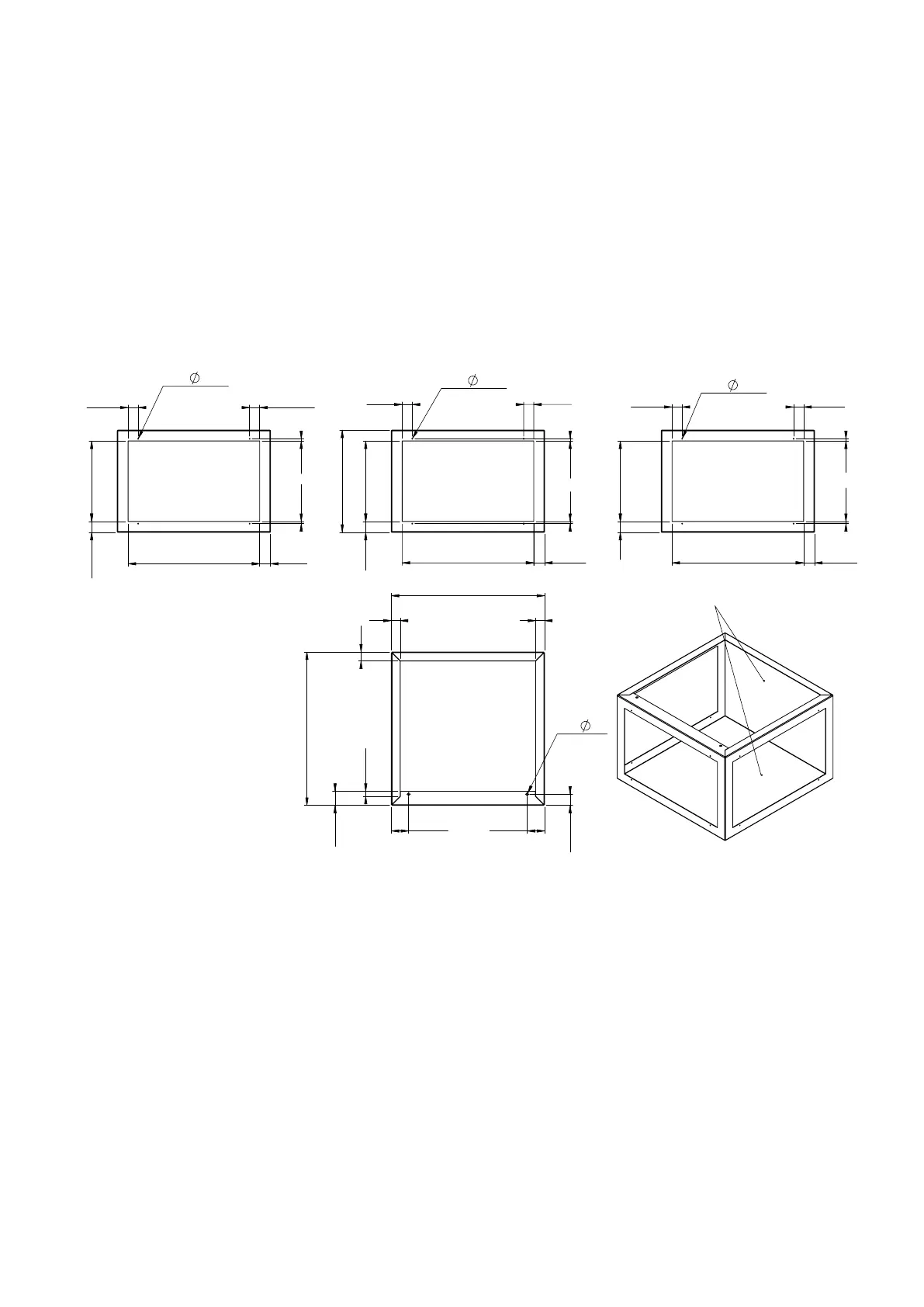

Size 1 dimensions:

13.4Installing the blow-out plinth for Downflow units
The blow-out plinth is used for Downflow units to blow out the chilled air in rooms without a raised floor.
The blow-out plinth is screwed to the air conditioning unit.
The blow-out plinth is available for sizes 1 and 2.
400
8,508,50
315
515
39,50
4x 3,30
39,50
42,50
42,50
35
35
55
35
600
600
44
68 68
19,7
2x 9
515
315
Rear and floor panel are covered with foam insulation
(12 mm (0,6 m2).
42,50
42,50
39,50 39,50
4x 3,30
8,508,50
315
515
42,50
39,50 39,50
8,508,50
42,50
4x 3,30
