Stulz EC Tower ECD 91 - Connection Diagram for WIB 8000

129
120 Ω / 100 V
......
C5000
High Low
2 3
C1002
High Low
33 32
R
WIB8000
High
C6000
High Low
11 12
Stulz-Bus
Low
Bus 1
Ethernet
Bus 2
Provider
Provider

C7000AT
High Low
13 14
C7000IOC
C7000AT
High Low
13 14
C7000IOC
C7000AT
© STULZ GmbH – all rights reserved EN/01.2019/G22
ec tower technical manual
External termination resistor
with C1002, C4000, C5000
Intranet or Internet

C7000IOC
High Low
1 2
with EBUS
Integrated
termination
resistor
Termination resistor:
when using new drivers at the
other end
EC Tower 1
Integrated
termination
resistor
Firewall or

EC Tower 2 EC Tower 3

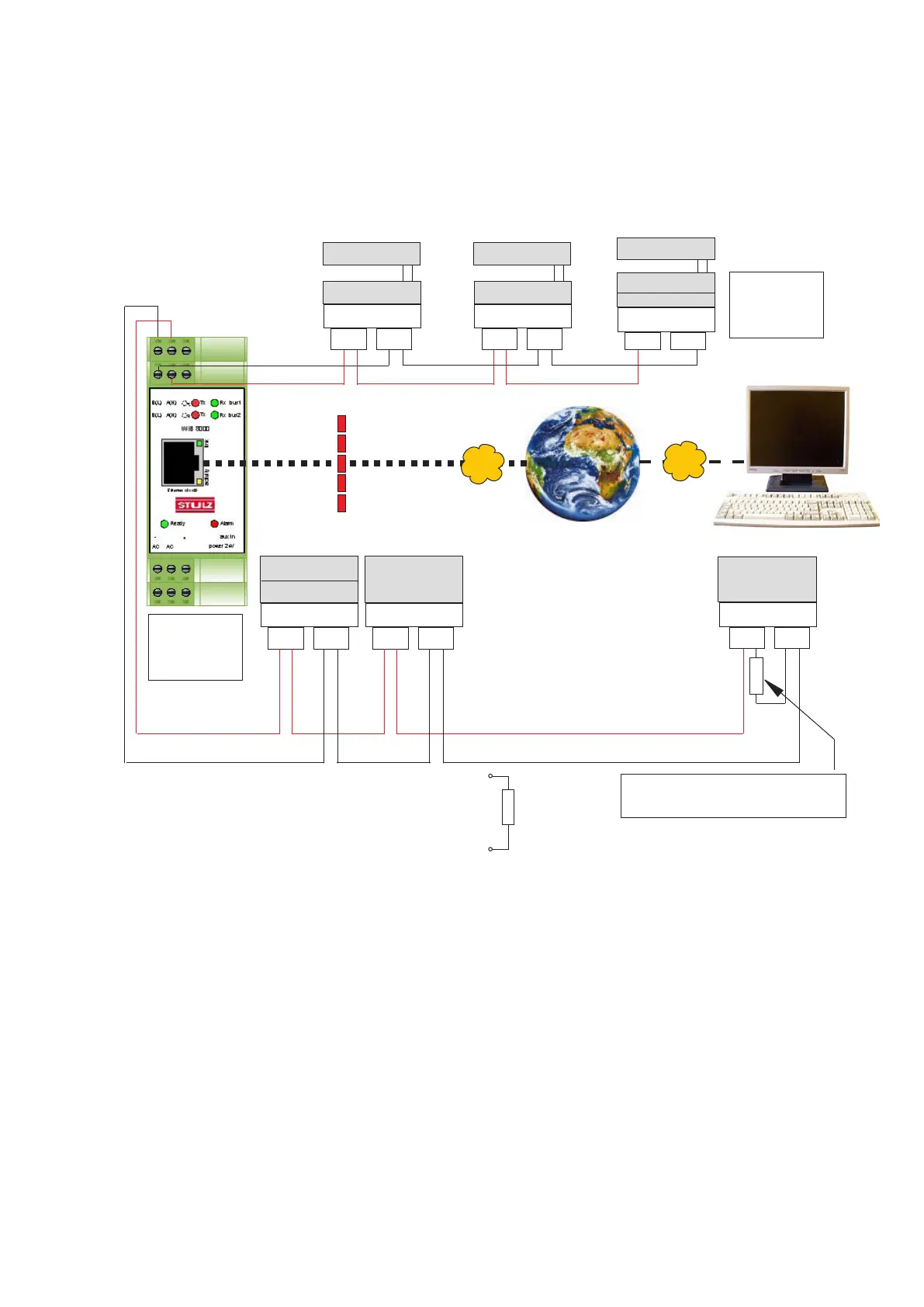

13.16.4 Connection diagram for WIB 8000
Procedure
1. Connect the WIB 8000 as shown in the connection diagram below and as per the circuit diagram.
