Size A B C D E H
1 mm 572 600 425 525 325 500
2 mm 782 1000 625 825 425 500
© STULZ GmbH – all rights reserved EN/01.2019/G22
ec tower technical manual

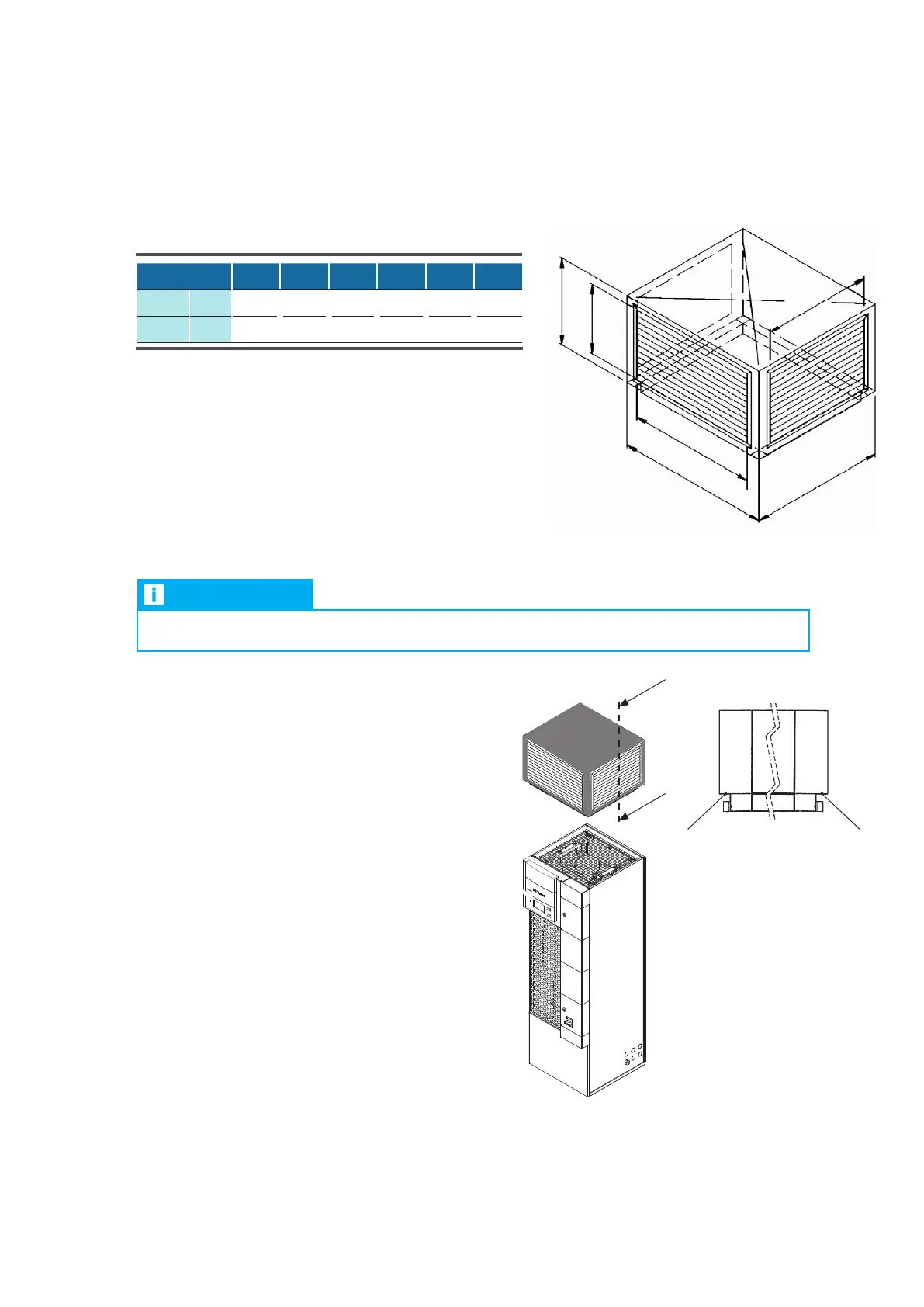

13.3Installing the blow-out plenum for Upflow units
Position the blow-out plenum on the air conditioning unit and secure with the integrated tabs.
Procedure
1. Fit suitable sealing tape on the contact surfaces
(1) of the blow-out plenum.
2. -
ing unit.
3. Bend the integrated tabs slightly to secure the
blow-out plenum to the air conditioning unit.
4. -
flow.
5. If you wish to direct the airflow in one direction,
open the fins on the appropriate side. Close the
fins on the two other sides.
6. 
plenum.
H
E
B
D
A
C
Installation
Section AA
A
A
11
EC Tower
51-5670-16 ECTower_Vorlage.indd 1
03.08.16 16:31
Dimensions
NOTE
Installation must be performed by at least two persons.
