EC TOWER TECHNICAL MANUAL

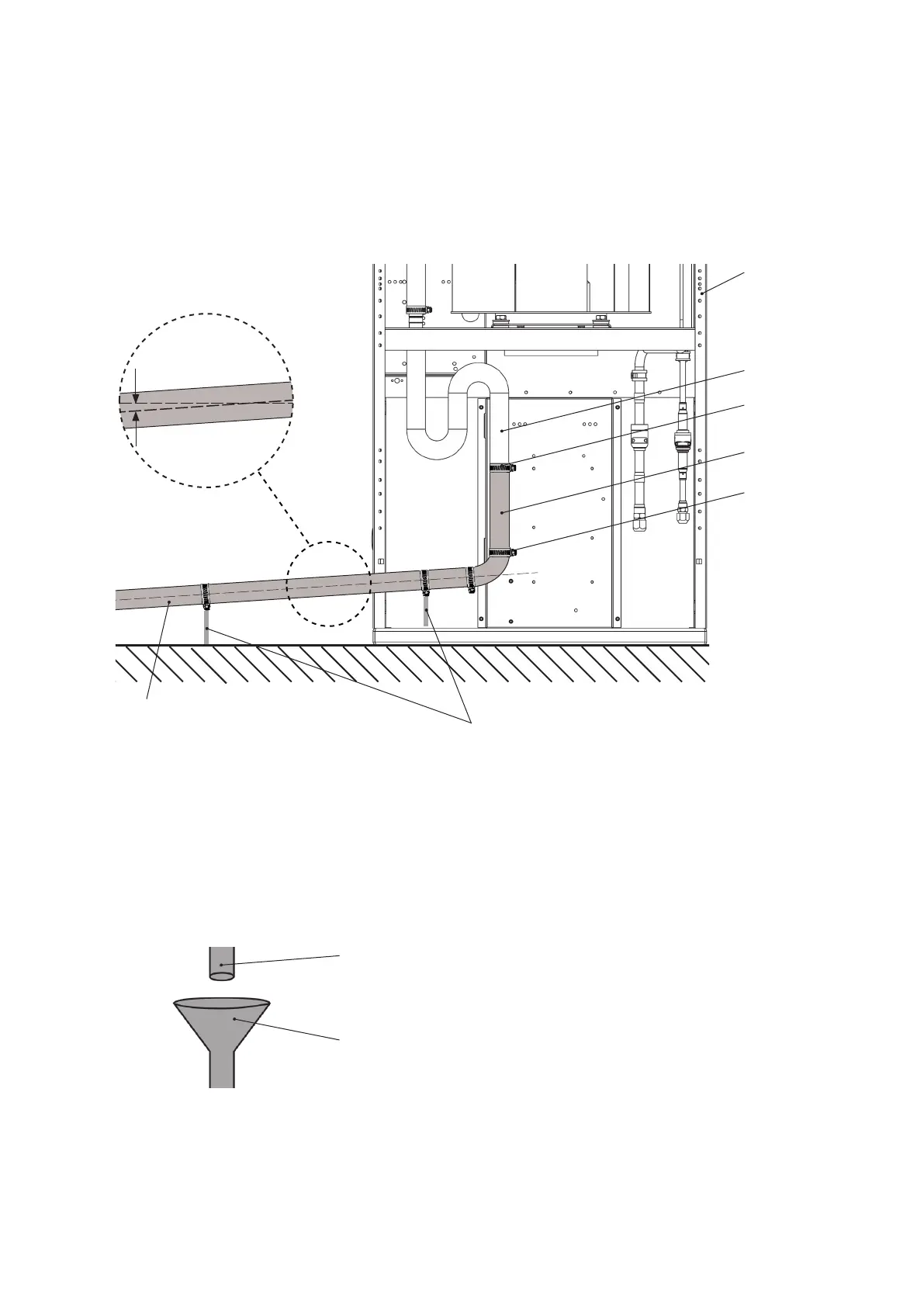

EC Tower
Condensate pipe
Hose clamp
Drainage pipe
Hose clamp
Supports with
hose clamps
- Wrap insulation around drainage pipe
- Route drainage pipe with drop > 1/100
- Support drainage pipe if necessary
Ensure a drop of >
1/100
Procedure
1. Secure the drain hose to the EC Tower condensate pipe using a hose clamp.
2. Route the drainage pipe as shown in the diagram below.
3. Use a drain hopper when fitting the end of the drainage pipe. The drain hopper is not included with the EC
Tower, and must be provided by the customer.
End of drainage pipe
Drain hopper
