35. S70) on the CPY controller to the right (M26 MAN. DRAIN).
- The steam humidifier is drained manually.
36.
37. Switch off the unit via the master switch.
38. Switch off the circuit-breaker (F20) by turning it to setting 0.
39. Secure the air conditioning unit so it cannot inadvertently be switched back on.
40. Stick the cable tie holders to the floor panel.
- The cable tie holders are provided by the customer.
41. Fasten the sensor to the floor panel with cable ties.
- The cable ties are provided by the customer.
42. Secure the cable with a cable tie.
43. Fit the left and right-hand cover panels.
44. Fit the lower front panel.
45. Fit the central protective grill.
46. Turn on the water supply to the steam humidifier.
47. S70) on the CPY controller to the left (M24 ON/OFF).
- The steam humidifier goes into normal operation.
48. Switch on the circuit-breaker (F20) by turning it to setting 1.
49. Close the door of junction box 1 using the supplied triangular socket wrench.
50. Switch on the unit via the master switch.
51.
52.
53. Wait until the steam humidifier has filled with water.

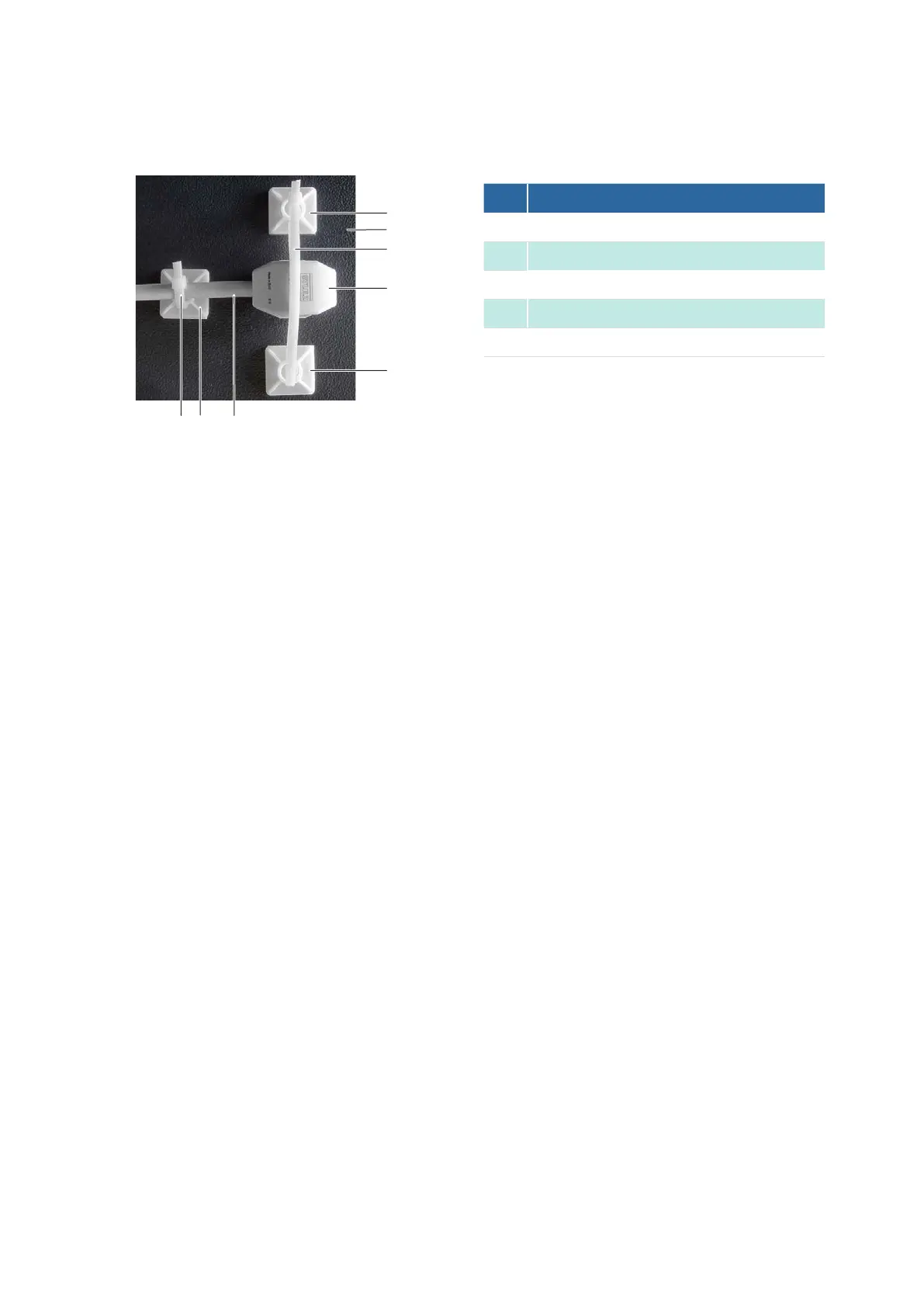

Installing the sensor in the EC Tower
1
1
53 1
2
3
4
No. Description
1
Cable tie holder with adhesive base
2
Floor panel of EC Tower
3
Cable tie
4
Sensor (B16)
5
Cable
