• To calculate the torque required, the specifications supplied by the damper
manufacturers concerning the cross-section, the design, the installation site and the
ventilation conditions must be observed.
• The device contains electrical and electronic components and must not be disposed
of as household refuse. All locally valid regulations and requirements must be
observed.
Product features
Simple direct mounting
Simple direct mounting on the damper spindle with an universal spindle clamp,
supplied with an anti-rotation device to prevent the actuator from rotating.
Manual override
Manual override with push-button possible (the gear is disengaged for as long as the
button is pressed or remains locked).
Adjustable angle of rotation
Adjustable angle of rotation with mechanical end stops.
High functional reliability
The actuator is overload protected, requires no limit switches and automatically stops
when the end stop is reached.
Accessories
Description Type
Electrical accessories
Auxiliary switch, add-on, 1 x SPDT S1A
Auxiliary switch, add-on, 2 x SPDT S2A
Feedback potentiometer 140 Ohm, add-on P140A
Feedback potentiometer 140 Ohm, add-on, grey P140A GR
Feedback potentiometer 200 Ohm, add-on P200A
Feedback potentiometer 500 Ohm, add-on P500A
Feedback potentiometer 500 Ohm, add-on, grey P500A GR
Feedback potentiometer 1 kOhm, add-on P1000A
Feedback potentiometer 1 kOhm, add-on, grey P1000A GR
Feedback potentiometer 2.8 kOhm, add-on P2800A
Feedback potentiometer 2.8 kOhm, add-on, grey P2800A GR
Feedback potentiometer 5 kOhm, add-on P5000A
Feedback potentiometer 5 kOhm, add-on, grey P5000A GR
Feedback potentiometer 10 kOhm, add-on P10000A
Feedback potentiometer 10 kOhm, add-on, grey P10000A GR
Description Type
Mechanical accessories
Actuator arm, for standard spindle clamp (reversible) K-SA AH-20
Shaft extension 250 mm for CrNi (INOX) AV12-25-I
Shaft extension 250 mm, for damper spindles Ø 8...25 mm AV8-25
Angled ball joint with M8, suitable for damper crank arms KH8 KG8
Straight ball joint with M8, suitable for damper crank arms KH8 KG10A
Damper crank arm, for damper spindles KH8
Spindle clamp, one side for NM..A, SM..A K-ENSA
Spindle clamp, one side for SM..A K-ENSA-I
Spindle clamp, reversible for SM..A and NMQ.. K-SA
Universal mounting bracket 180 mm Z-ARS180
Universal mounting bracket 230 mm Z-ARS230
Angle of rotation limiter, for K-NA 20334-00001
Form fit insert 10x10 mm, for NM..A / SM..A ZF10-NSA
Form fit insert 12x12 mm, for NM..A / SM..A ZF12-NSA
Form fit insert 15x15 mm ZF15-NSA
Form fit insert 16x16 mm, for NM..A / SM..A ZF16-NSA
Mounting kit for linkage operation, SM..A for flat installation ZG-SMA
Position indication for LM..A, NM..A, SM..A, GM..A Z-PI
Base plate extension from SM..A to SM../AM../SMD24R Z-SMA
Terminal protection IP54 Z-TP
Cable sleeve for Ø 4-6 mm, suitable for strain relief NG 43235-00001
SM24A-TP

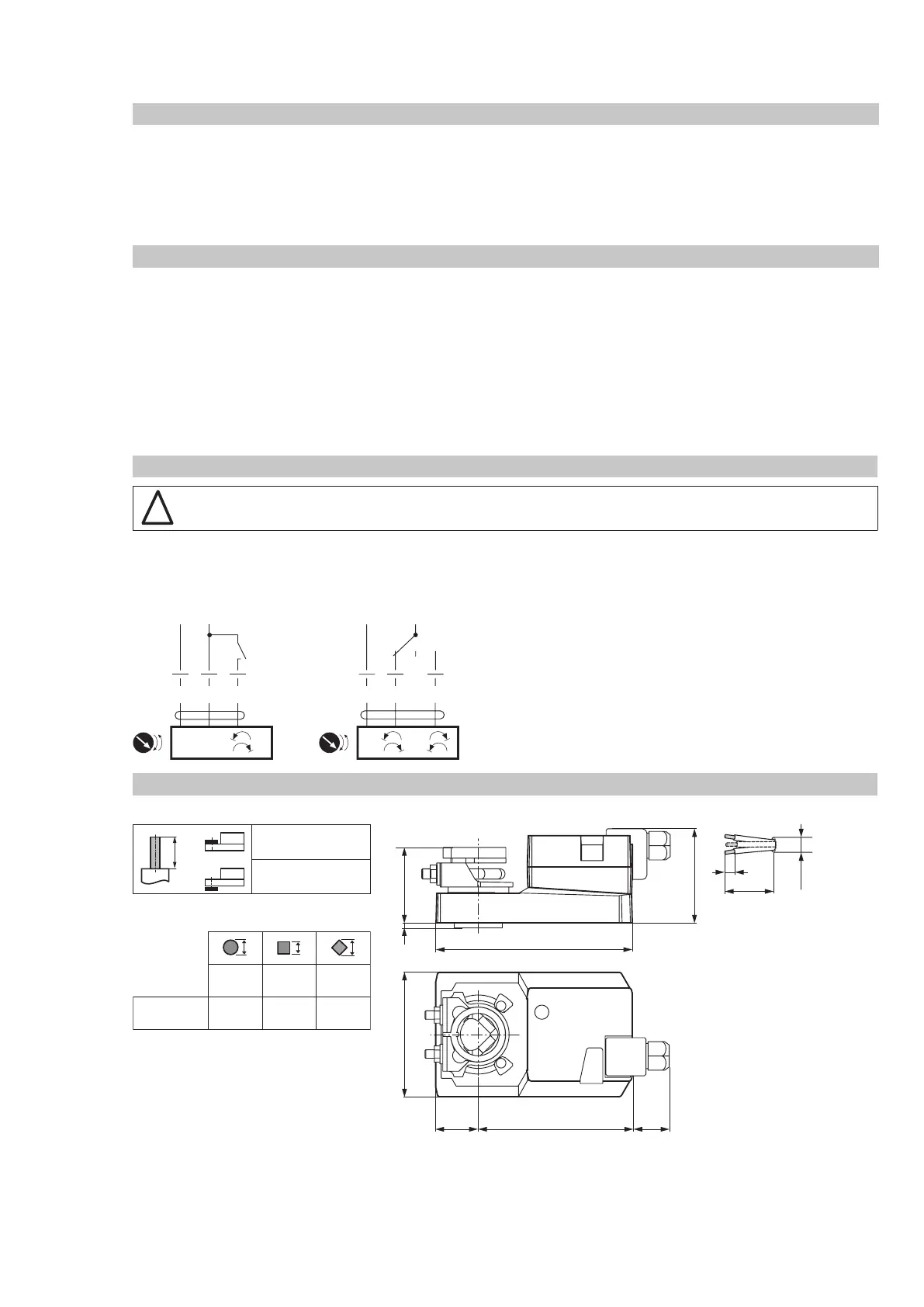

Damper actuator, Open-close, 3-point, AC/DC 24 V, 20 Nm
Safety notes
www.belimo.eu
SM24A-TP • en-gb • 2016-11-01 • subject to changes
2
Description Type
Strain relief bushing (cable sleeve) for Ø 6-8 mm, suitable for strain
relief NG
43235-00002
Cable sleeve for Ø 8-10 mm, suitable for strain relief NG 43235-00003
Electrical installation
!
Notes • Connection via safety isolating transformer.
• Parallel connection of other actuators possible. Observe the performance data.
Wiring diagrams
AC/DC 24 V, open-close AC/DC 24 V, 3-point
1
23
1
0
–
+
T
~
1
0
1
23
0
1
0
–
+
T
~
1
0
Dimensions [mm]
Spindle length
L
Min. 48
Min. 20
Clamping range
12...20
CrNi (INOX)
≥10 ≤20
10...20 ≥10 ≤20
With utilisation of a round spindle made of CrNi
(INOX): Ø 12...20 mm
Dimensional drawings
~35
72
6
4
...
10
35
10930
88
139
58
4
SM24A-TP
Damper actuator, Open-close, 3-point, AC/DC 24 V, 20 Nm
Accessories
www.belimo.eu
SM24A-TP • en-gb • 2016-11-01 • subject to changes
3
