EC TOWER TECHNICAL MANUAL

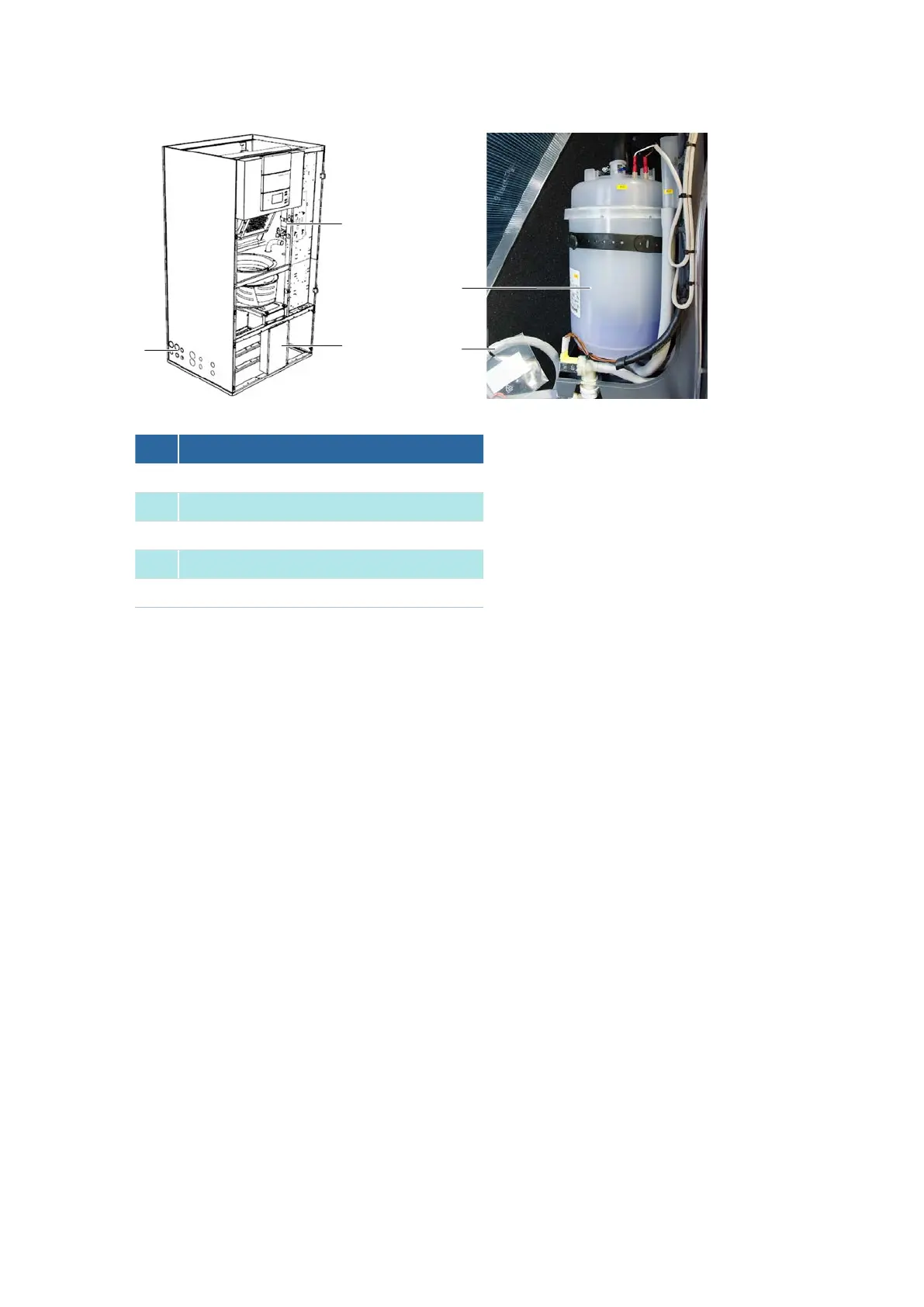

No. Description
1 Holes for connections
2 Steam humidifier
3 Junction box 2
4 Steam cylinder
5 Hose for water connection
1
2
3
5
4
5. On the steam humidifier, route the hose for the water connection through the hole and downward inside
the EC Tower.
6. Route and install a copper pipe (provided by the customer, Ø 1/2”) for the water connection into the EC
Tower via the opening.
- Alternatively, you may use different pressure and pulsation-resistant pipe materials.
7. Install a stop valve with at-sealing G 3/4” thread at the end of the copper pipe.
- Make sure that the feed water pipe (copper pipe and hose for water connection) is free from dirt.
8. Connect the water connection hose to the stop valve.
9. Fit the left and right-hand cover panels.
10. Fit the lower front panel.
11. Fit the central front panel.
12. Close the door of junction box 1 using the supplied triangular socket wrench.
