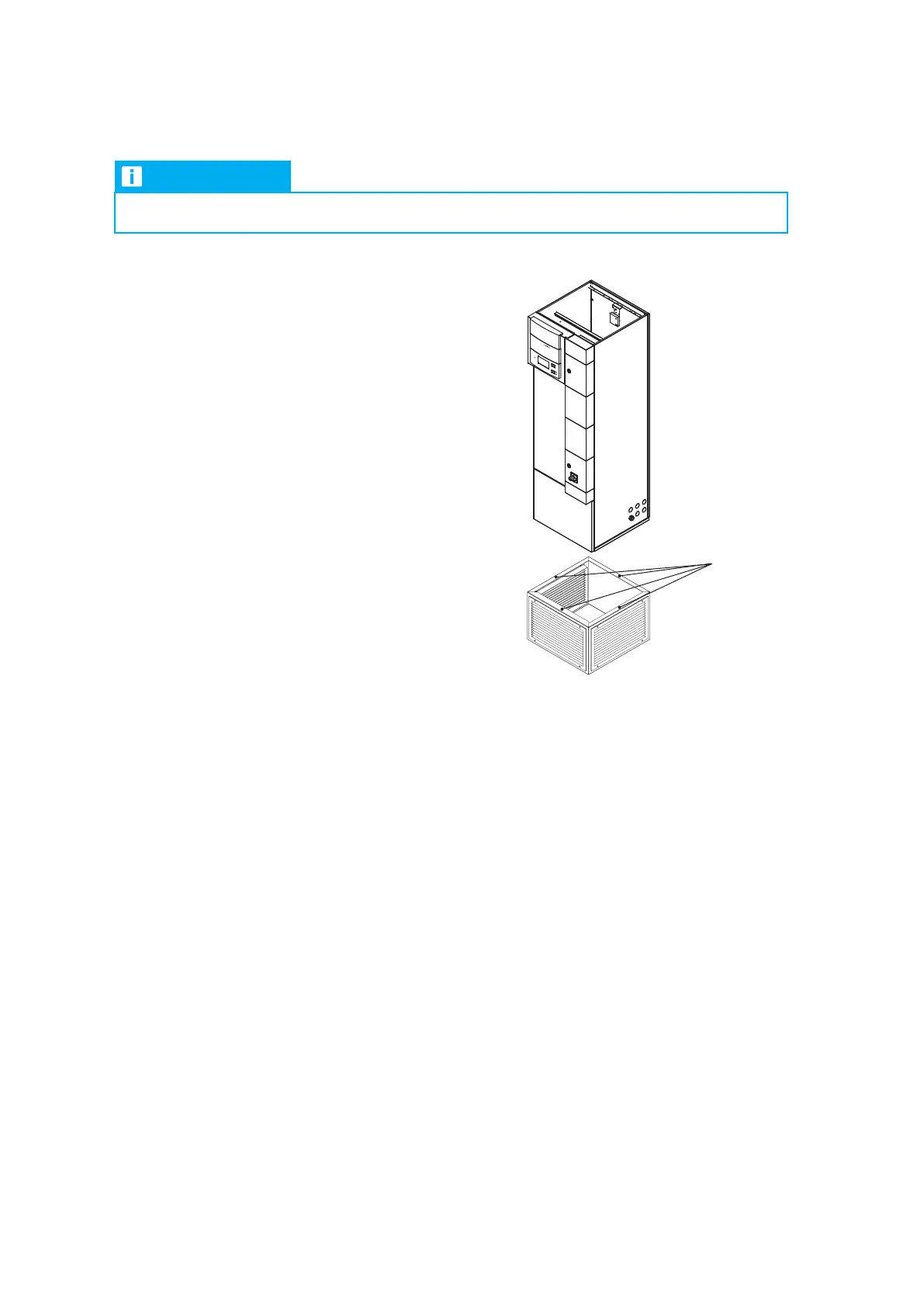

Procedure
1. Fit suitable sealing tape on the contact surfaces
(1) of the blow-out plinth.
2. Position and align the blow-out plinth with the
installation location of the air conditioning unit.
3. Place the air conditioning unit on the blow-out
plinth.
4. Screw the air conditioning unit and blow-out
plinth together.
5.
- If you wish to direct the airflow in one direc-
tion, open the fins on the appropriate side.
Close the fins on the two other sides.
plenum.
1
EC Tower
51-5670-16 ECTower_Vorlage.indd 1
03.08.16 16:31
Installation
NOTE
Installation must be performed by at least two persons.
