9-14 SPARCclassic/SPARCclassic X/SPARCstation LX Service Manual • November 1993

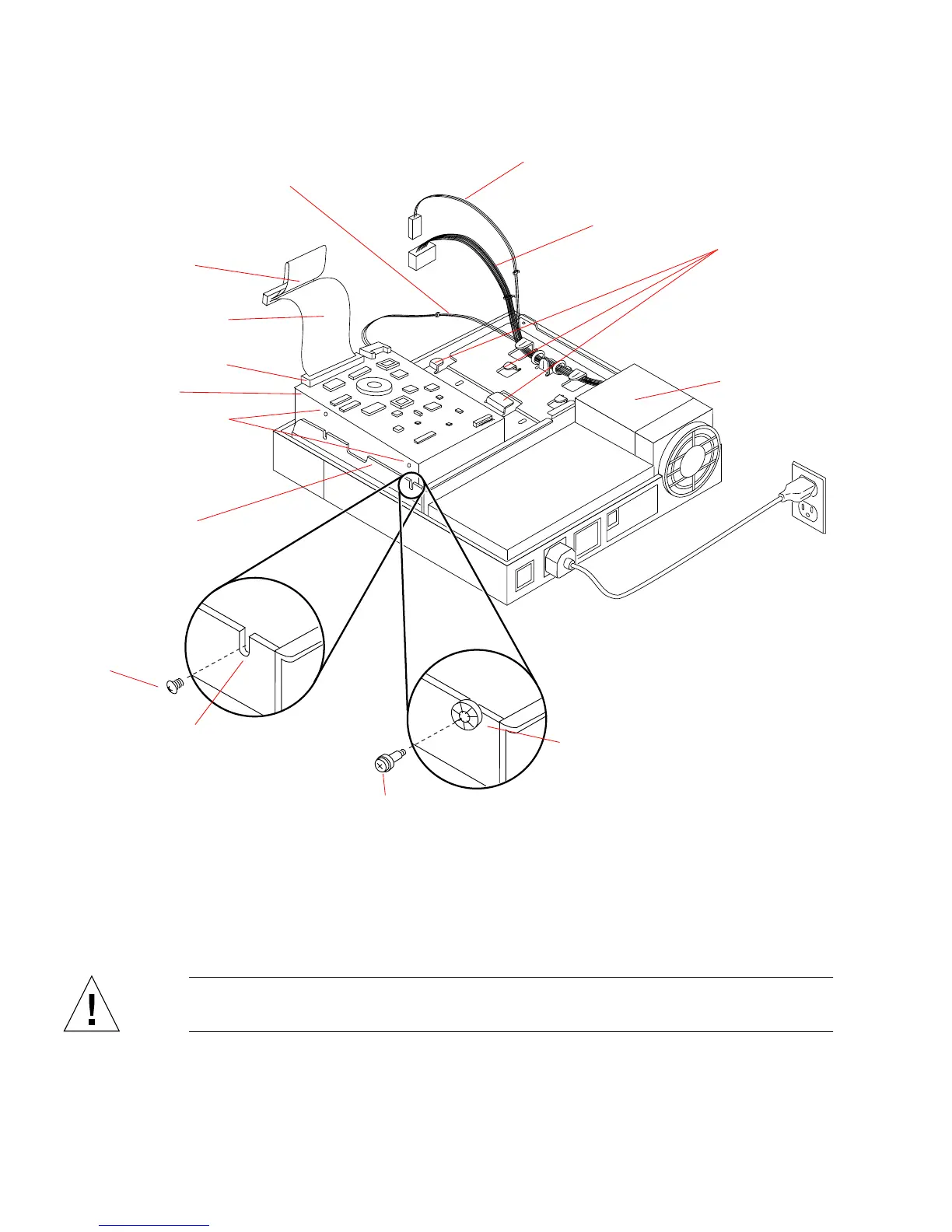

FIGURE 9-10 Installing a Hard Disk Drive
6. Attach the hard drive data cable to the data cable connector on the disk drive.
The location of the data connector on the disk drive is shown in
FIGURE 9-10. The
data cable connector is keyed to fit only one way.
Caution – Carefully align the connector pins with the socket to avoid damaging the
pins. Do not force the connection.
Hard drive data cable
Hard drive
power cable
Hard disk drive
Disk drive mounting bracket
Disk drive screw holes
Main logic
Keyboard soft
power-on cable
Cable
Power supply
UNIT TOP
power cable
management
guides
If the mounting bracket has
no grommets, follow step 3.
If the mounting bracket has
grommets, follow step 4.
Shoulder screw
Pull tab
Data cable connector
S
tandard screw
