B-8 SPARCclassic/SPARCclassic X/SPARCstation LX Service Manual • November 1993
B.8 Parallel Connector

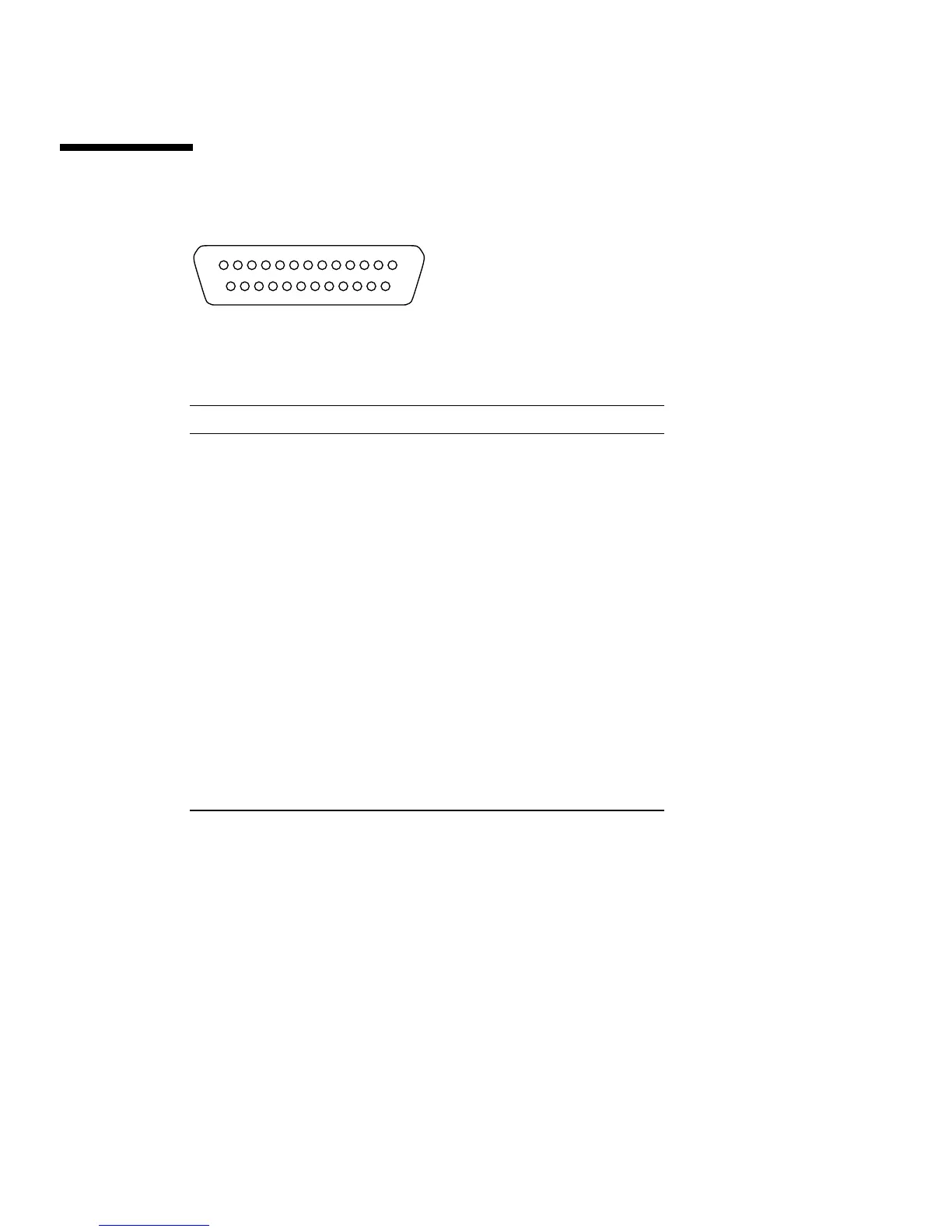

FIGURE B-8 Parallel Connector
TABLE B-8 Pinout for Parallel Connector
Pin Description Pin Description
1 Strobe 14 AutoFxDt
2 Data 0 (LSB) 15 Error
3 Data 1 16 Init
4 Data 2 17 SlctIn
5 Data 3 18 Ground
6 Data 4 19 Ground
7 Data 5 20 Ground
8 Data 6 21 Ground
9 Data 7 22 Ground
10 Ack 23 Ground
11 Busy 24 Ground
12 PE 25 Ground
13 Slct
113
25 14
