12-2 SPARCclassic/SPARCclassic X/SPARCstation LX Service Manual • November 1993

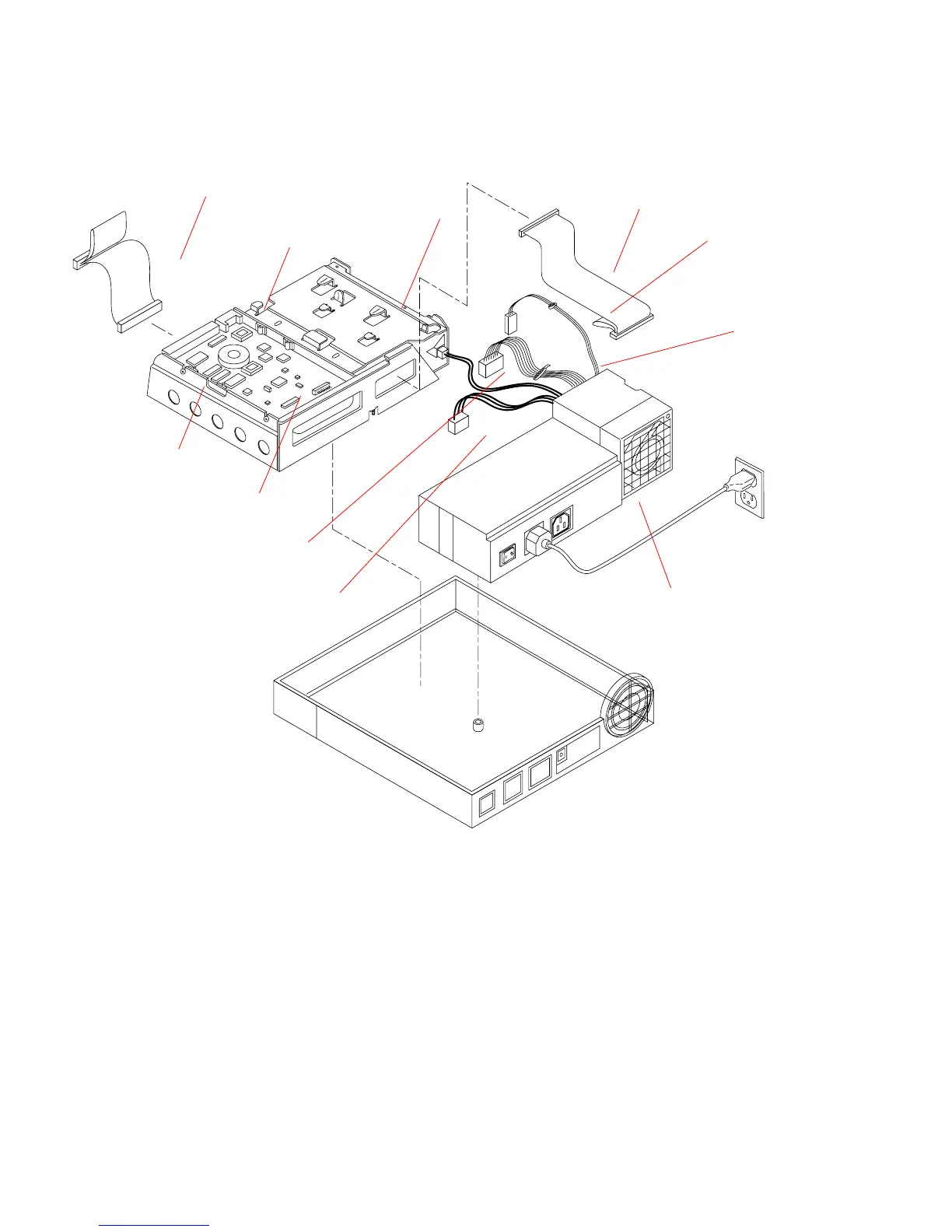

FIGURE 12-1 Exploded View of the Unit Top
Hard drive
Hard drive
Diskette drive
Drive mounting
Hard disk drive
Diskette drive
Power supply
Main logic
Diskette drive
Hard drive
Keyboard soft
data cable
power connect
data cable
power cable
power cable
power cable
power-on cable
(hidden)
bracket
