Chapter 12 Illustrated Parts Breakdown 12-3

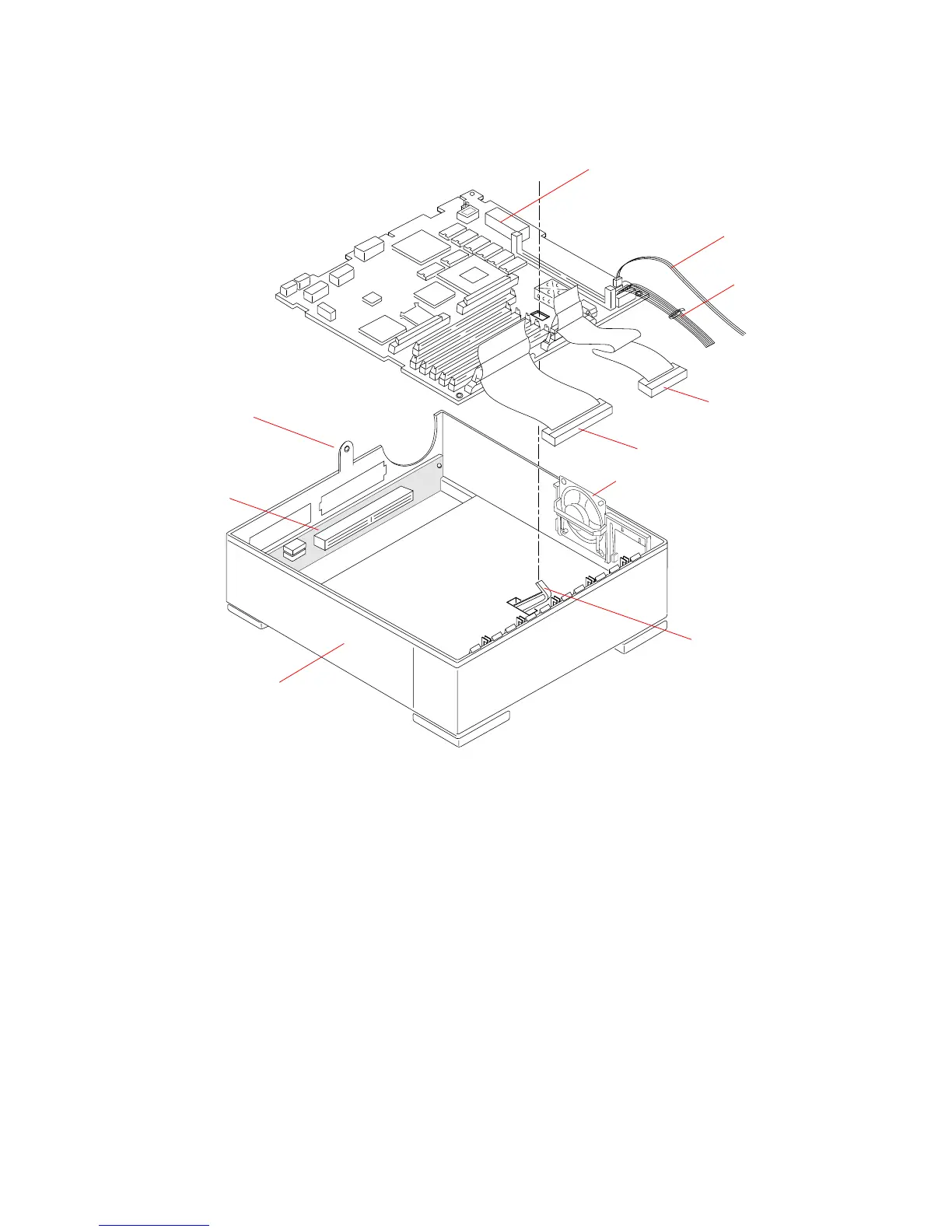

FIGURE 12-2 Exploded View of the Unit Bottom
Security loop
UNIT BOTTOM
System I/O board
Internal speaker and
Hard drive data cable
Diskette drive
data cable
Keyboard soft
NVRAM/TOD
Main logic board
power LED assembly
Main logic
power cable
power-on cable
extractor lever
