Appendix B System Connectors B-11
This connector is used to connect external sound sources such as a compact disc
player or cassette tape player to the system.
B.12 SCSI Connector (Internal)

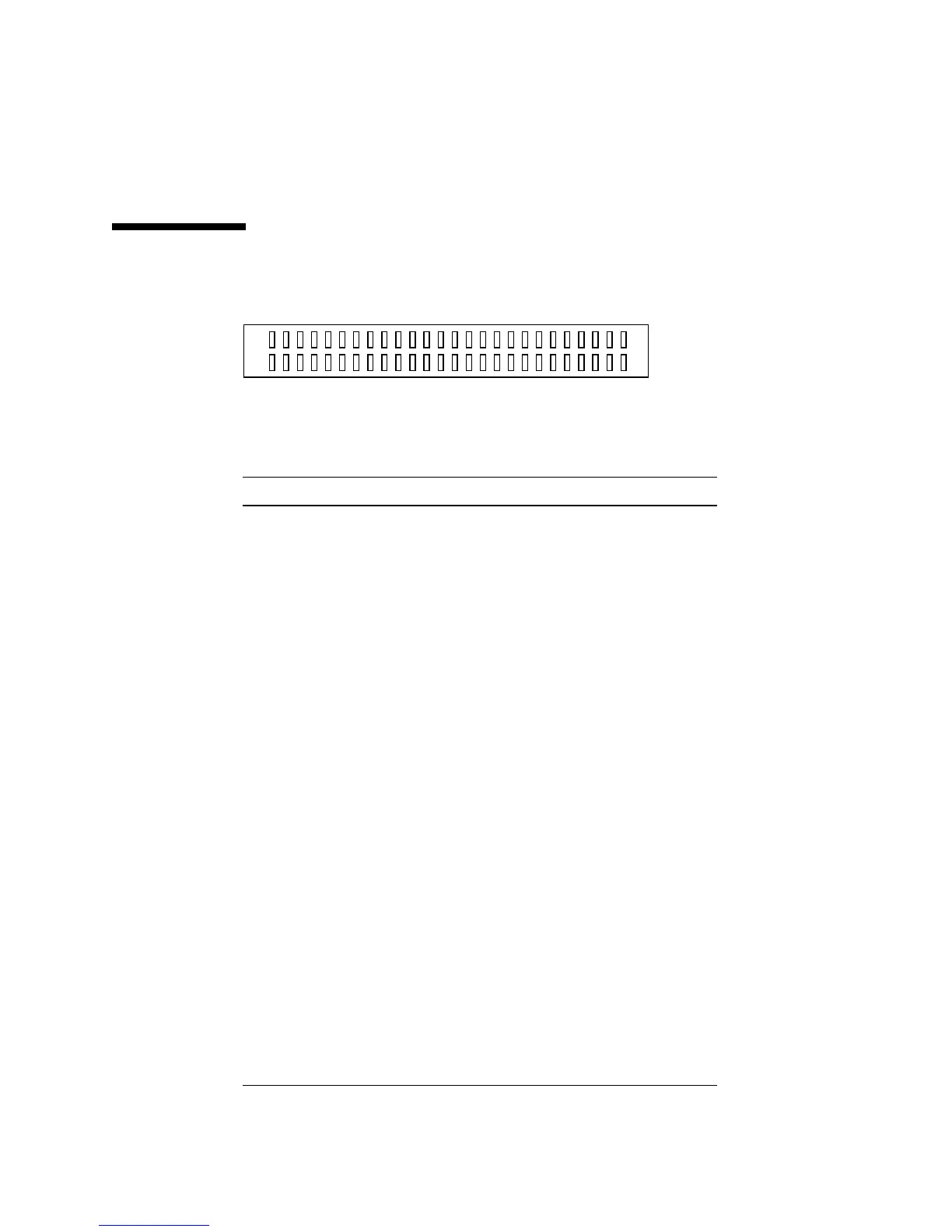

FIGURE B-13 Internal SCSI Connector
TABLE B-11 Pinout for Internal SCSI Connector
Pin Description Pin Description
1 Ground 26 +5 VDC
2 sd0* 27 N/C
3 Ground 28 N/C
4 sd1* 29 Ground
5 Ground 30 Ground
6 sd2* 31 Ground
7 Ground 32 atn*
8 sd3* 33 Ground
9 Ground 34 N/C
10 sd4* 35 Ground
11 Ground 36 bsy*
12 sd5* 37 Ground
13 Ground 38 ack*
14 sd6* 39 Ground
15 Ground 40 rst*
16 sd7* 41 Ground
17 Ground 42 msg*
18 sdp* 43 Ground
19 Ground 44 sel*
20 Ground 45 Ground
50
25
26
1
