B-2 SPARCclassic/SPARCclassic X/SPARCstation LX Service Manual • November 1993
B.1 Attachment Unit Interface (AUI)
Connector

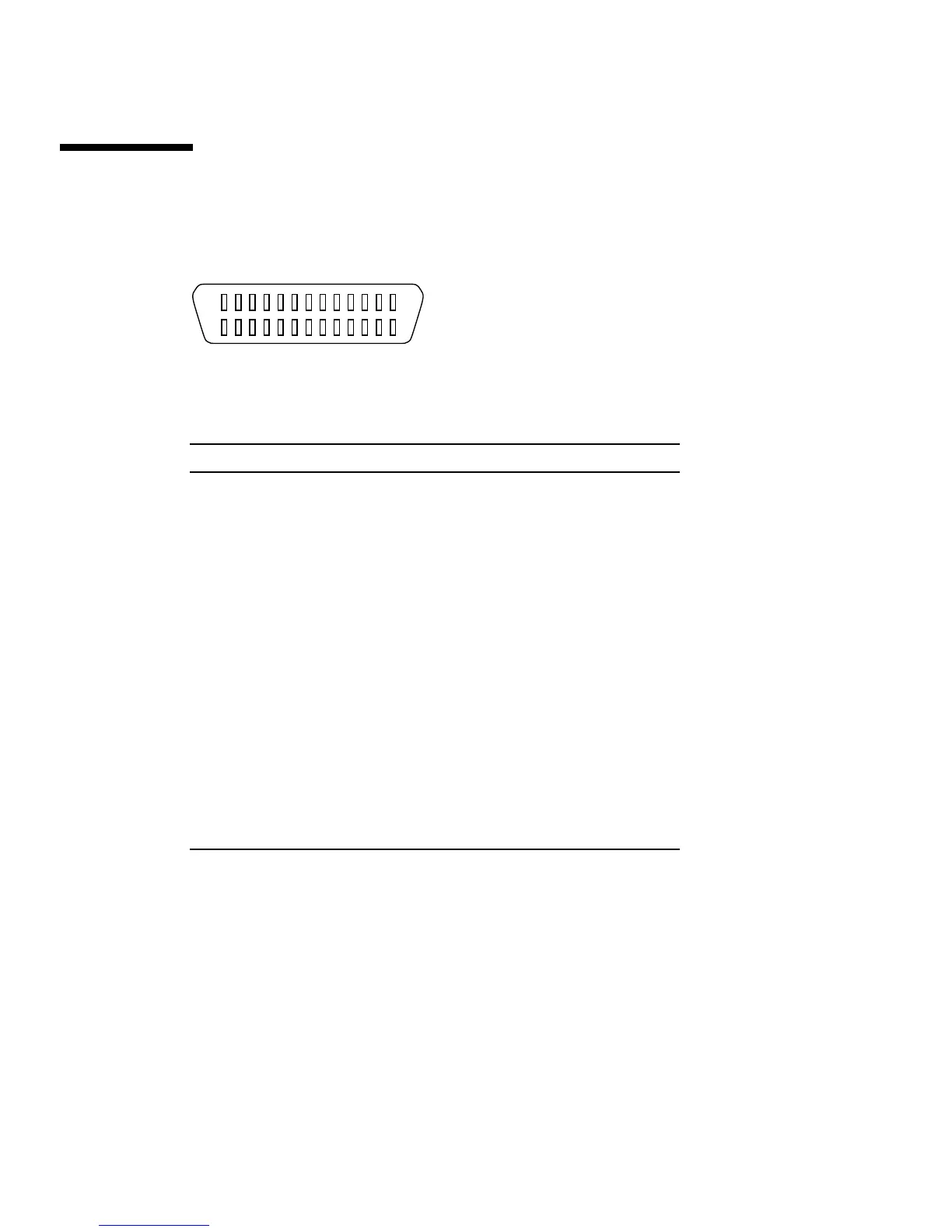

FIGURE B-1 Attachment Unit Interface (AUI) Connector
TABLE B-1 Pinout for Attachment Unit Interface (AUI) Connector
Pin Description Pin Description
1 AUI_DO_L 14 AUI_DO
2 AUI_DI 15 AUI_DI_L
3 AUI_CI_L 16 AUI_CI
4 ENET_PWR 17 GND
5 EMCTL 18 RESET_SENSE_L
6 CHIDX 19 CHIDR
7 CHI_CLK 20 CHIDFS
8 CODFS 21 CODCK
9 N/C 22 N/C
10 Vcc 23 GND
11 Vcc 24 GND
12 Codec_PWR_DN_L 25 MIDI_OUT
13 MIDI_IN 26 MIDI_IN_L
113
26 14
