Appendix B System Connectors B-9
B.9 13W3 Video Connector

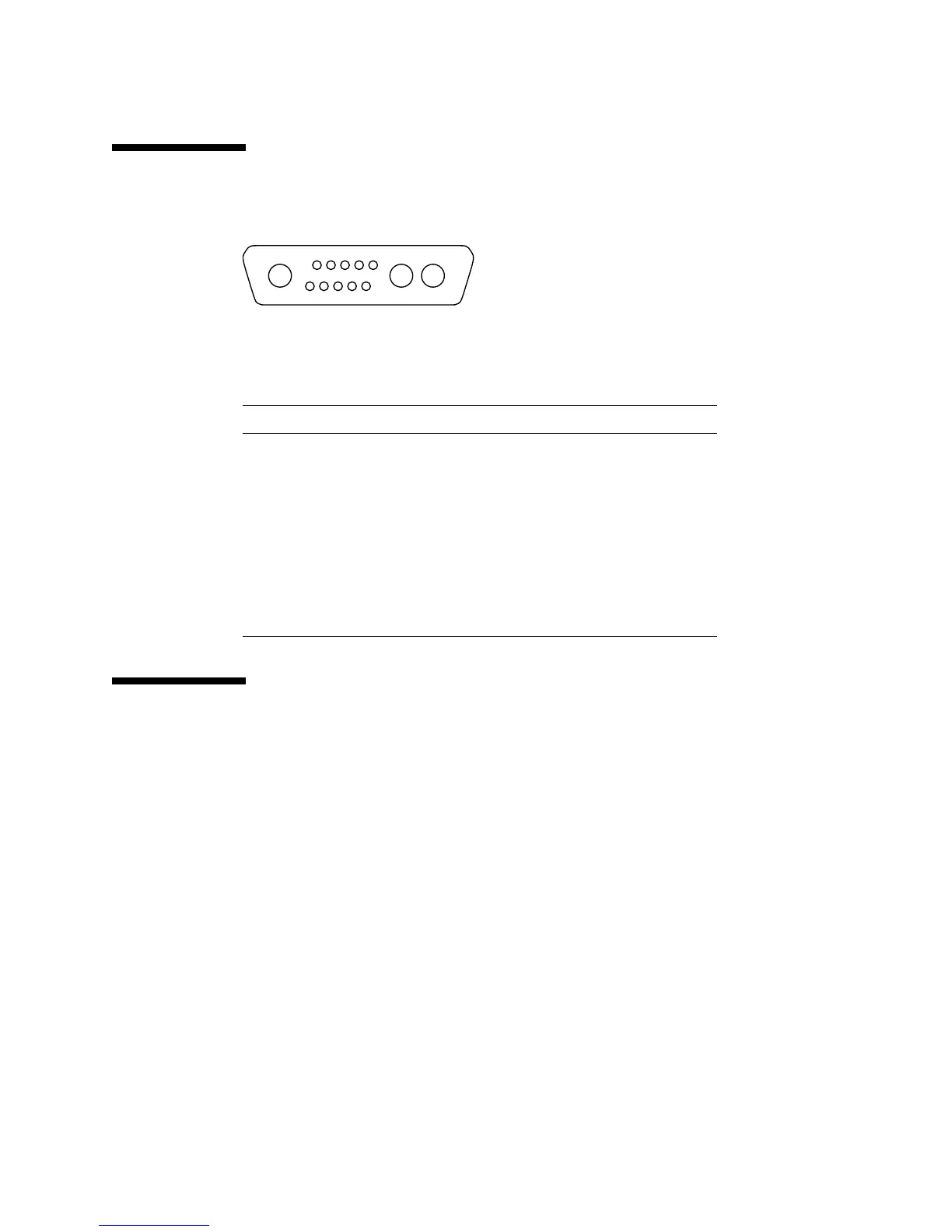

FIGURE B-9 13W3 Video Connector
B.10 Audio Ports and Audio Module
B.10.1 Audio Ports
The audio ports are on all models with the SPARCclassic/SPARCclassic X/
SPARCstation LX system board (on the SPARCclassic X terminal the ports are
covered and inactive). Section B.11 “Signals for the Audio Ports gives the signals for
the audio ports.
TABLE B-9 Pinout for 13W3 Video Connector
Pin Description Pin Description
A1 Video-Red 5 Composite Sync
A2 Video-Green 6 Ground
A3 Video-Blue 7 Ground
1 Ground 8 Sense(1)
2 Ground 9 Sense(0)
3 Sense(2) 10 Ground
4 Ground
A1 A2 A3
15
610
