B-6 SPARCclassic/SPARCclassic X/SPARCstation LX Service Manual • November 1993
B.6 SCSI Connector (External)

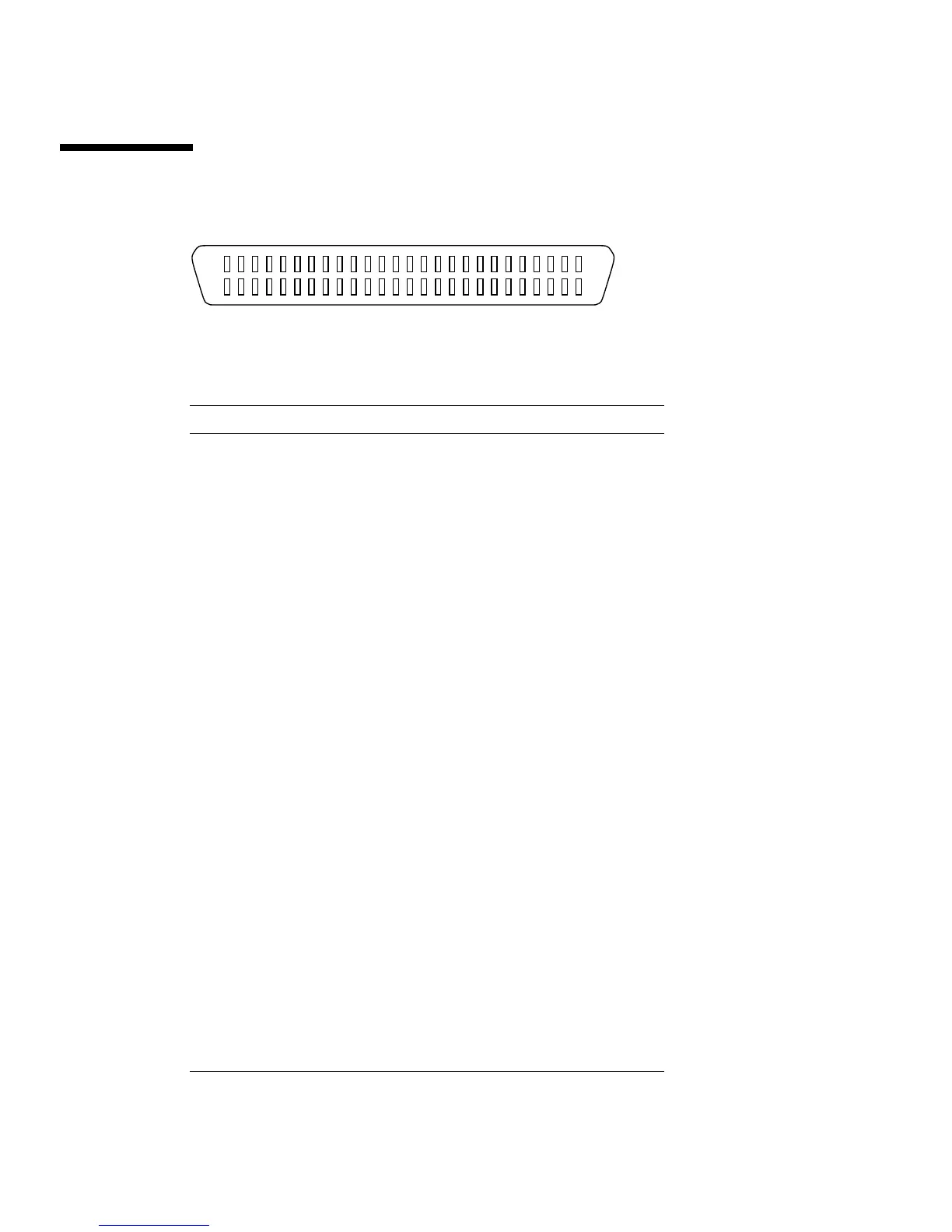

FIGURE B-6 External SCSI Connector
TABLE B-6 Pinout for External SCSI Connector
Pin Description Pin Description
1 Ground 26 sd0*
2 Ground 27 sd1*
3 Ground 28 sd2*
4 Ground 29 sd3*
5 Ground 30 sd4*
6 Ground 31 sd5*
7 Ground 32 sd6*
8 Ground 33 sd7*
9 Ground 34 sdp*
10 Ground 35 Ground
11 Ground 36 Ground
12 N/C 37 N/C
13 N/C 38 TermPWR
14 N/C 39 N/C
15 Ground 40 Ground
16 Ground 41 atn*
17 Ground 42 Ground
18 Ground 43 bsy*
19 Ground 44 ack*
20 Ground 45 rst*
21 Ground 46 msg*
22 Ground 47 sel*
50
25
26
1
