11-6 SPARCclassic/SPARCclassic X/SPARCstation LX Service Manual • November 1993

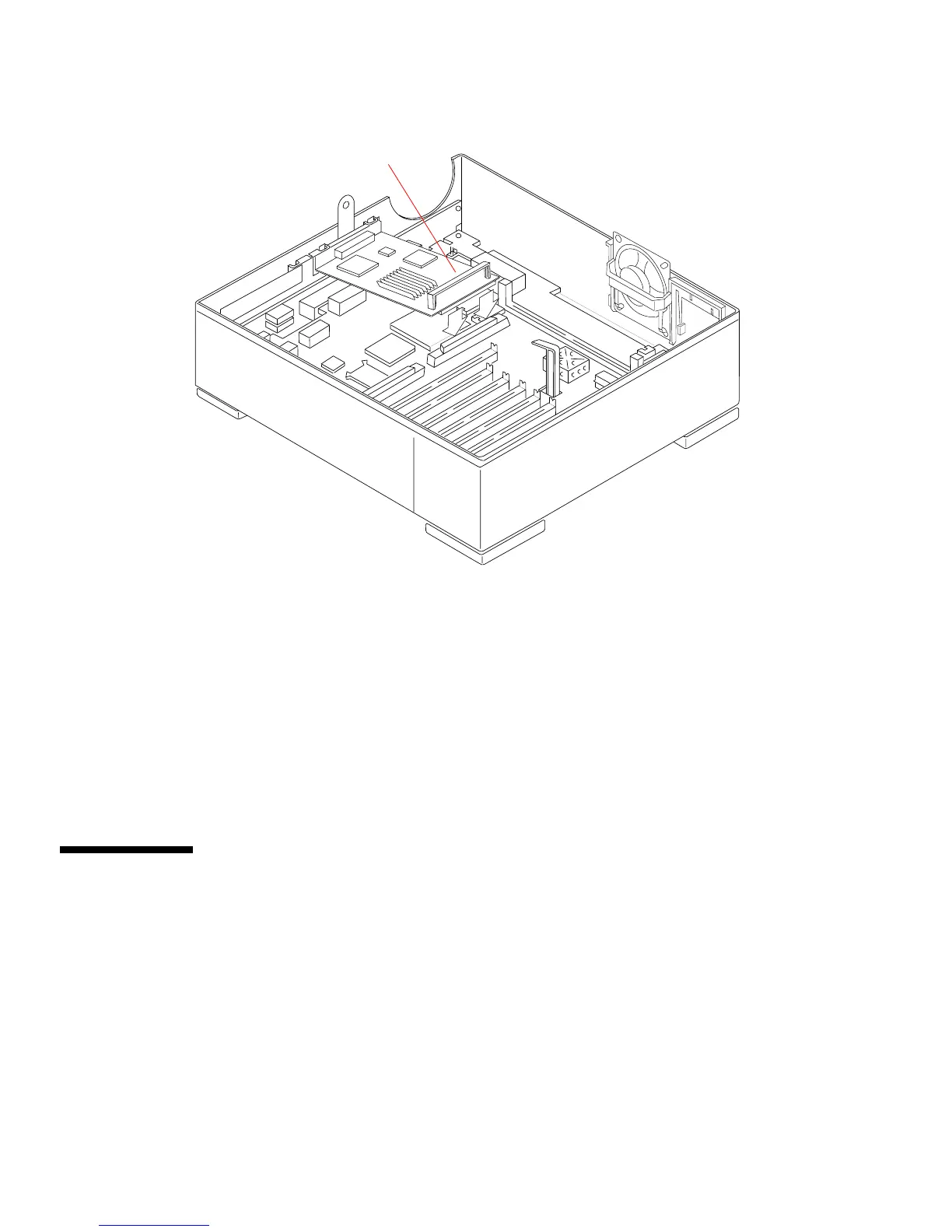

FIGURE 11-4 Connecting the SBus Card
10. Refer to Chapter 7 “Internal Access to perform the following procedures:
■ Detaching the wrist strap
■ Closing the system unit
■ Reconnecting system components
11. Refer to Chapter 6 “Power Off and On to turn the power on.
12. Refer to the guide for your SBus product to complete any required software
installation, configuration, or additional setup procedures.
11.2 Video SIMM (VSIMM)
This section describes the procedures for removing and replacing a faulty Video
SIMM. The VSIMM is an option on SPARCstation LX systems only. Complete
installation procedures can be found in Installing SPARCclassic/SPARCclassic X/
SPARCstation LX DSIMMs and VSIMMs.
Press down on corners of card.
Do not press on the plastic
SBus card retainer.
SBus card retainer
