11-32 SPARCclassic/SPARCclassic X/SPARCstation LX Service Manual • November 1993
under these conditions. Disconnect the AC power cord prior to handling the power
supply. When servicing any other system component, the AC power cord should
remain connected and poses no safety hazard.
2. Locate the NVRAM chip carrier on the main logic board.
See
FIGURE 11-19.
3. Hold the NVRAM chip carrier on both ends, and lift the chip straight up.
Gently wiggle the carrier as necessary (see
FIGURE 11-20).
4. Place it on the antistatic mat.

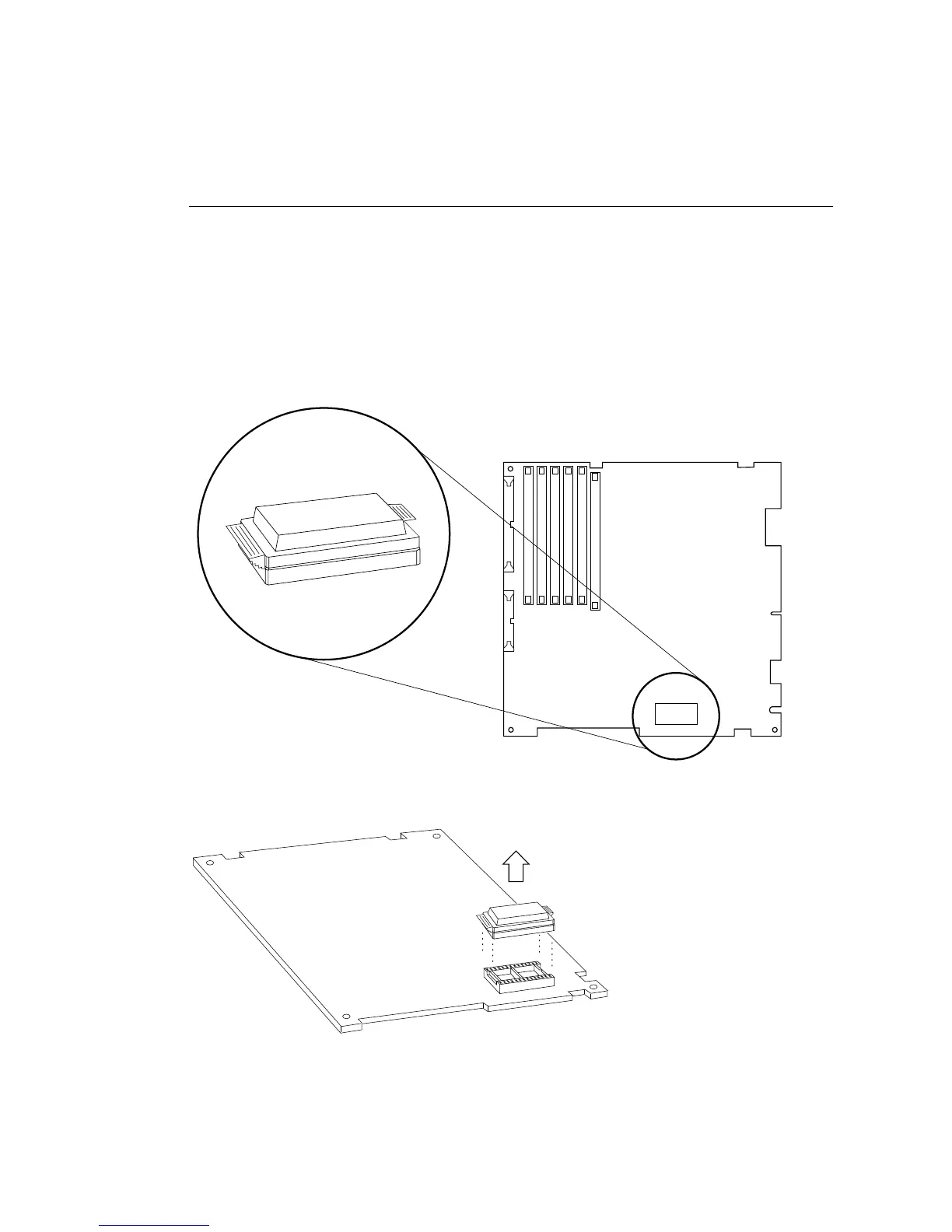

FIGURE 11-19 Locating the NVRAM
FIGURE 11-20 Removing the NVRAM
