4-4 SPARCclassic/SPARCclassic X/SPARCstation LX Service Manual • November 1993

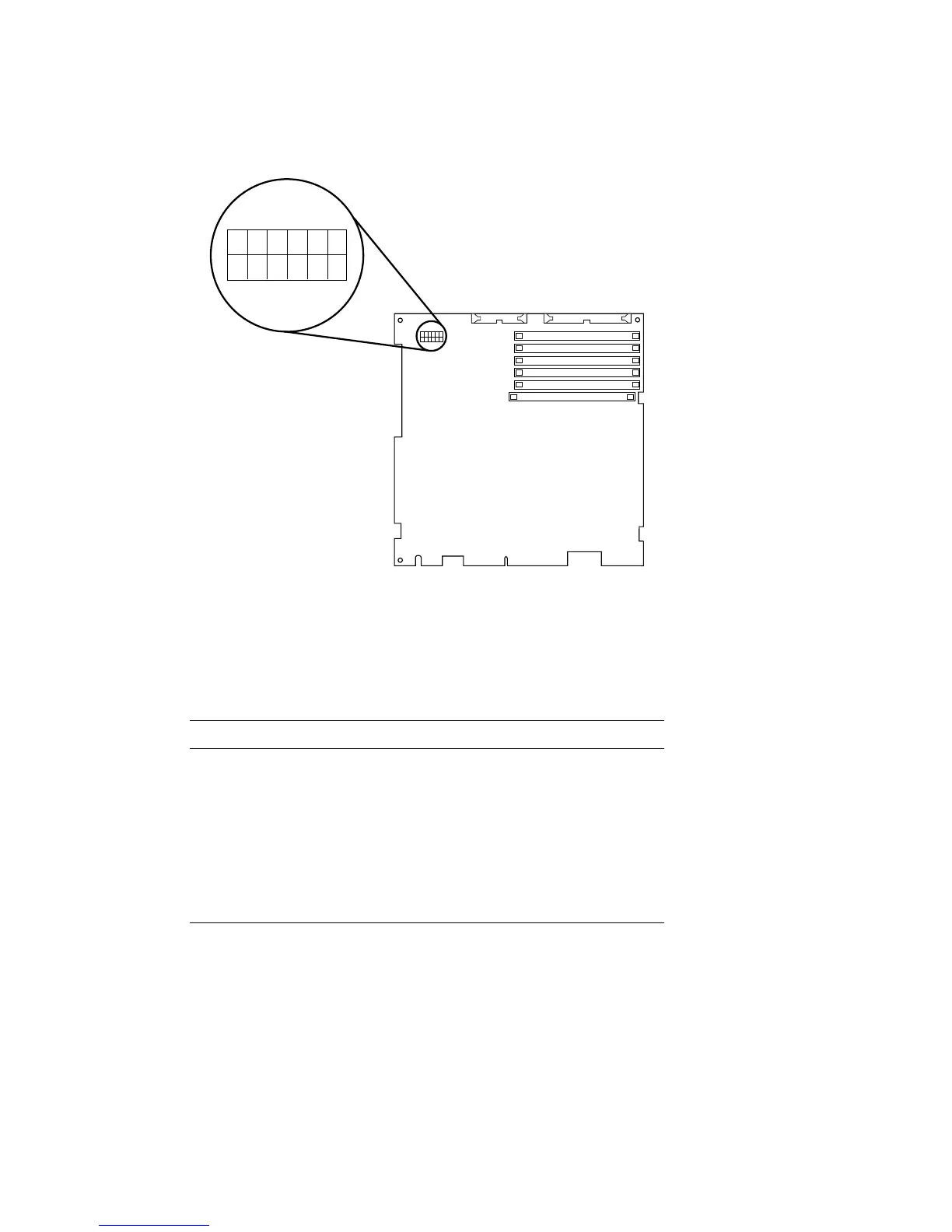

FIGURE 4-1 Power Supply Connector
TABLE 4-2 shows the pin assignments on the power supply connector.
TABLE 4-2 Power Supply Connector Pin Assignments
Pin Description Pin Description
1 +5 Vdc 7 +5 Vdc
2 +5 Vdc 8 +5 Vdc
3 Ground 9 Ground
4 Ground 10 Ground
5 +12 Vdc 11 +12 Vdc
6 POK 12 -12 Vdc
123456
789
10
11 12
