Appendix B System Connectors B-3

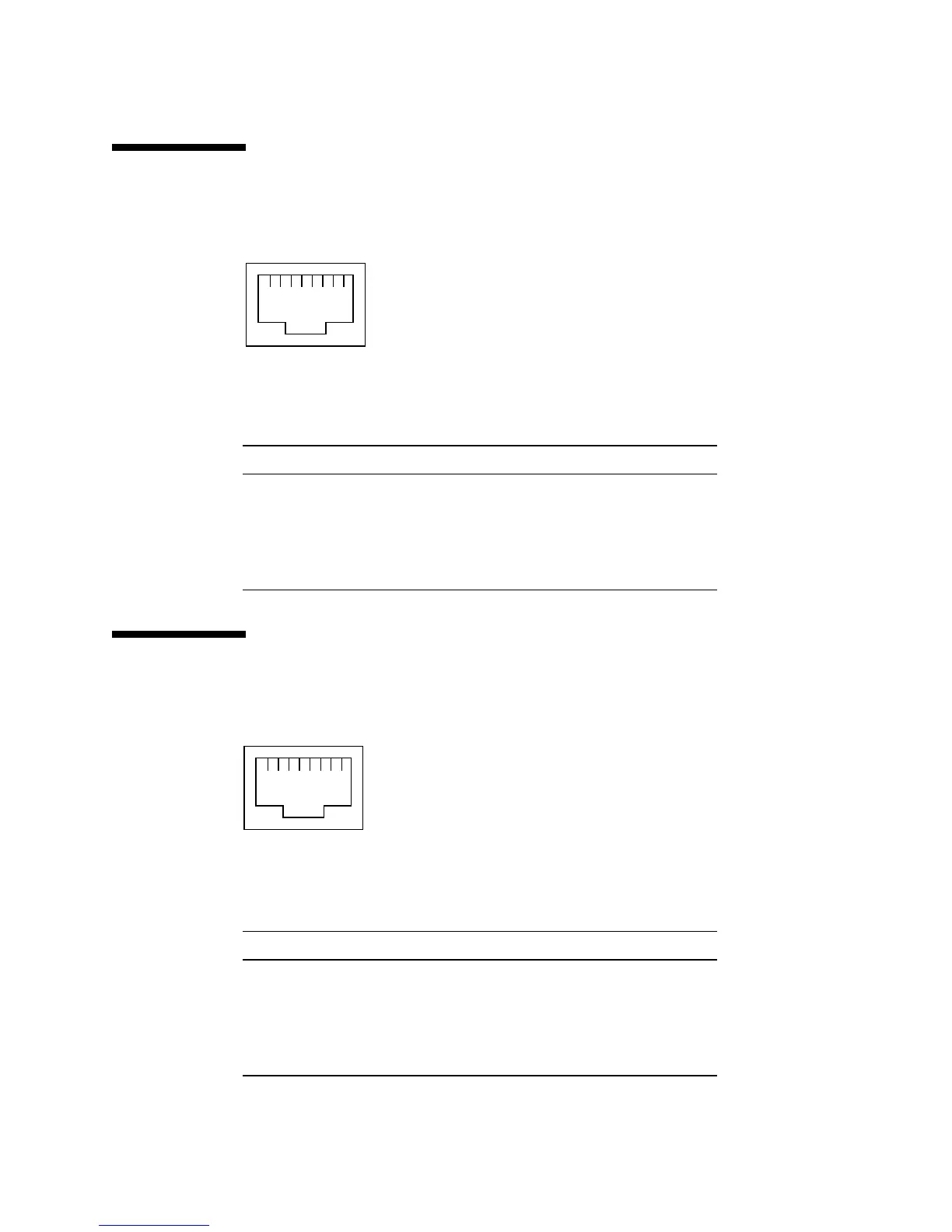

B.2 Twisted-Pair Ethernet Connector
FIGURE B-2 Twisted-Pair Ethernet Connector
B.3 ISDN Terminal Endpoint Connector
FIGURE B-3 ISDN Terminal Endpoint Connector
TABLE B-2 Pinout for Twisted-Pair Ethernet Connector
Pin Description Pin Description
1 Transmit Data + 5 N/C
2 Transmit Data - 6 Receive Data -
3 Receive Data + 7 N/C
4 N/C 8 N/C
TABLE B-3 Pinout for ISDN Terminal Endpoint Connector
Pin Description Pin Description
1 PS1 5 Receive Data -
2 PS1- 6 Transmit Data -
3 Transmit Data + 7 PS2-
4 Receive Data + 8 PS2
