11-12 SPARCclassic/SPARCclassic X/SPARCstation LX Service Manual • November 1993

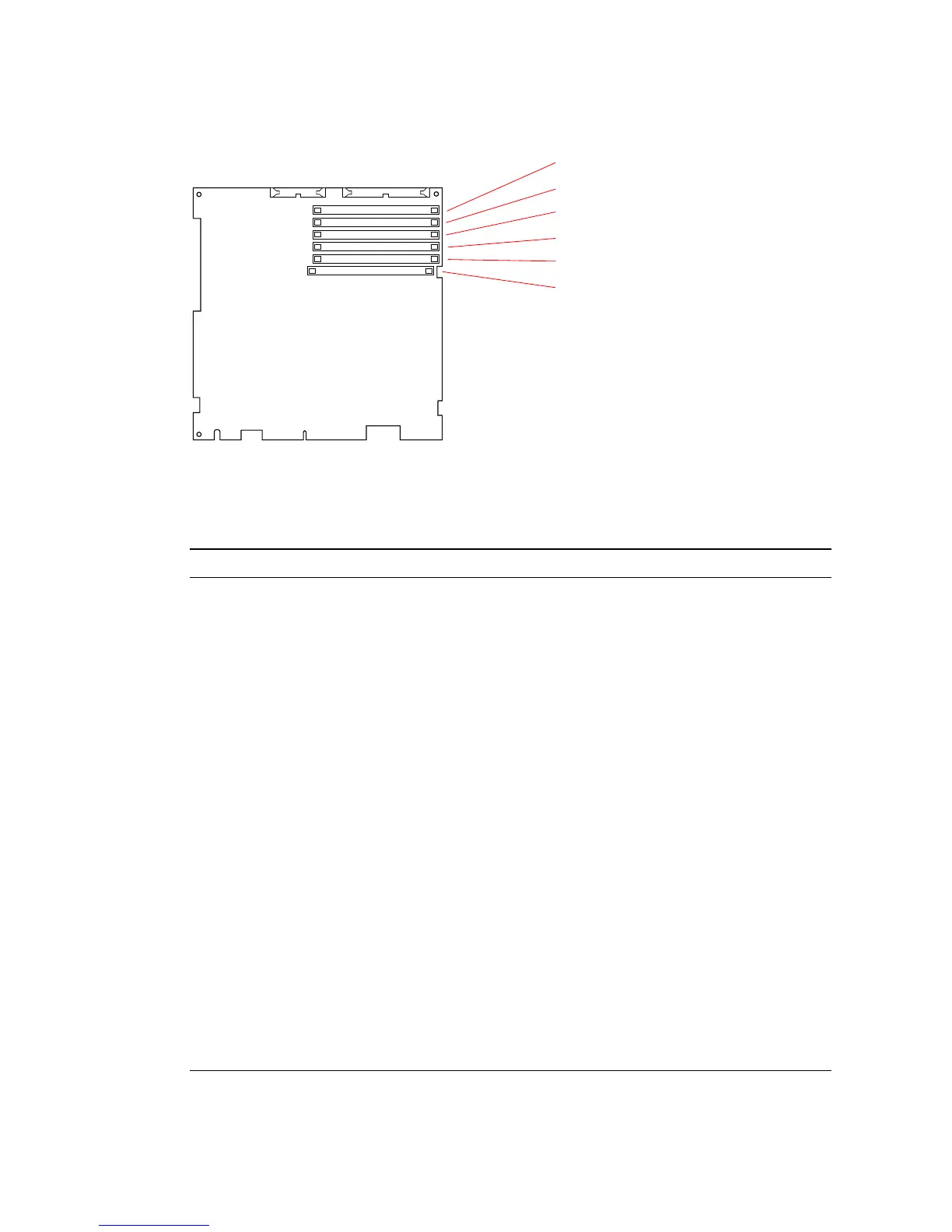

FIGURE 11-9 DSIMM Slot Locations
TABLE 11-1 Memory Configuration Matrix—SPARCclassic X Terminal
Total Slot Slot Slot Slot Slot Slot
Memory U0304 U0301 U0402 U0303 U0302 U0401
8MB 1MB 1MB 2MB 1MB 1MB 2MB
8MB 2MB 2MB — 2MB 2MB —
8MB4MB——4MB——
12 MB 1 MB 1 MB 4 MB 1 MB 1 MB 4 MB
12 MB 2 MB 4 MB — 2 MB 4 MB —
12 MB 2 MB 2 MB 2 MB 2 MB 2 MB 2 MB
16 MB 2 MB 2 MB 4 MB 2 MB 2 MB 4 MB
16 MB 4 MB 4 MB — 4 MB 4 MB —
20 MB 2 MB 4 MB 4 MB 2 MB 4 MB 4 MB
24 MB 4 MB 4 MB 4 MB 4 MB 4 MB 4 MB
32 MB 16 MB — — 16 MB — —
36 MB 1 MB 1 MB 16 MB 1 MB 1 MB 16 MB
36 MB 2 MB 16 MB — 2 MB 16 MB —
40 MB 2 MB 2 MB 16 MB 2 MB 2 MB 16 MB
40 MB 4 MB 16 MB — 4 MB 16 MB —
44 MB 2 MB 4 MB 16 MB 2 MB 4 MB 16 MB
SIMM slot U0304
SIMM slot U0301
SIMM slot U0402
SIMM slot U0303
SIMM slot U0302
SIMM slot U0401
Bank 1
Bank 2
Bank 3
Bank 1
Bank 2
Bank 3
