8-14 SPARCclassic/SPARCclassic X/SPARCstation LX Service Manual • November 1993

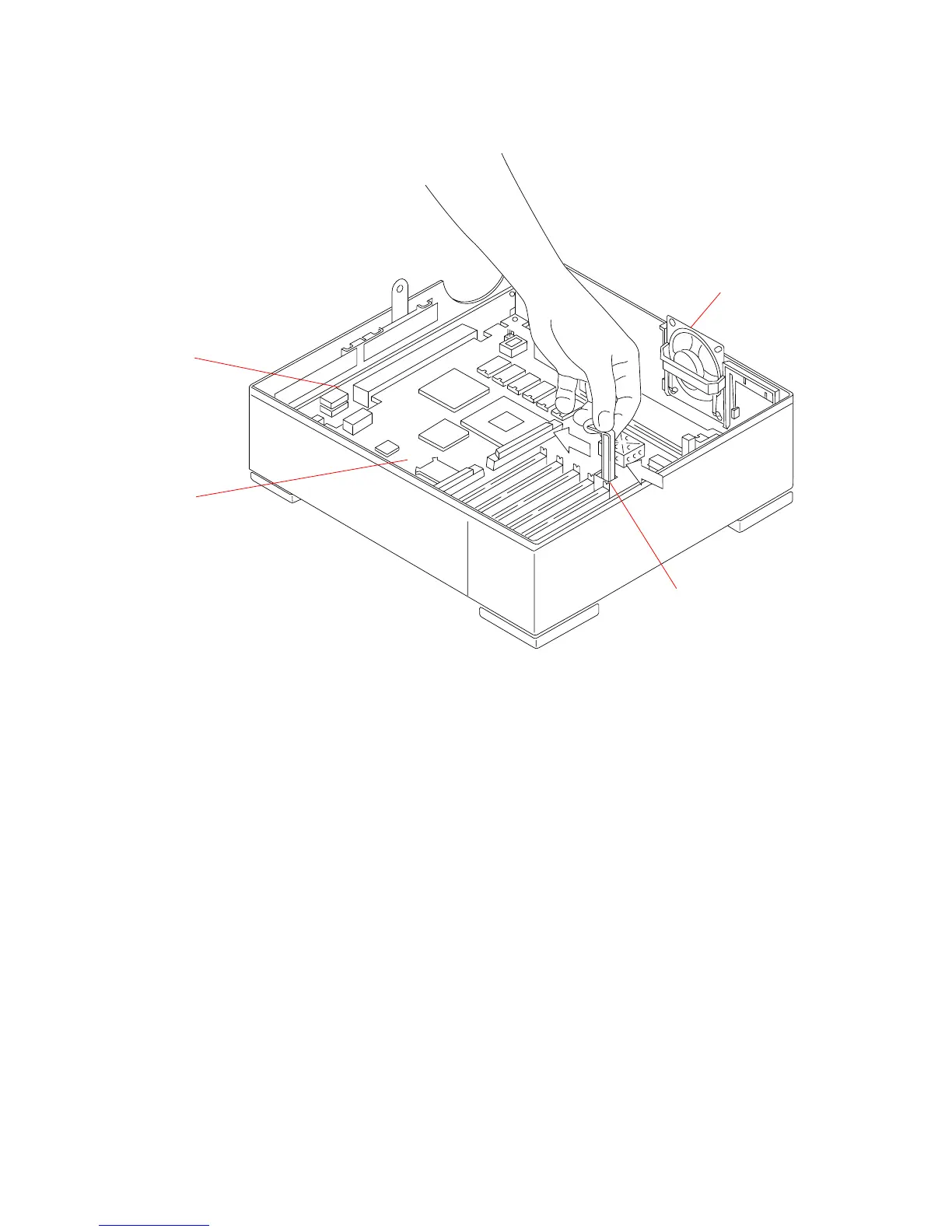

FIGURE 8-8 Plugging in the Main Logic Board
4. Reinstall any SBus cards (if applicable).
See Section 11.1.2 “Replacing SBus Cards” on page 11-4 for installation details.
5. Refer to Chapter 7 “Internal Access” to perform the following procedures:
■ Detaching the wrist strap
■ Closing the system unit
■ Reconnecting system components
6. Refer to Chapter 6 “Power Off and On to turn the power on.
System I/O board
Main logic board
Main logic board
Speaker/power
LED assembly
extractor lever
